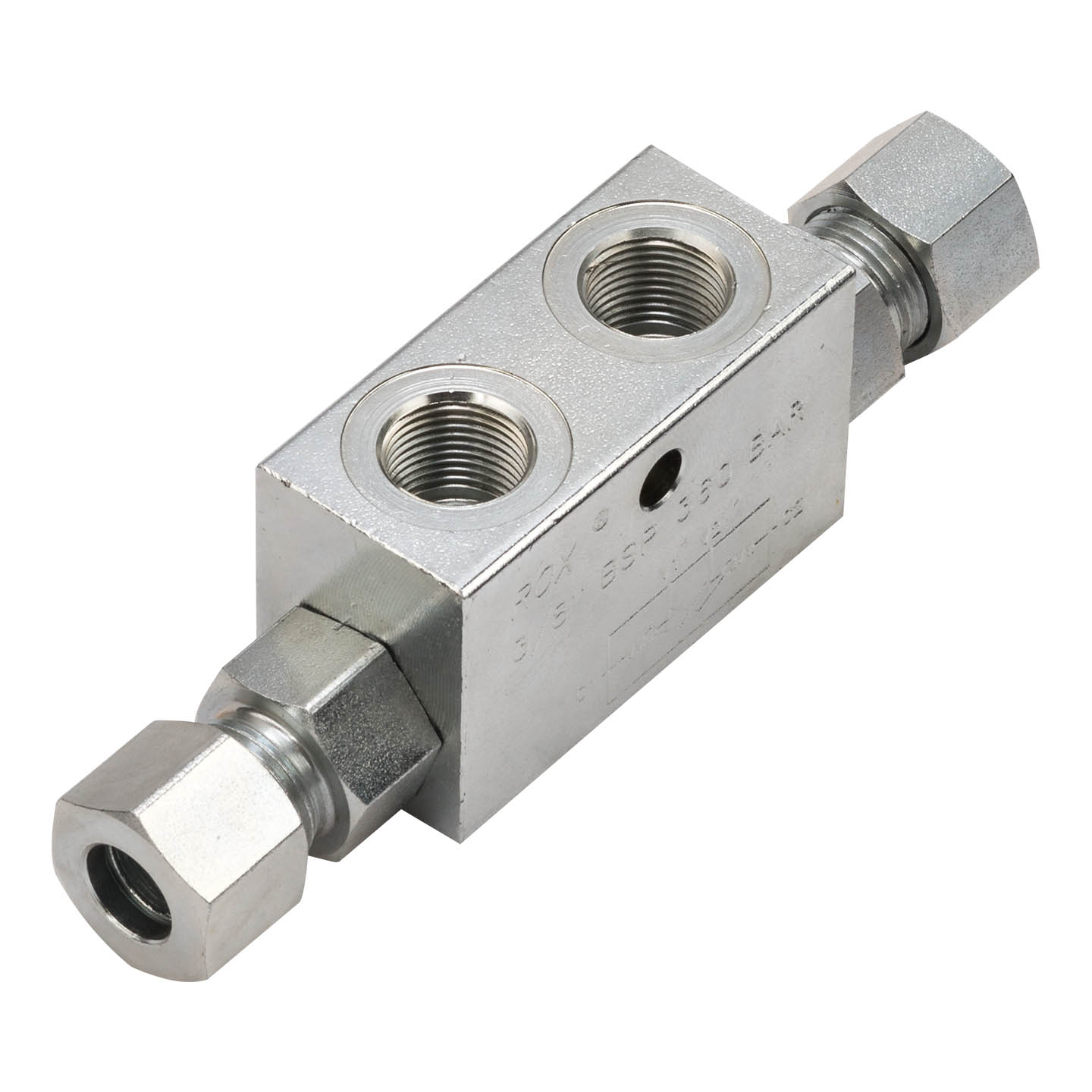

DCRX SERIES HYDRAULIC DOUBLE PILOT OPERATED CHECK VALVES

Although they are in the same range with inline check valves, DCRX Series Hydraulic Double Pilot Operated Check Valves are differnet in that they permit the valve to open normally closed direction or they provide a positive shut-off by means of a specific pilot pressure signal.
Fluid is directed towards one of the valve ports and free flow to the corresponding port. Then by moving the pilot piston the pressure opens opposite check valve and provides a return passage for fluid through the opposite check valve.
DCRX Series have excellent seal due to the heat treatment applied to internal
components.

Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating Zinc Plating (Cr III Passivation)
Heat Treatment  Internal parts
Applications Lifting equipments, cranes, platforms, concrete mixers,
  Agricultural machines.

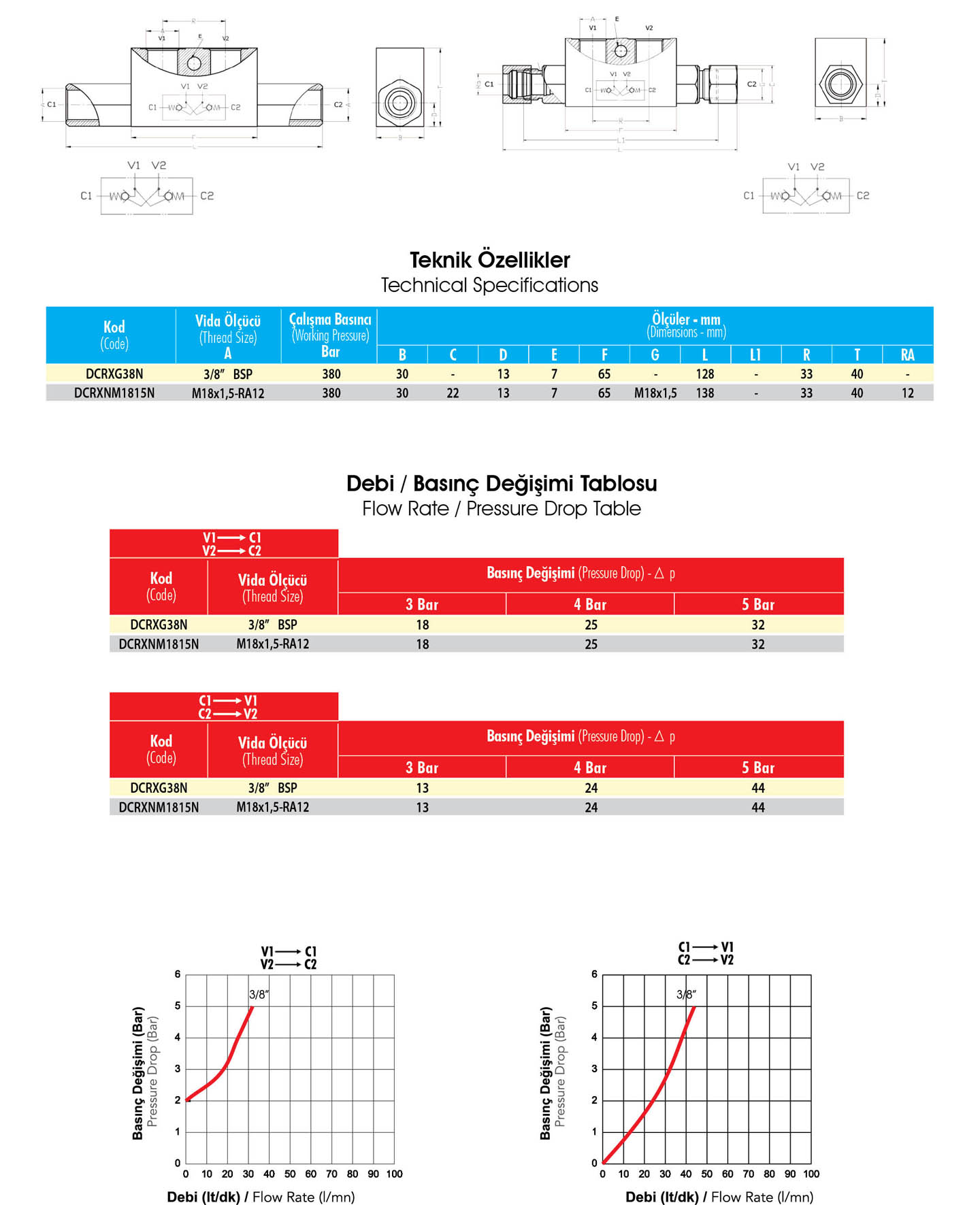

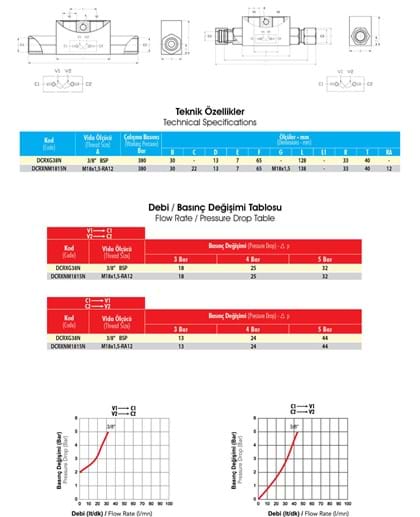

TECHNICAL DATA
PHOTOS
