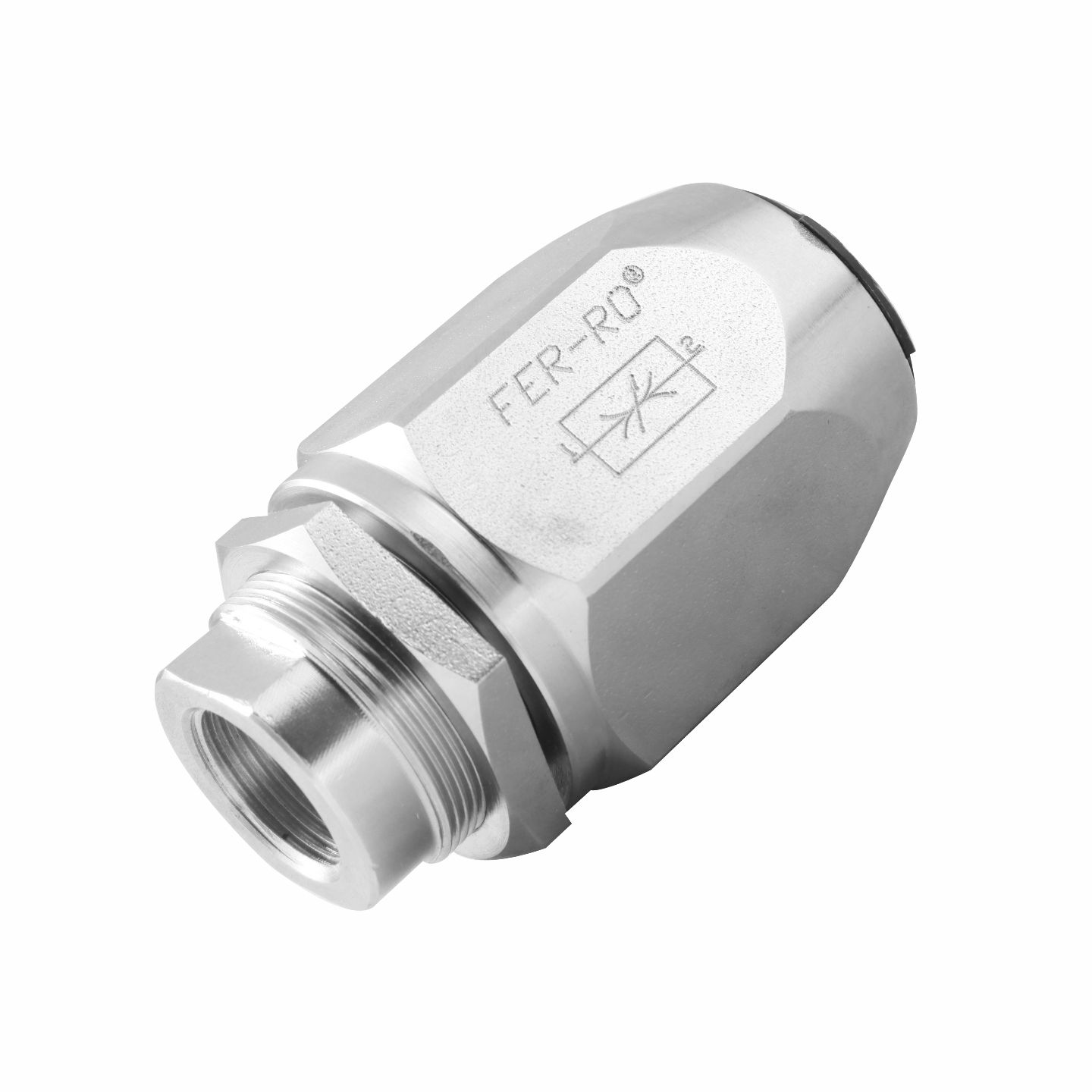

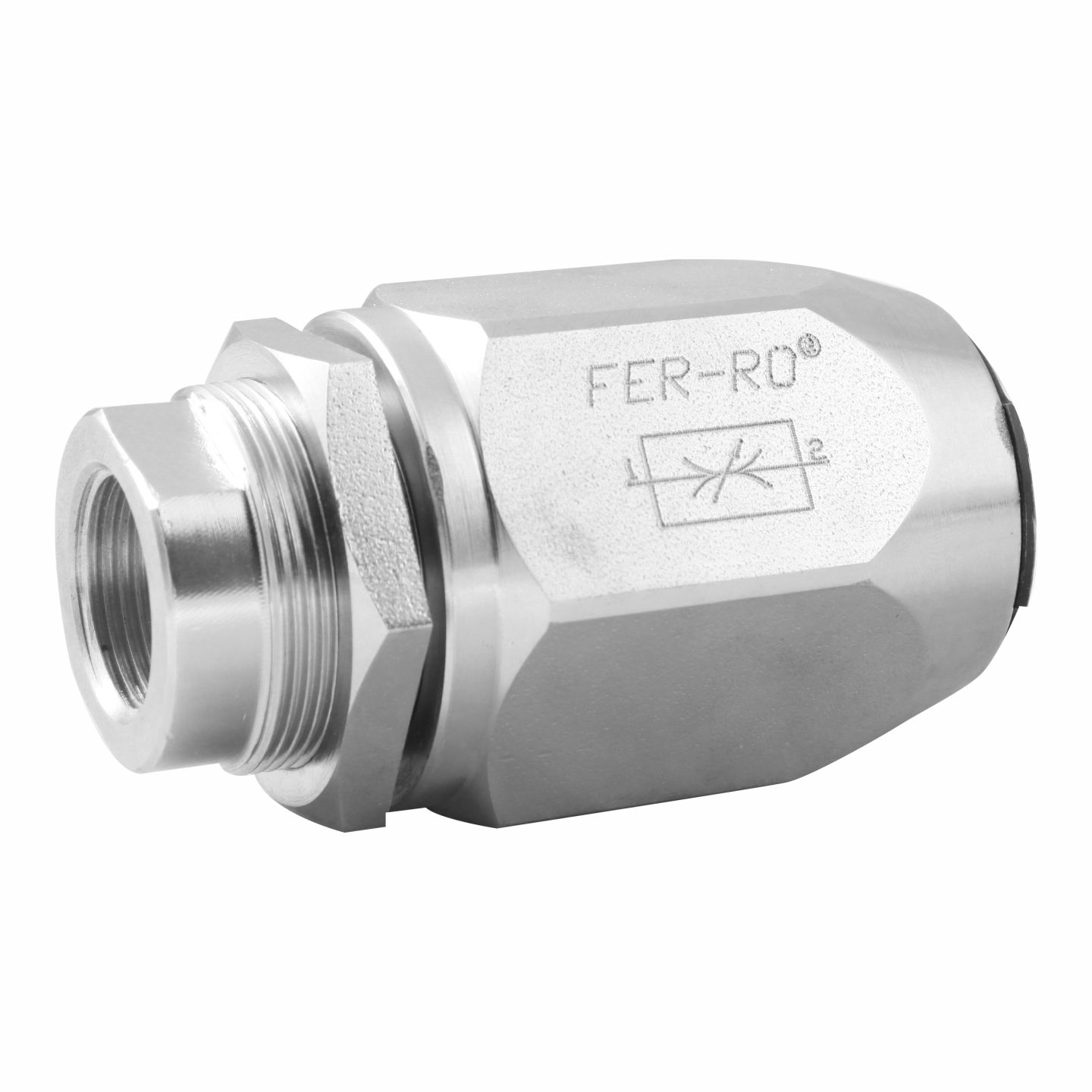

FCV SERIES VOLAN TYPE FLOW CONTROL VALVES WITHOUT CHECK

The FCV series Volan Type Flow Control Valves (Without Check) is a type of Valve for controlling the pressure and speed of the fluid in the double direction. The body on the shaft is set back and forth with a screw to determine the oil passage of the fluid. The control nut on the shaft protects and controls the power of the fluid precisely and ensures perfect adjustment by preventing vibration-induced changes in the flow passage setting.



Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating Zinc Plating (Cr III Passivation)
Applications General hydraulic applications

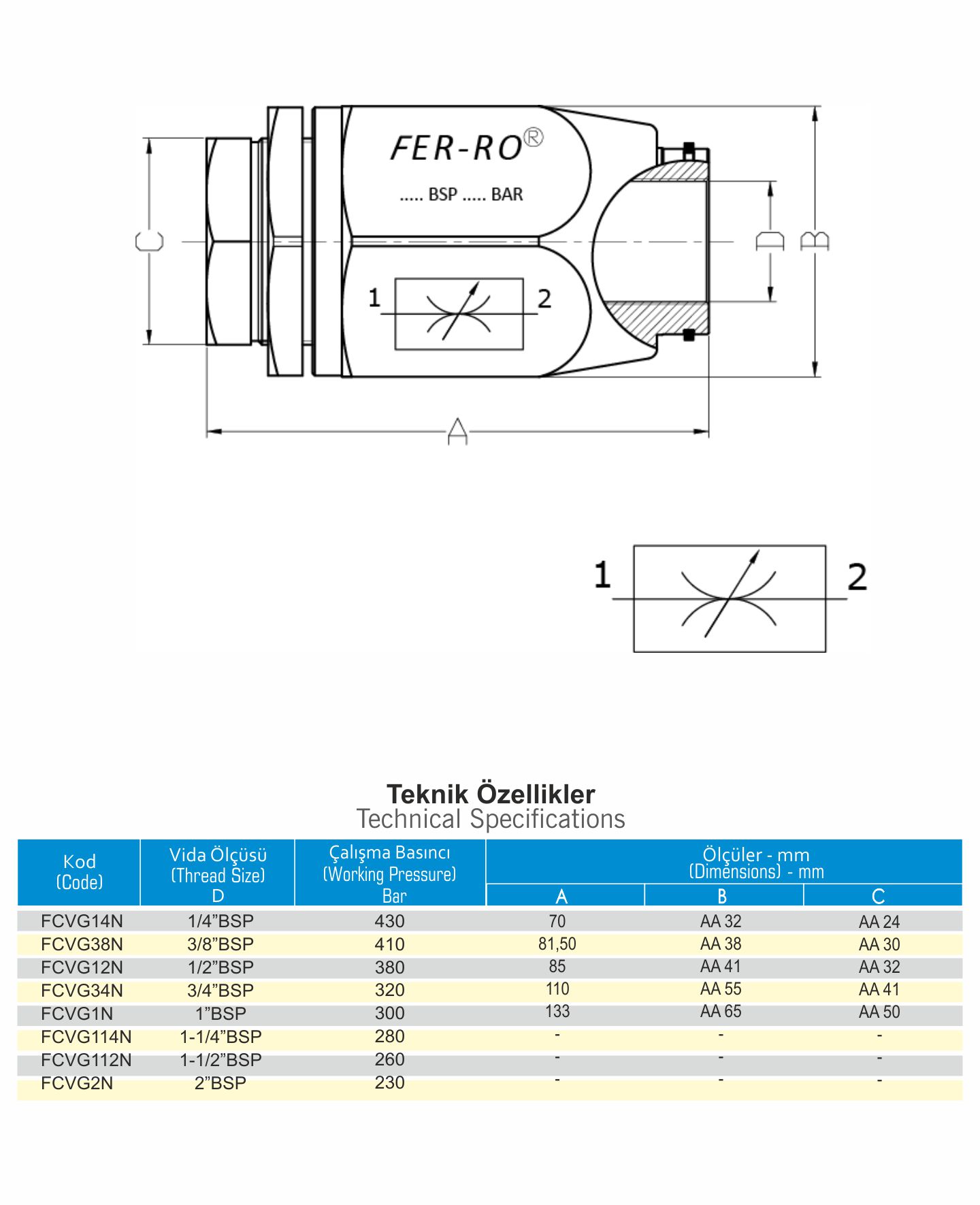

TECHNICAL DATA
PHOTOS
