SJBR Series Hydraulic Brass Swivel Joints are mounted between the end of a moving hose and a fixed component to prevent hose's damaging by compensating its torsion and twisting.
SJBR Series Hydraulic Brass Swivel Joints are not suitable for fast and permanent rotations. They are suitable for slow rotations and high pressure applications.
| Material | Brass |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Reguest | VITON & High temperature resistant special spring (-30 °C & +225 °C) |
| Applications | Construction, production, mobile hydraulic, general industries |

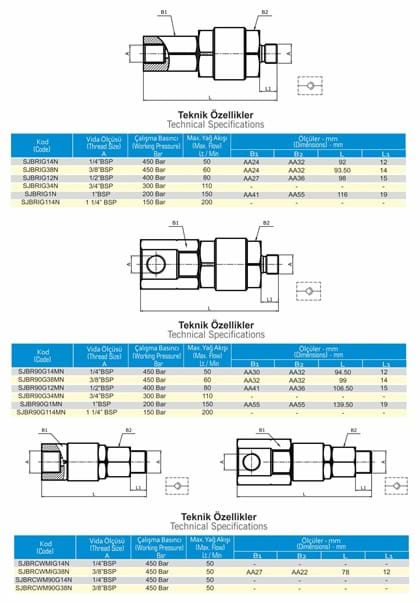

TECHNICAL DATA

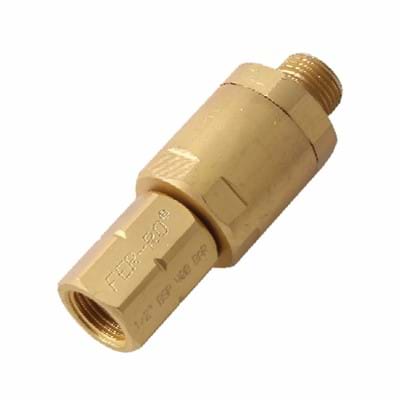

PHOTOS
