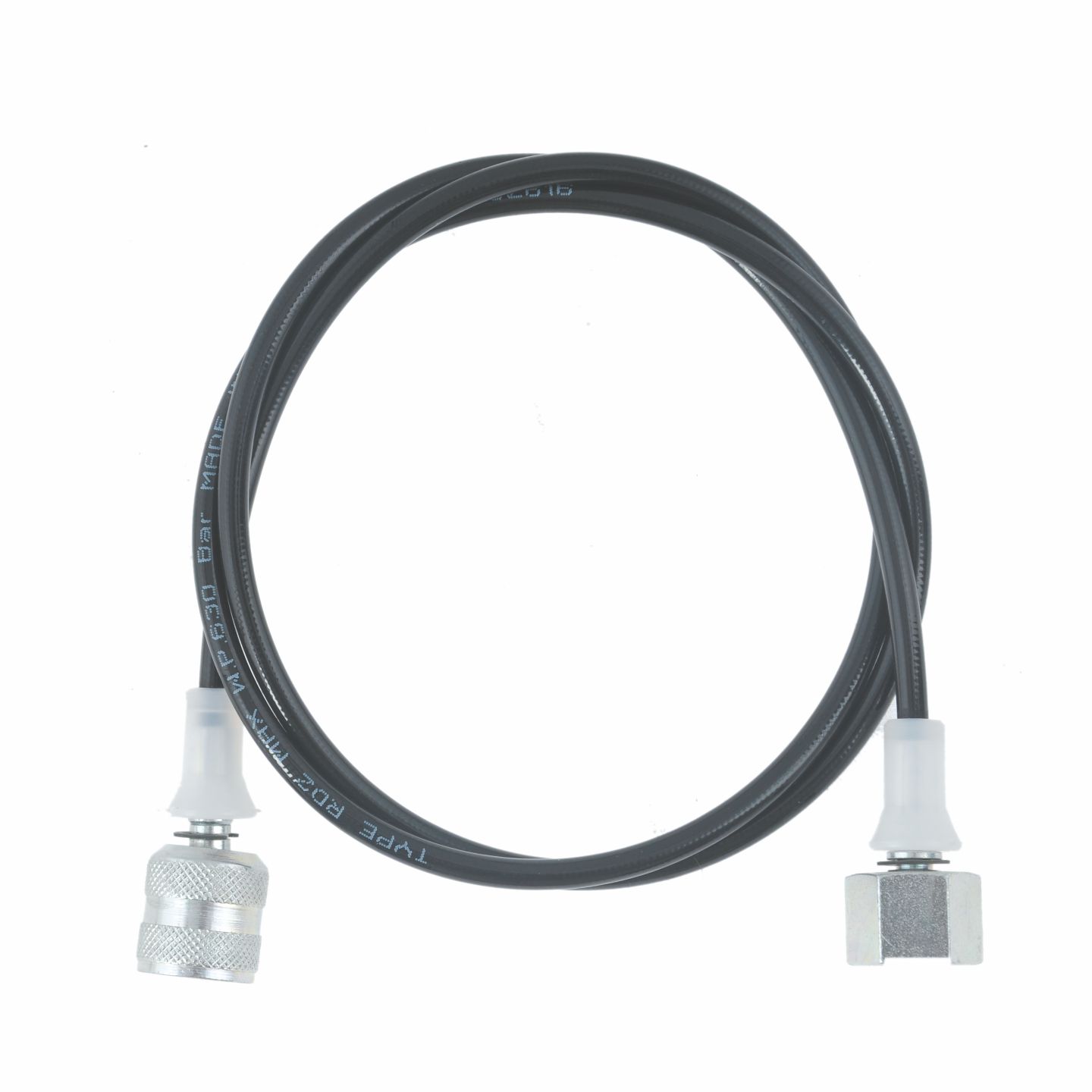

THSS SERIES HYDRAULIC STAINLESS STEEL TEST HOSES

THSS Series Hydraulic Test Hoses can be installed at any point of the hydraulic system where pressure is to be monitored. THSS Series Test Hoses provide perfect solutions and remote control for hard-to-reach locations and simplify the control. The micro-bore hose is extremely flexible that it can be installed easily. The screw-in design allows test hoses to be connected directly with the fluid even when the system is in operation and under high pressure. THSS Series Hydraulic Stainless Steel Test Hoses have an excellent resistance to corrosion with AISI-316 L Stainless Steel body.



Hose Dn2   5 - 2,2 Kevlar
Working Pressure  630 Bar
Fittings Material AISI 316-L Stainless Steel
Thread Size  M16x2 - 1/4" BSP
Sealing Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating Zinc Plating (Cr III Passivation)
Connection Under Pressure Allowed
Disconnection Under Pressure  Allowed
Applications  Pressure control & testing, lubrication

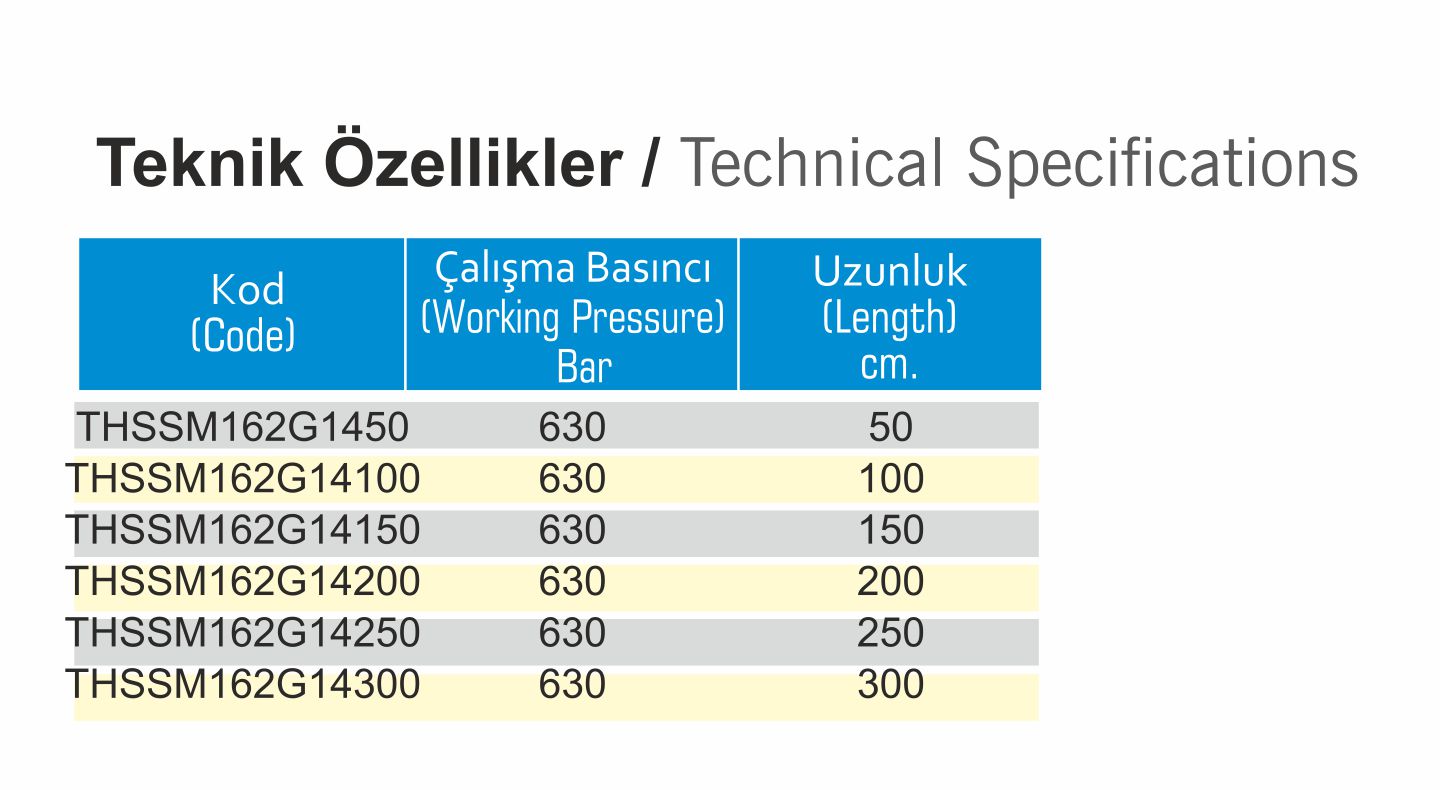

TECHNICAL DATA

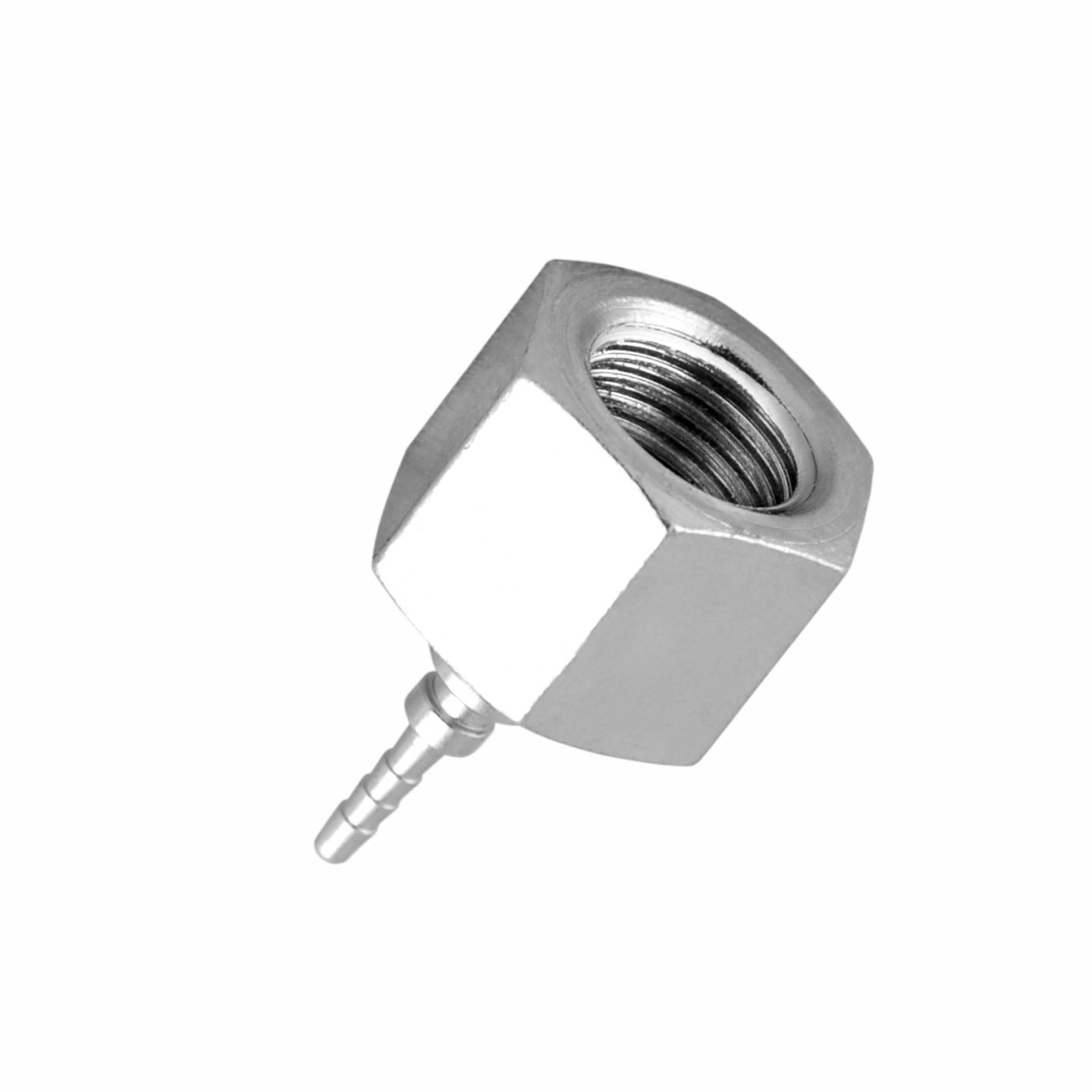

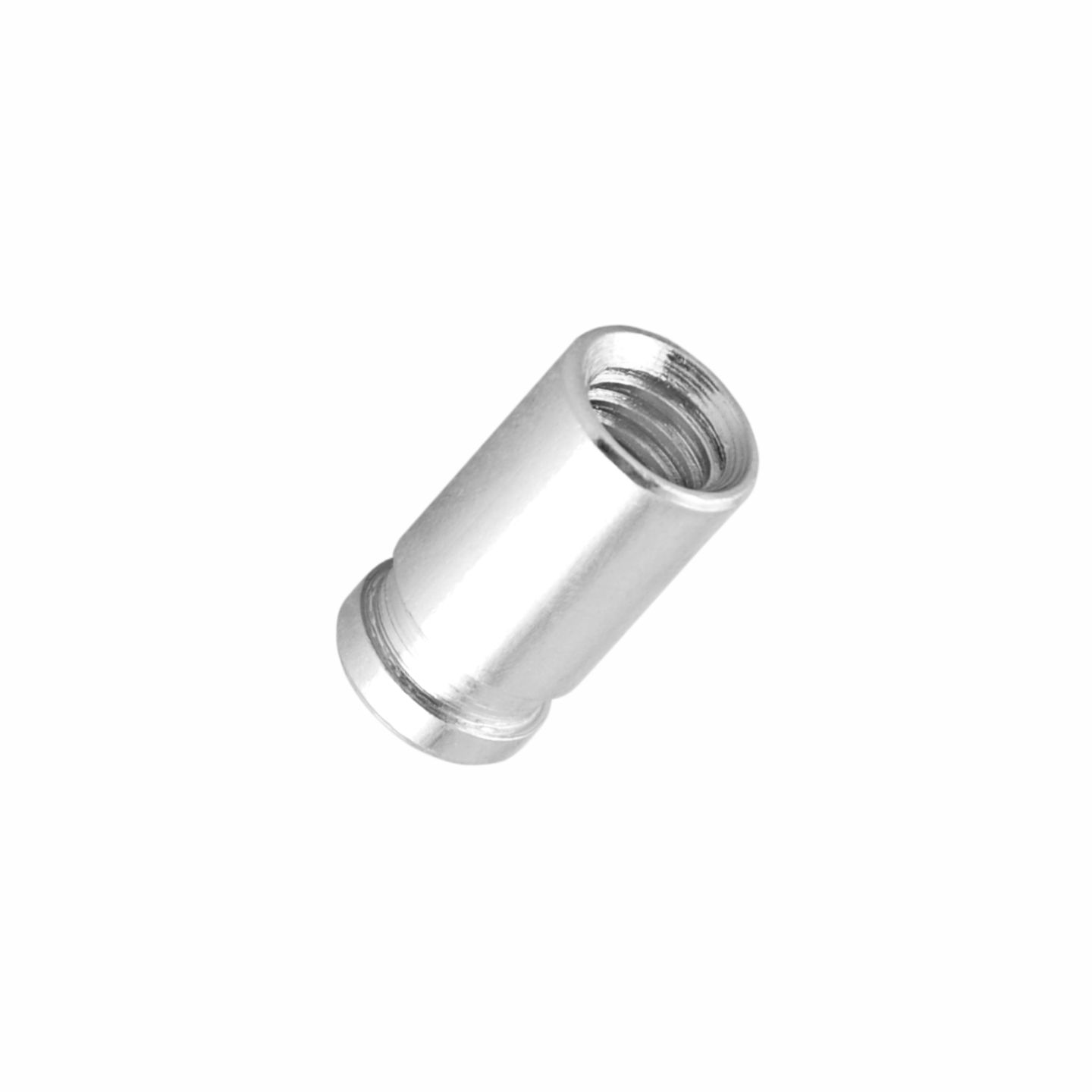

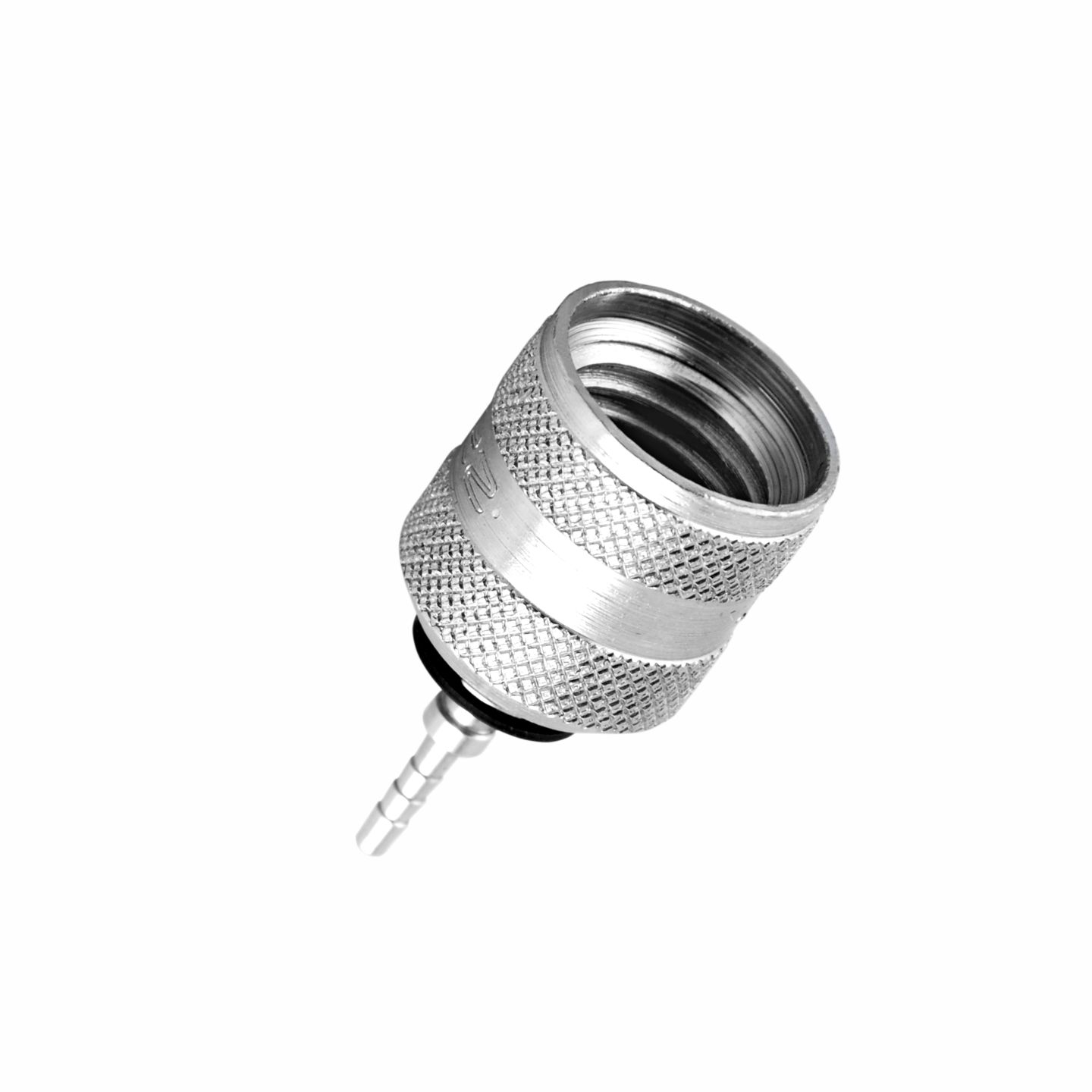

PHOTOS
