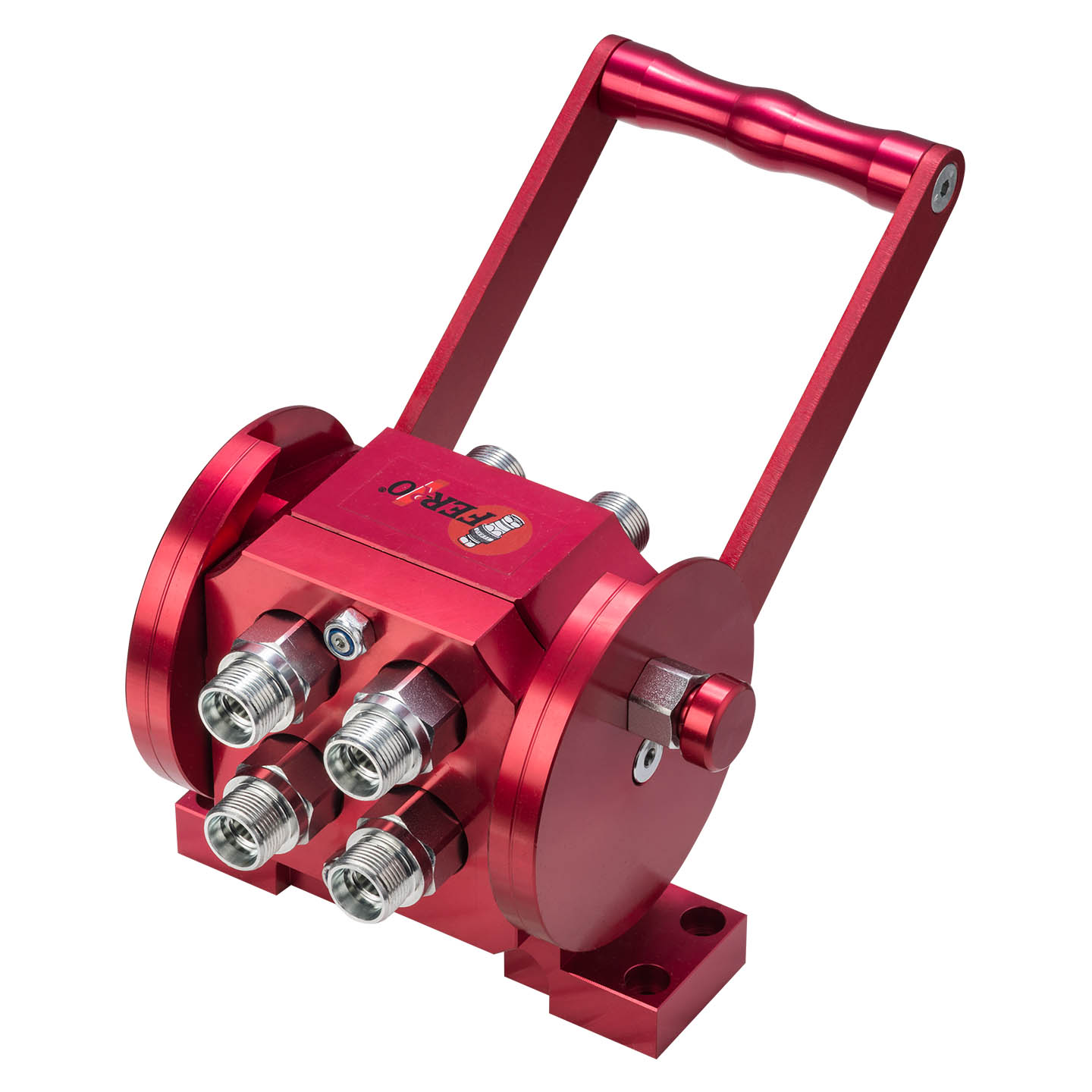

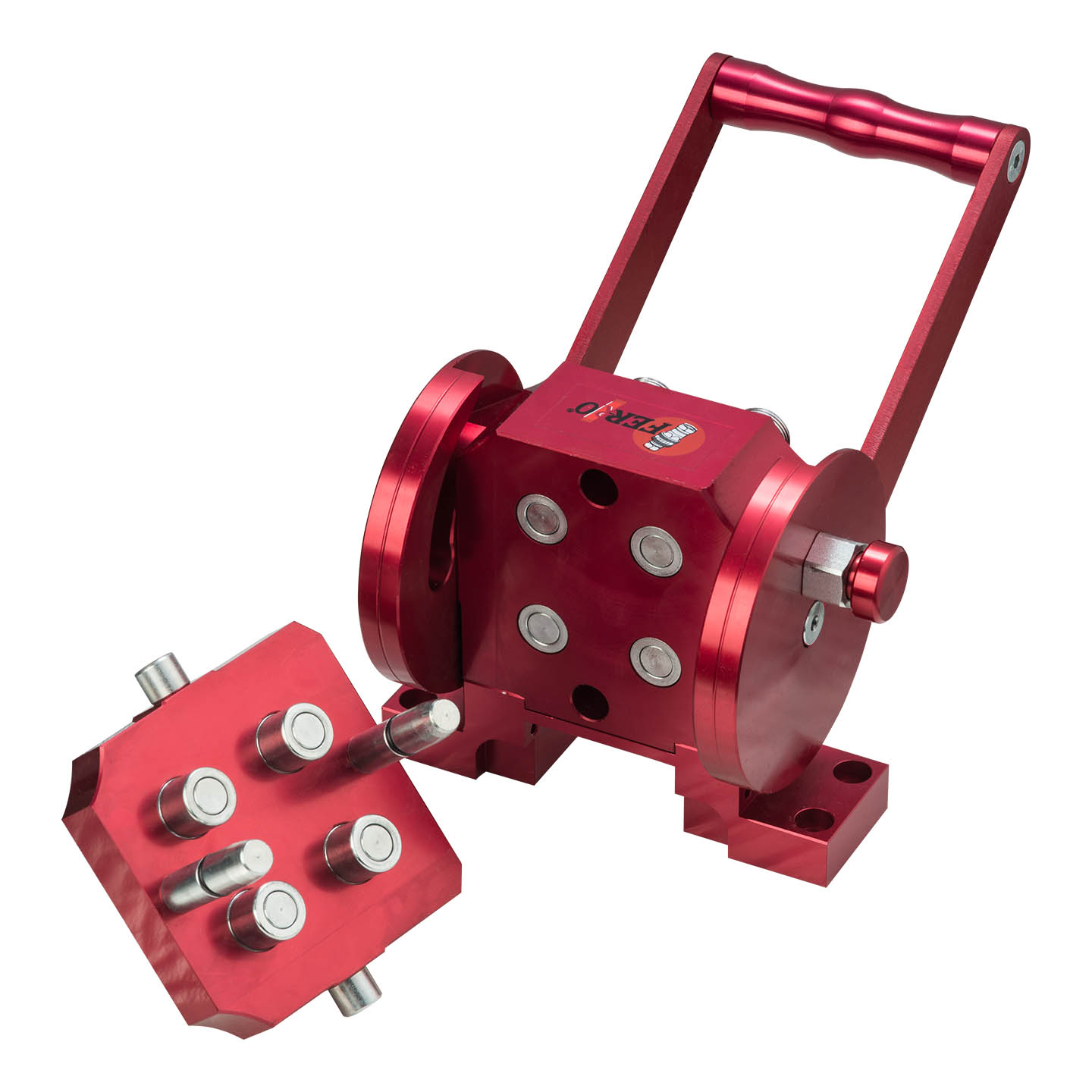

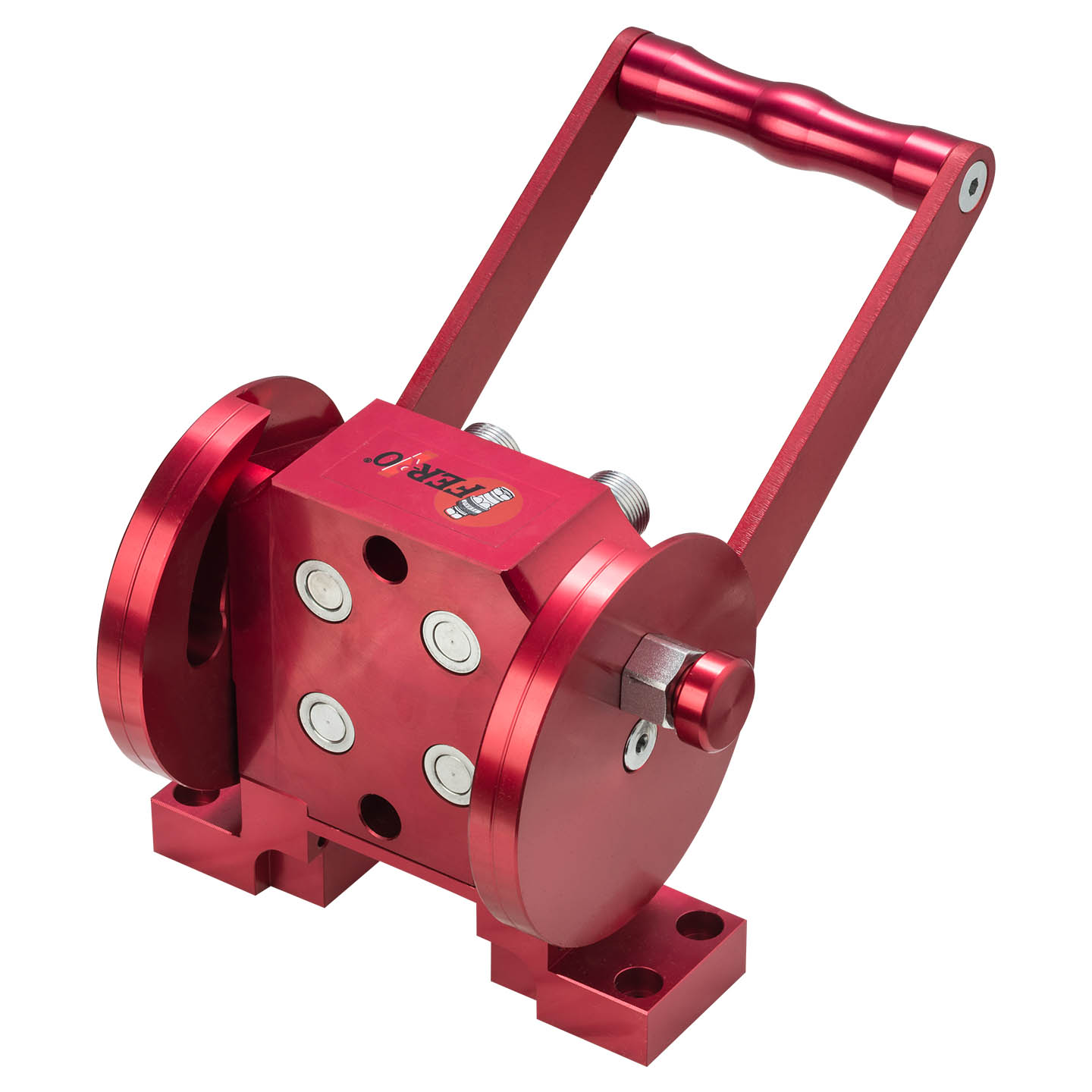

MCFF series Hydraulic Metric Flat Face Multi Couplings allow for easy and fast connection of multiple couplings at once. The lock mechanism prevents unintentional opening as it ensures that the circuits do not interfere.
| Interchangeability | ISO 16028 |
| Shut-off System | Flat Valve |
| Material (Body) | Aluminium |
| Material (Quick Couplings) | Carbon Steel |
| Thread Size | Metric |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Male nipple |
| Connection System | Lever |
| Disconnection System | Lever |
| Locking System | PIN, CAM |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Upon Request | VITON & High temperature resistant special spring |
| Applications | (-30 °C & +225 °C), Polyurethane (PU) |
| Construction, production, national defense, aviation, mobile, hydraulic, chemical, mining |

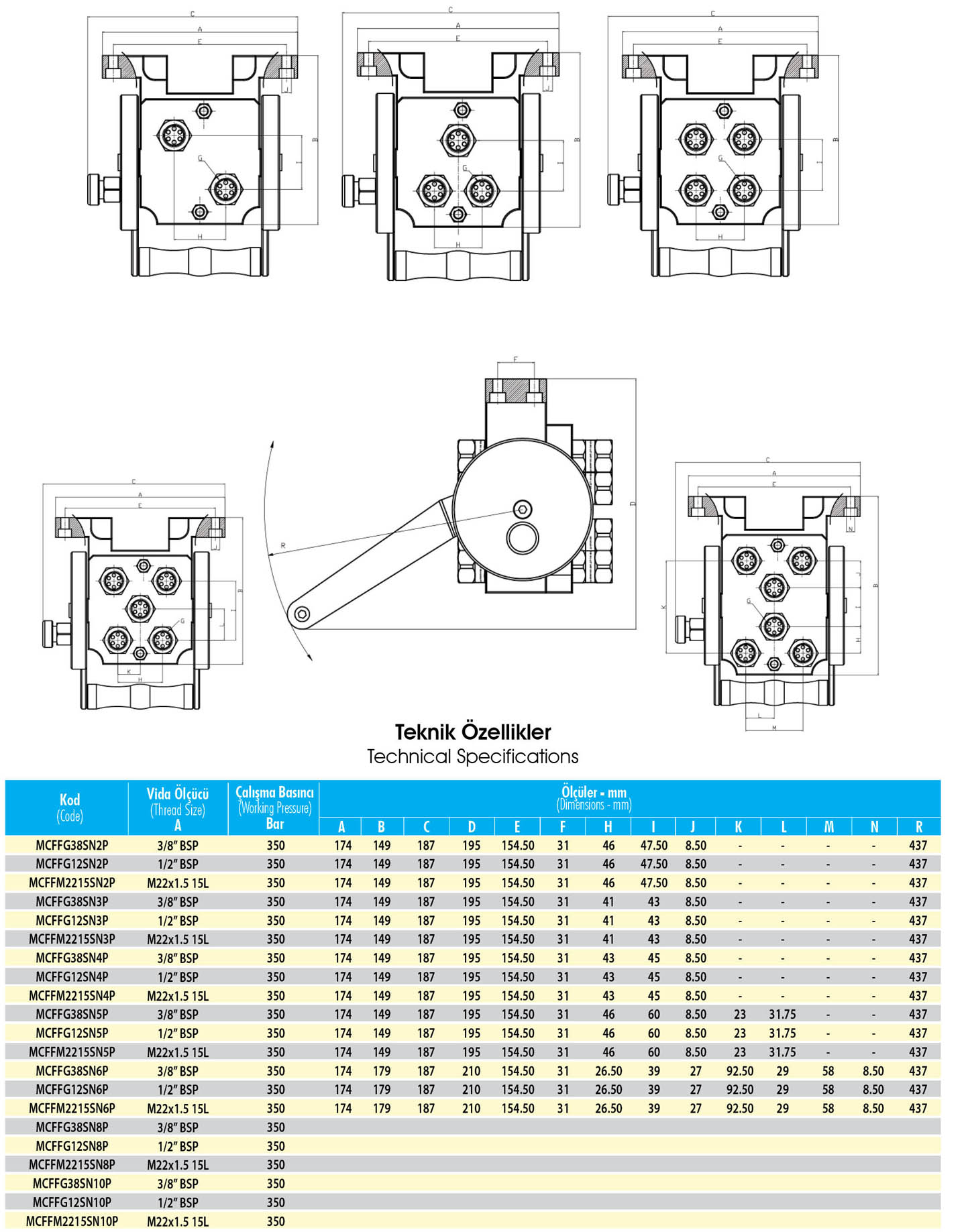

TECHNICAL DATA
