PN25S Series Pneumatic Quick Couplings have single hand operation feature which provides easy and quick connection and disconnection under pressure. For PN25S Series stainless steel springs are used.
PN25S Series Pneumatic Quick Couplings are widely used confidently for compressed air lines in all industries due to their strong and durable structure, high flow capacity and user-friendly usage.At the first push on the button air flow will be stopped and the second push will allow you to pull the nipple over the coupler.
| Interchangeability | Rectus 26 (European Standart) |
| Material | Carbon Steel |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Nipples |
| Spring | Stainless steel |
| Connection System | Pushing the nipple (One-hand operation) |
| Disconnection System | Pulling back the sleeve (One-hand operation) |
| Connection Under Pressure | Allowed |
| Disconnection Under Pressure | Allowed |
| Upon Request | VITON |
| Applications | Compressed air lines in all industries |

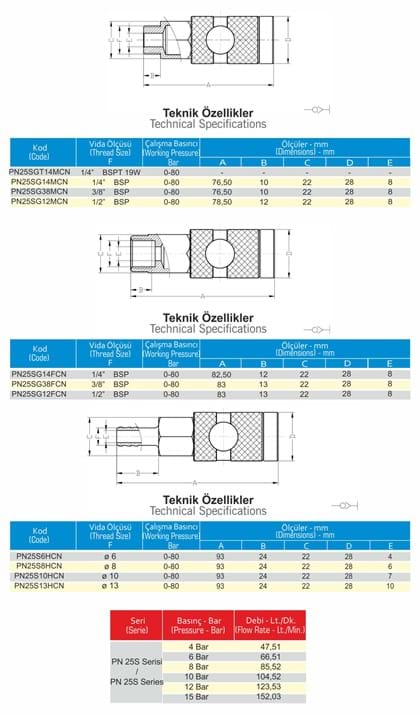

TECHNICAL DATA

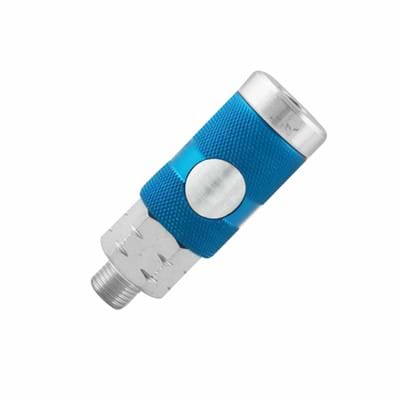

PHOTOS
