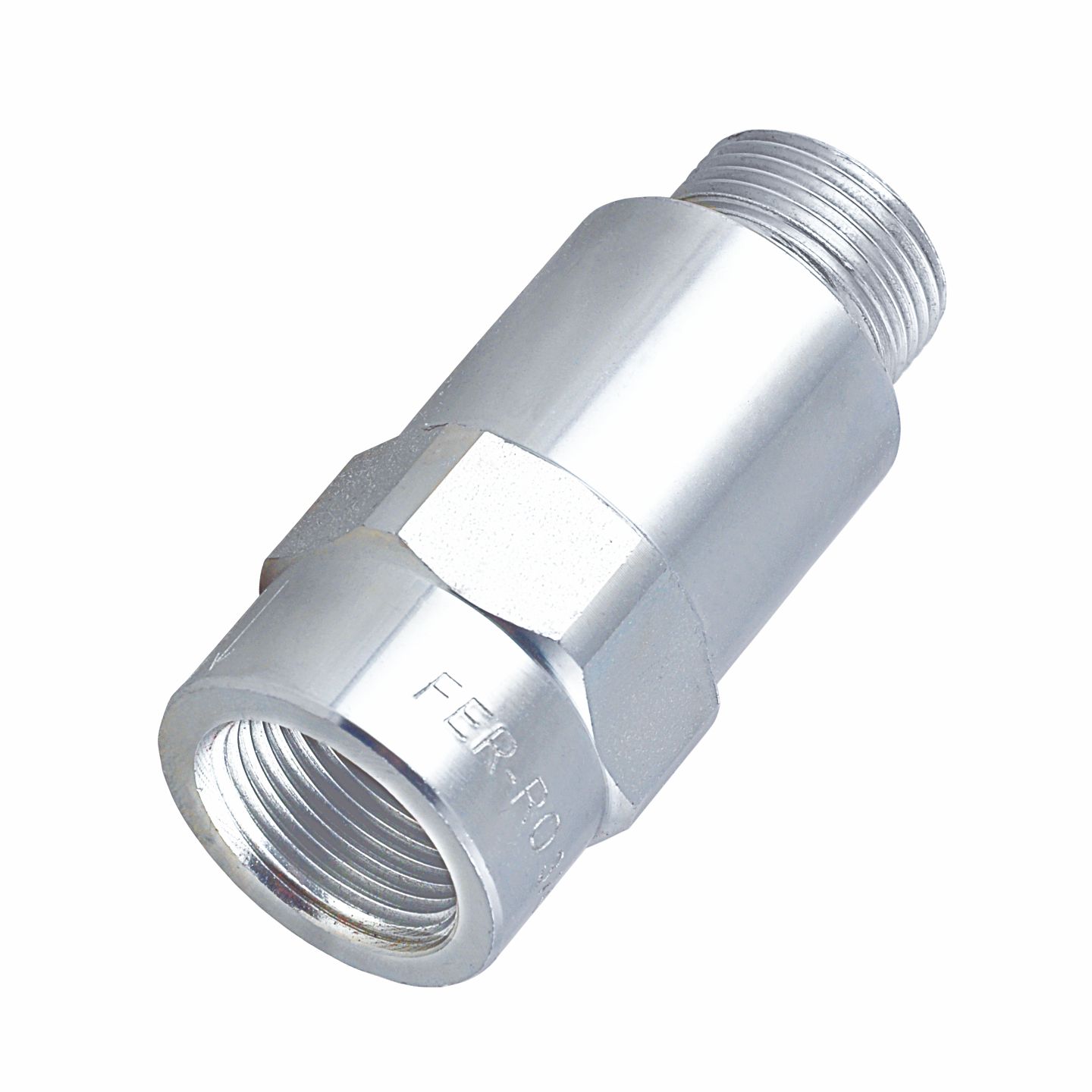

CVP Series Hydraulic Check Valves provide free flow in one direction while the opposite direction is shut-off.
They are also used for by-pass of throttle points, for flow prevention in one direction,
For discharging valve and for hold valve.
For CVP Series Check Valves, one end is male thread, while other end is female thread.
Opening pressure of CVP Series Hydraulic Check Valves is 0,5 Bar. Upon request, 6-8
Bar opening pressure is optional.
| Material | Carbon Steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Opening Pressure | 0,5 Bar (6-8 Bar opening pressure is optional, open request) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Internal parts |
| Upon Request | VITON & High temperature resistant special spring (-30 °C &+225 °C) |
| Applications | Special spring for optional 6-8 Bar opening pressure |
| Construction, production, agriculture, mobile hydraulic, | |
| general industries | |

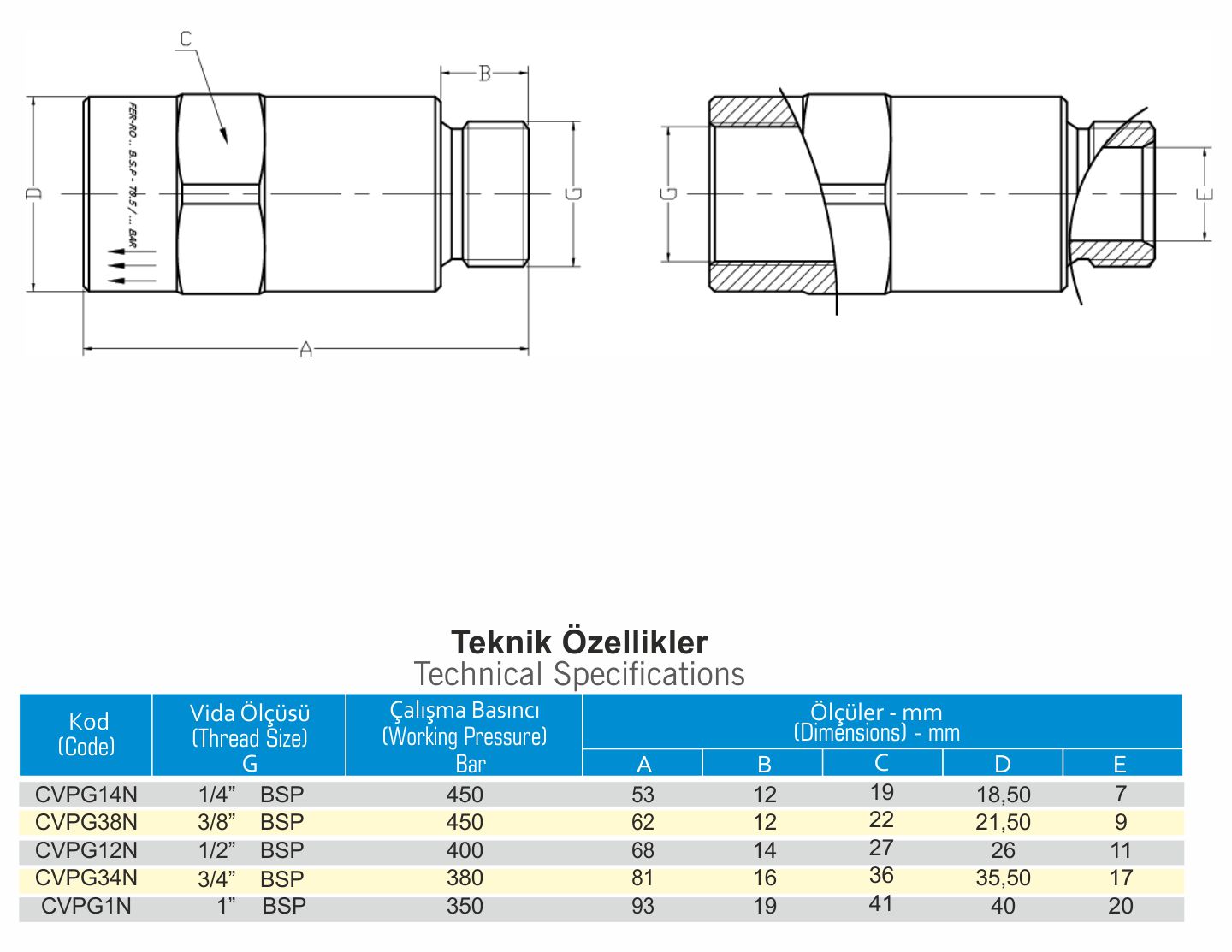

TECHNICAL DATA
