CVSS Series Check Valves are completely made of AISI 316-L stainless steel row material have an excellent
Resistance to all kind of chemical and corrosion.
CVSS Series Check Valves are also used for by-pass of throttle points, for flow prevention in one direction, for
discharging valve and for hold valve.
Opening pressure of CVSS Series Hydraulic Check Valves is 0,5 Bar. Upon request, 6-8 Bar opening
Pressure is optional.
| Material | AISI 316-L stainless steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Opening Pressure | 0,5 Bar (6-8 Bar opening pressure is optional, open request) |
| Sealing | VITON |
| Working Temperature | -30 °C and +225 °C |
| Upon Request | EPDM ( For steam application) |
| Special spring for optional 6-8 Bar opening pressure | |
| Applications | Marine, food, pharmacy, medical, chemical, irrigation, paper, paint, |
| textile, gas and aviation |

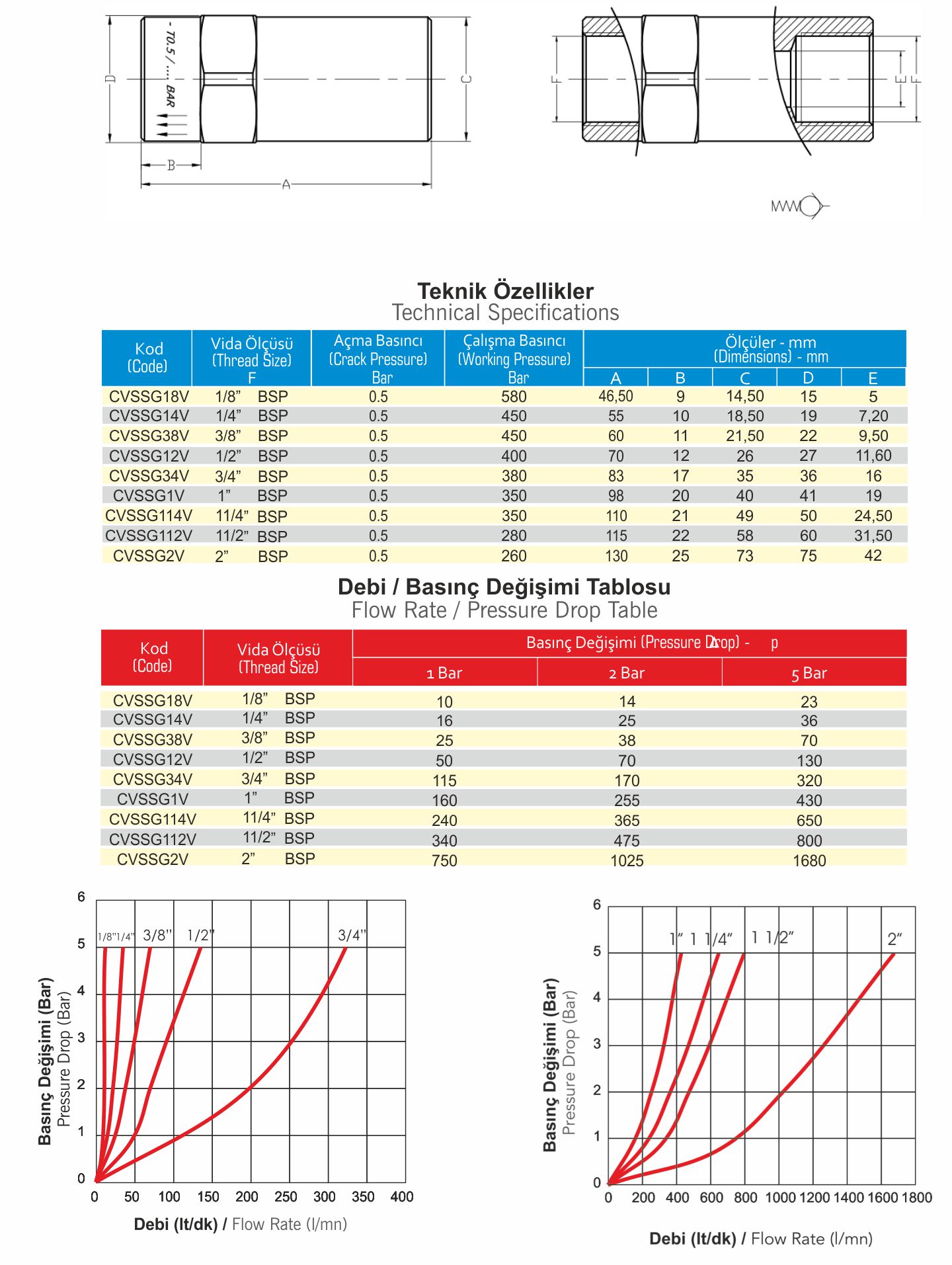

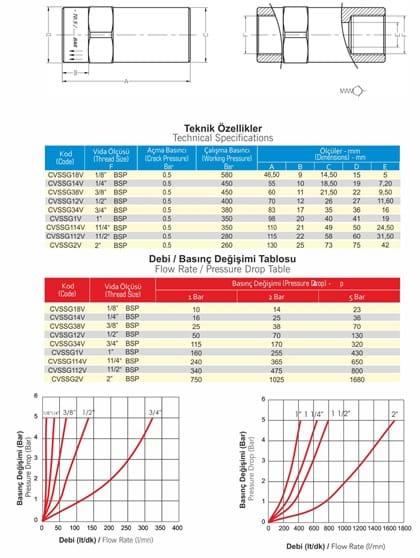

TECHNICAL DATA

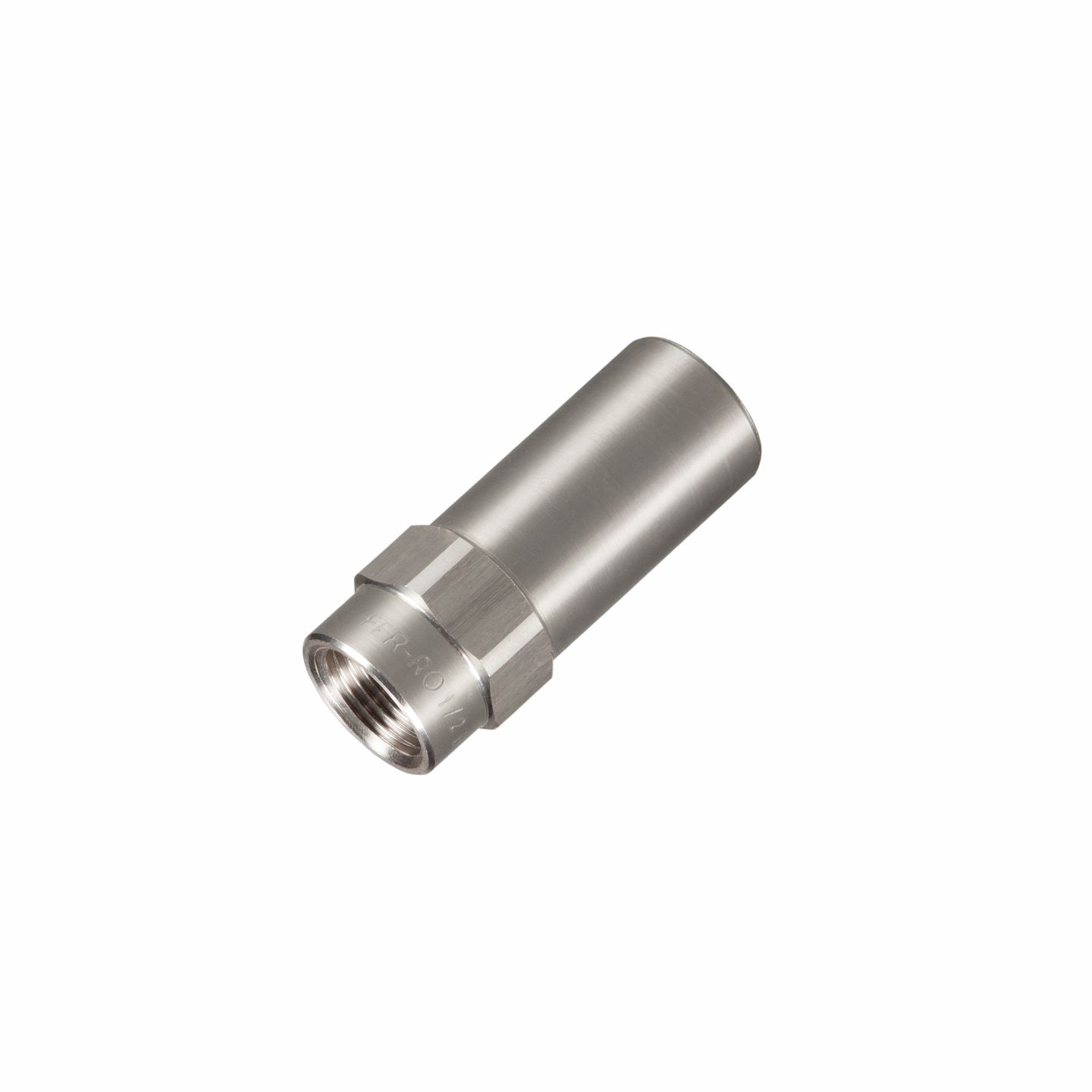

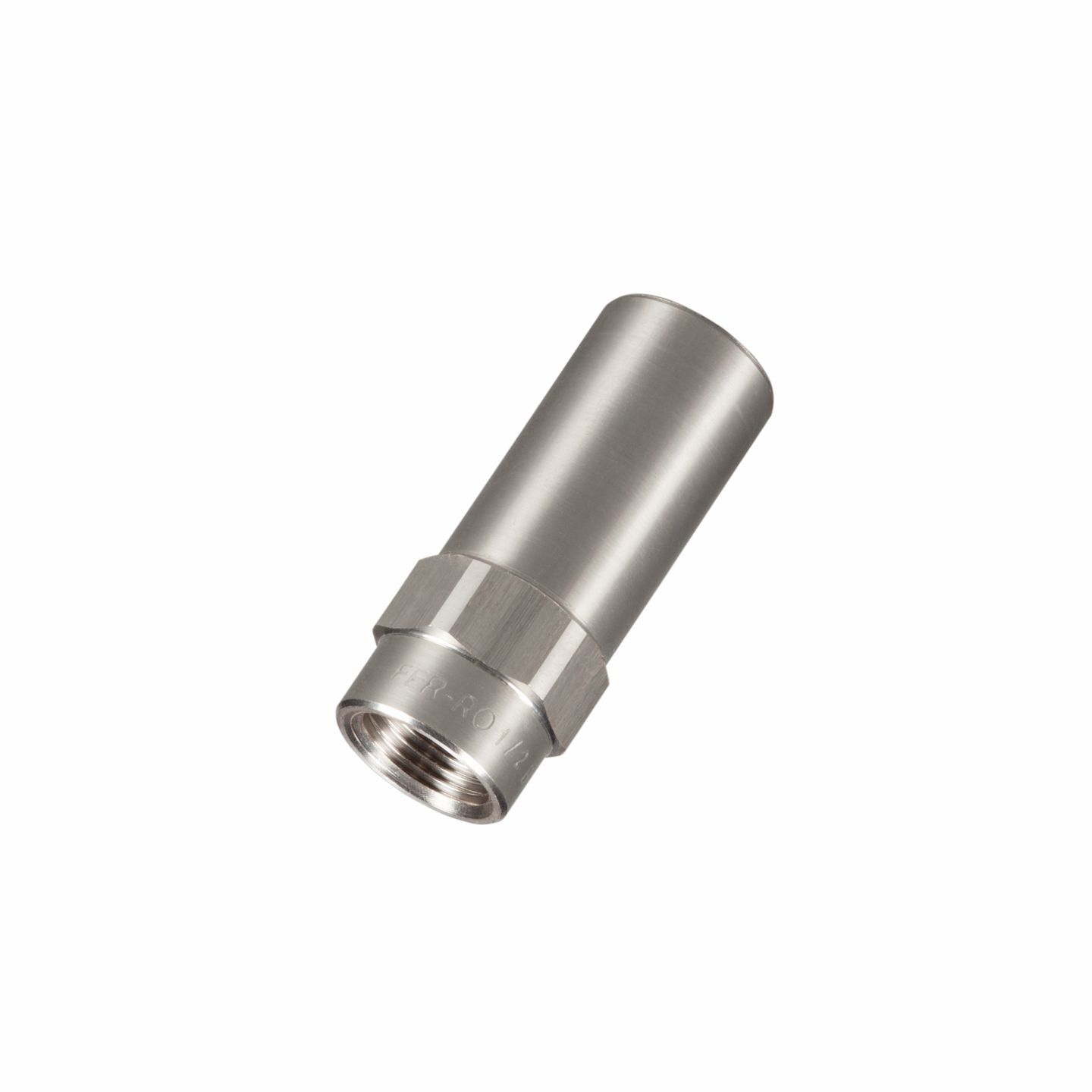

PHOTOS
