OCV SERIES HYDRAULIC OVER-CENTER VALVES (DOUBLE)

OCV Series Hydraulic Over-Center Valves(Double) ıs used to lock the forward and backward movement of the cylinder in order to prevent unwanted situations during rupture of hoses or pipes. It ıs widely used in compressed cylinder and engine applications. Load holding valves are internal pilot drive and no external pilot drive is required.



Material  Aluminium
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

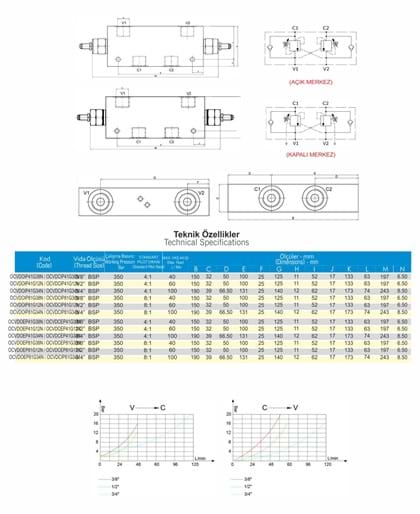

TECHNICAL DATA

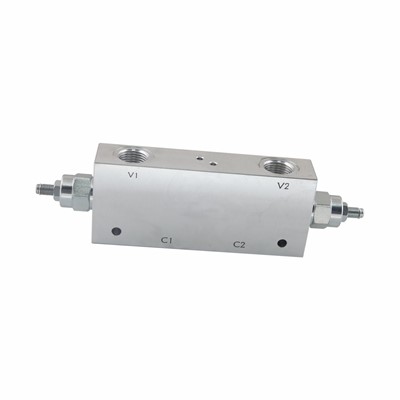

PHOTOS
