OCV Series Hydraulic Over-Center Valves (Single) is used to lock the forward and backward movement of the cylinder in order to prevent unwanted situations during rupture of hoses or pipes. It ıs widely used in compressed cylinder and engine applications. Load holding valves are internal pilot drive and no external pilot drive is required.
| Material | Aluminium |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Heat Treatment | Internal parts |
| Applications | General Hydraulic Applications |

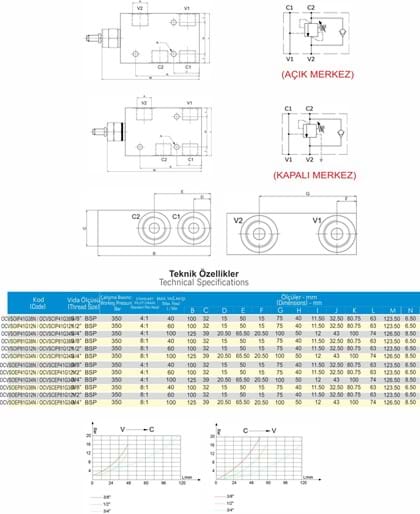

TECHNICAL DATA

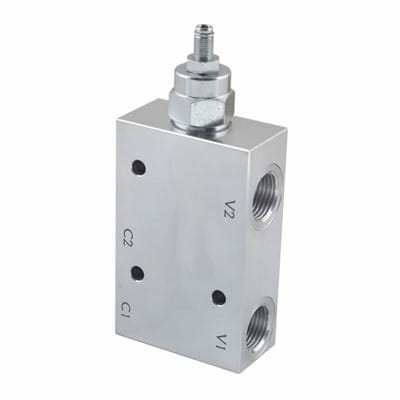

PHOTOS
