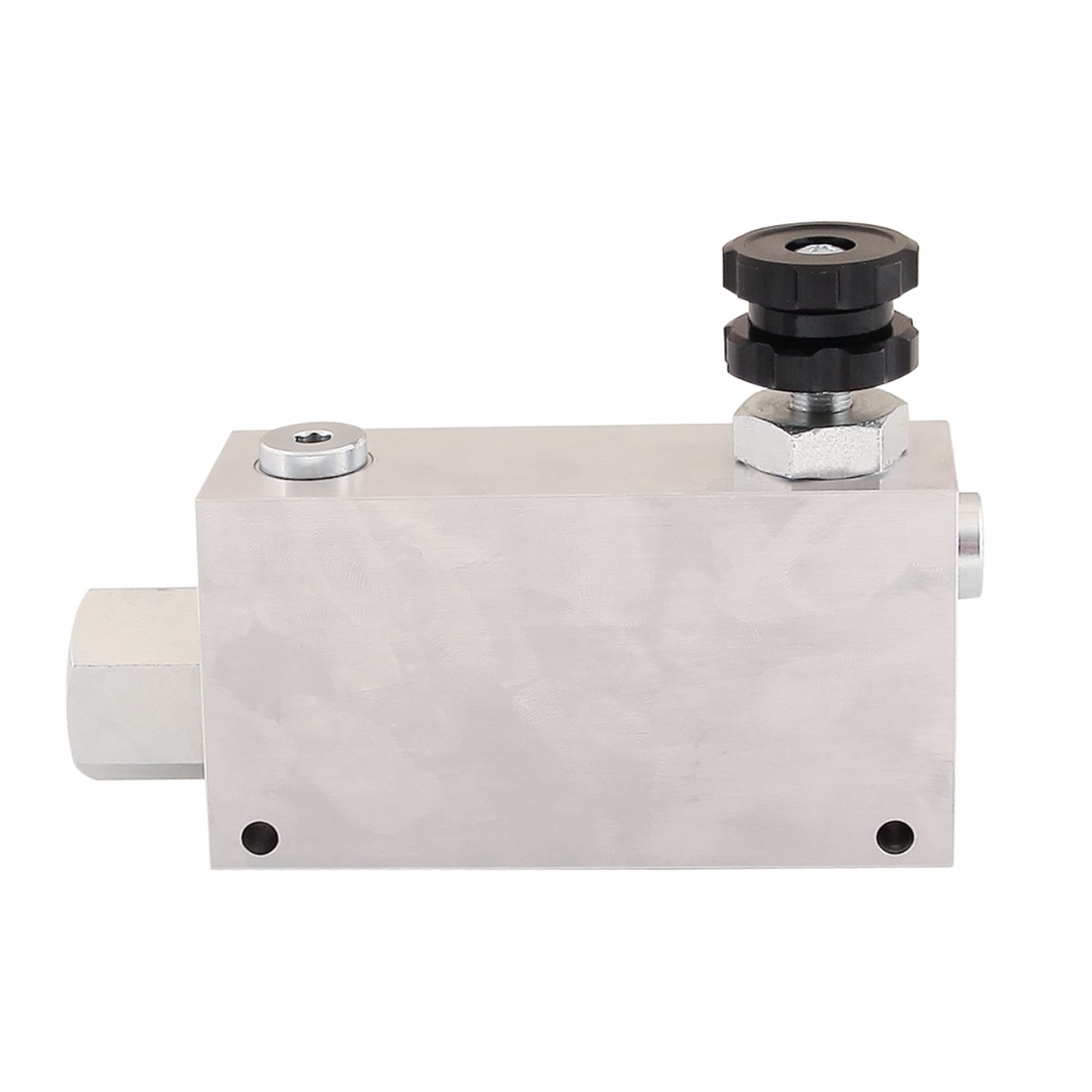

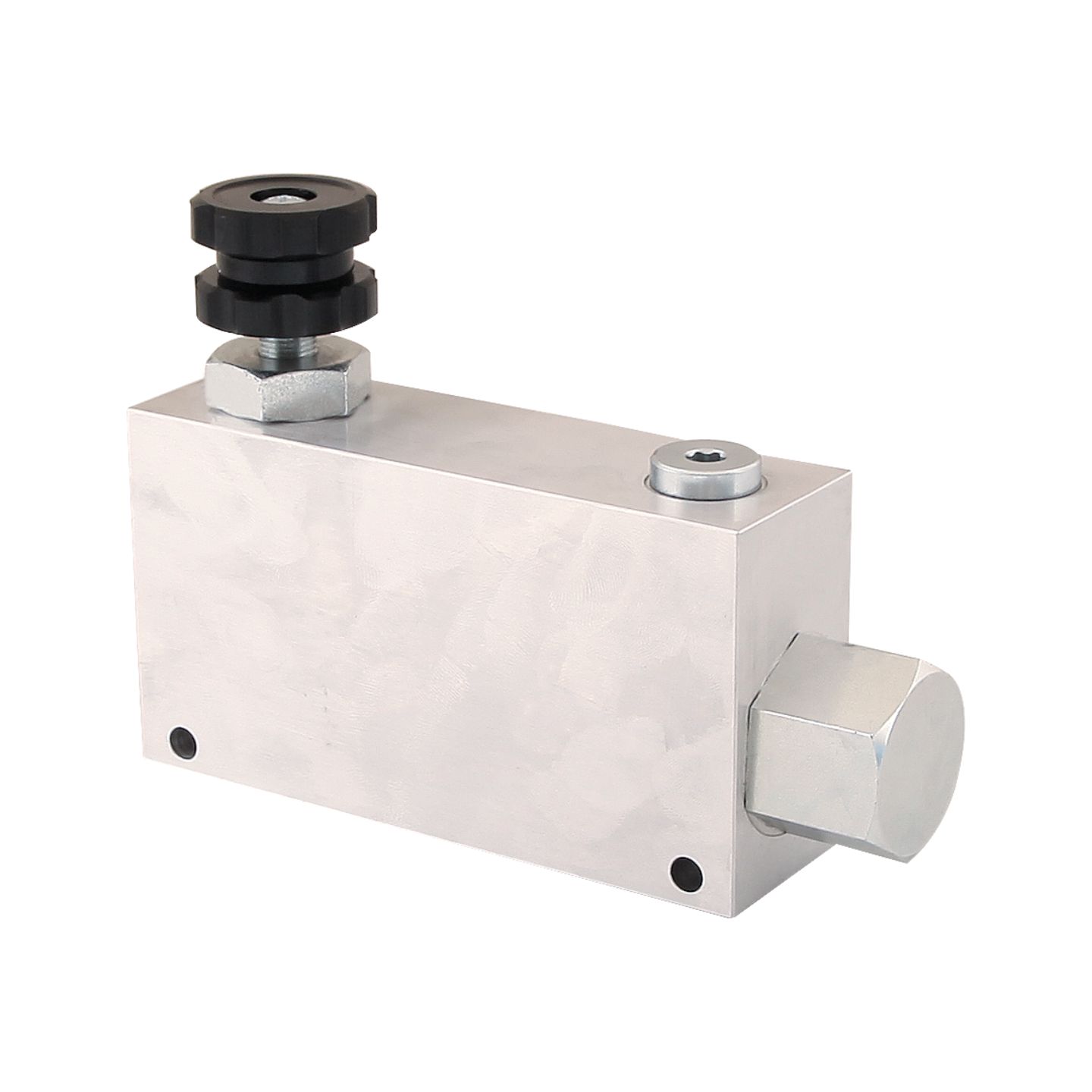

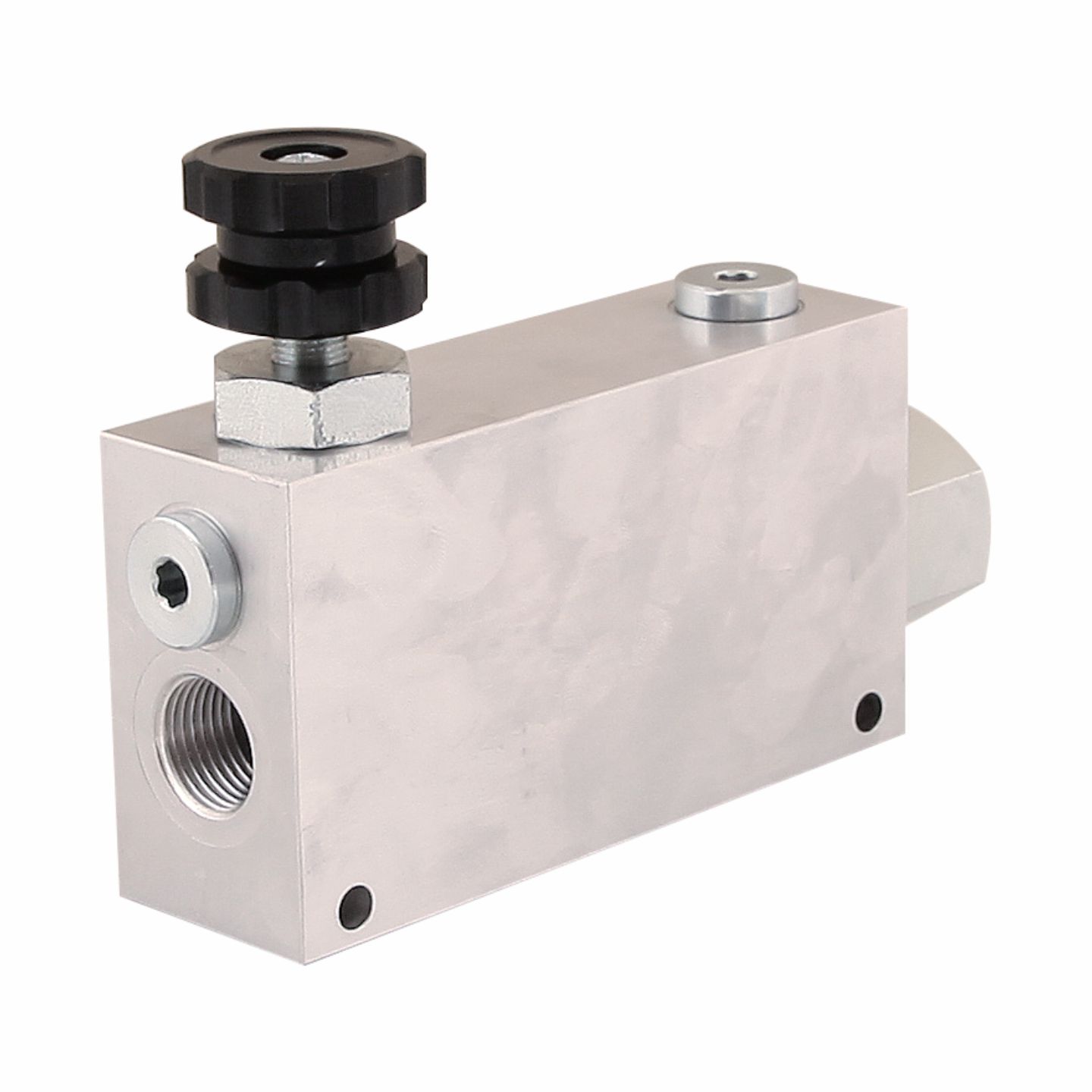

FLD SERIES HYDRAULIC 3-WAY PRESSURE REGULATOR SPLITTER VALVES (PRIORITY)

FLD series Hydraulic 3-Way Pressure Delicate Splitter Valves enable them to operate at the same or different speeds in a hydraulic circuit by sending the fluid from the same pump to two separate cylinders or motors at equal or different rates. It can control the speeds of the A and B line with the throttle valve located on the valve to slow down or speed up the speeds of the cylinders or motors.



Material  Aluminium
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

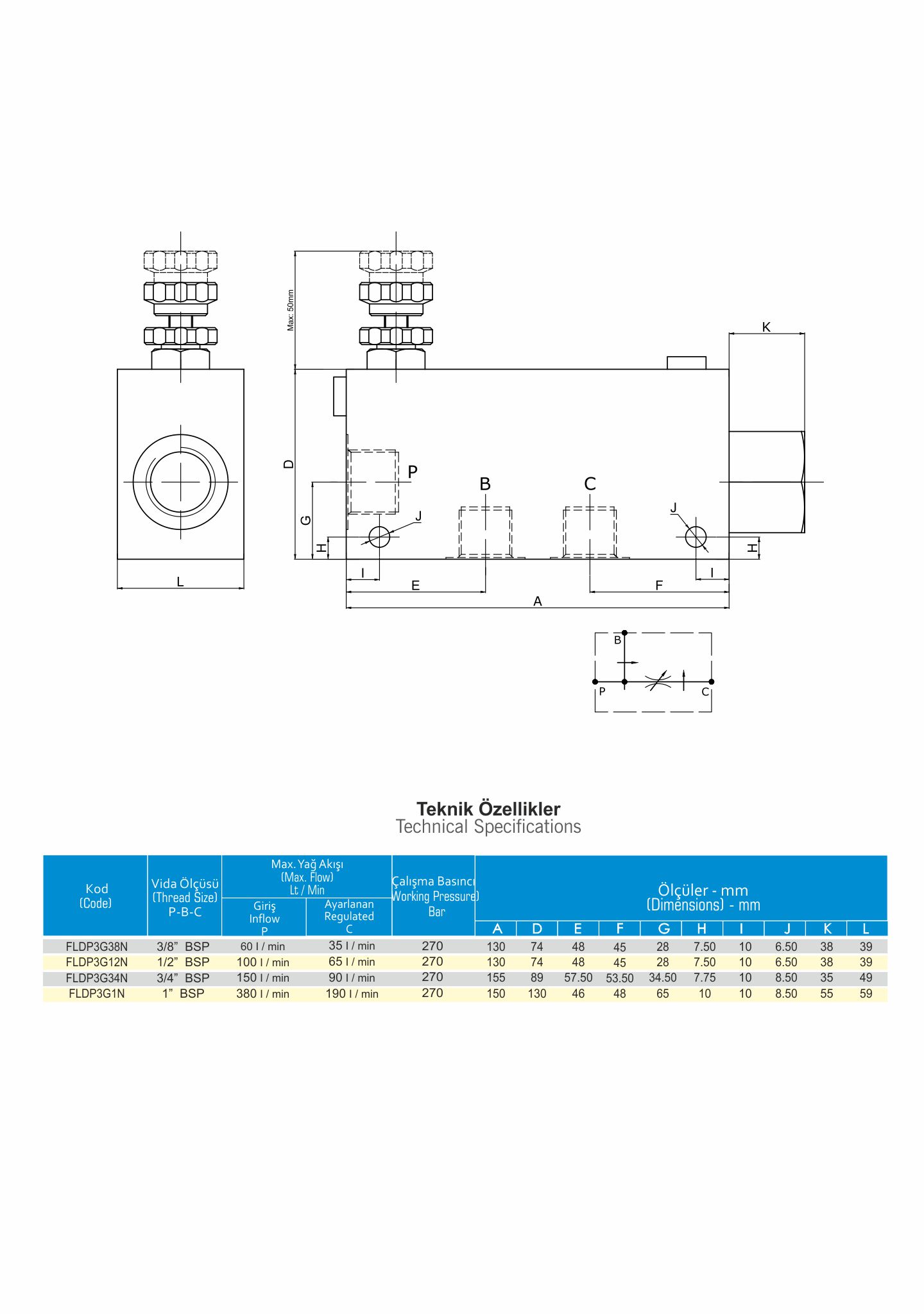

TECHNICAL DATA
PHOTOS
