PRSQ SERIES EXTERNAL PRESSURE REGULATOR PRESSURE SEQUENCE VALVES

The PRSQ Series External Pressure Regulator Pressure Sequence Valves are used to operate multiple cylinders, motors and user elements at different times and pressures in a hydraulic circuit. Their standard position is Normally Closed. They open at the desired pressure and activate other user elements and allow them to return without pressure on the same line.



Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

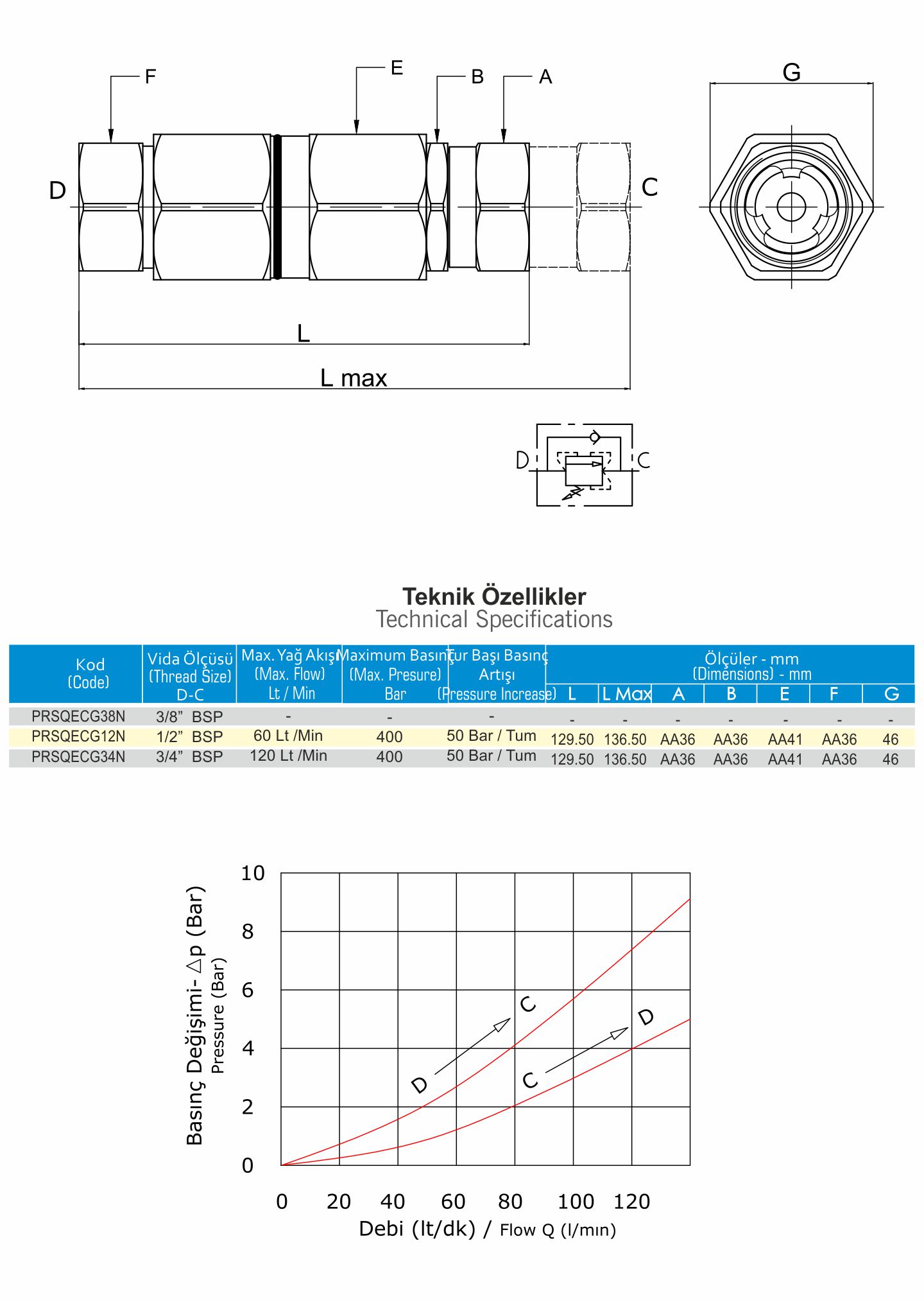

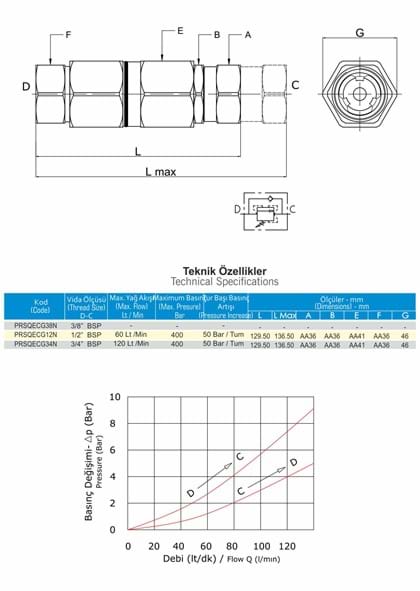

TECHNICAL DATA

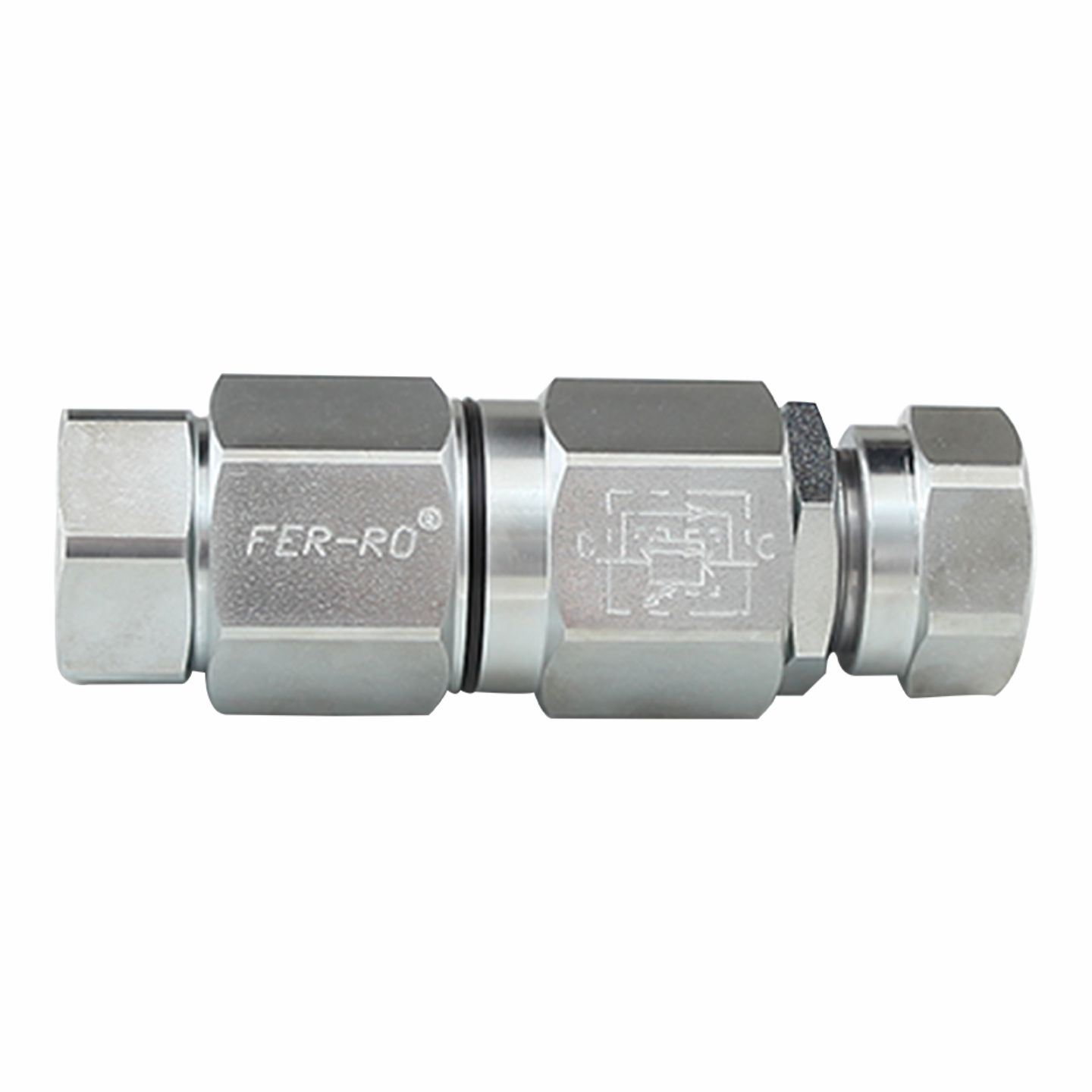

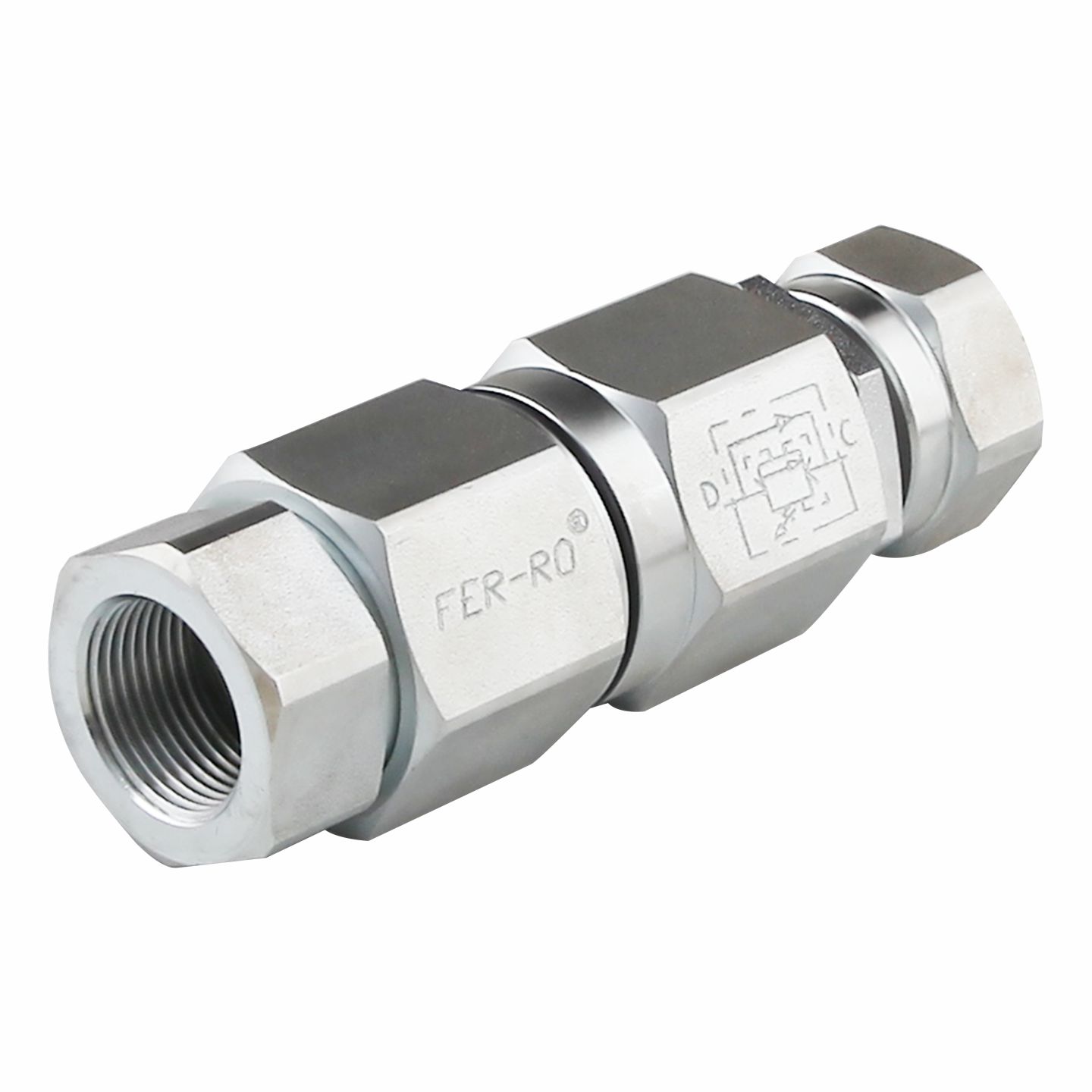

PHOTOS
