MFCC SERIES NG10 MODULAR FLOW CONTROL VALVES (WITH CHECK)

NG10 Modular Flow Control Valves (with check) are valves that allow the fluid
speed to be adjusted in one direction and pass comfortably by opening the check valve in the other direction. NG10 Modular Flow Control Valves are compatible
with other valves by connecting to the subplates. Mounting surface is NG10
NG10 Modular Flow Control Valves (with check) are widely used in mobile and
other industrial areas.

Material  Aluminium
Connection Type  NG10 Connection
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Applications General Hydraulic Applications

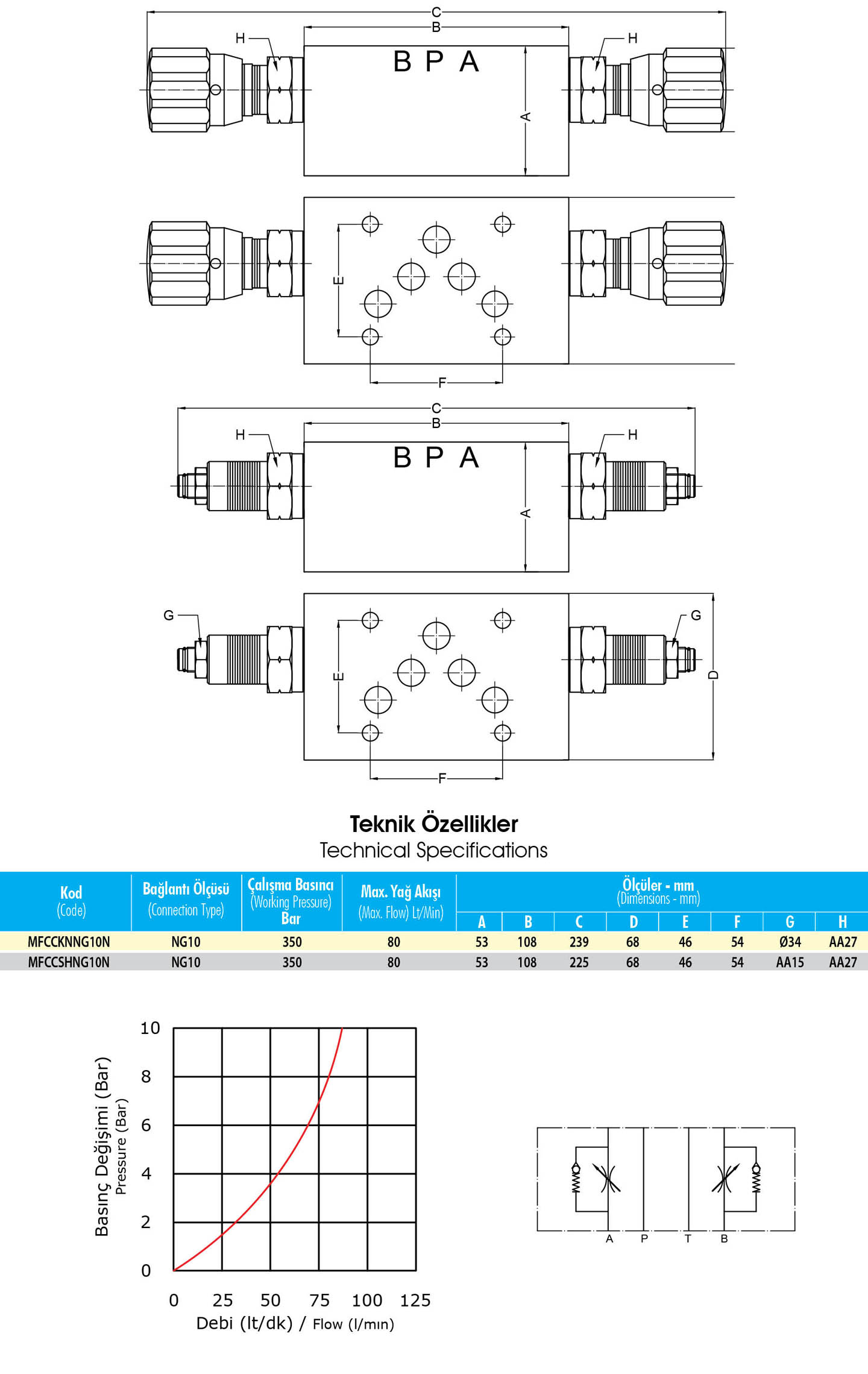

TECHNICAL DATA

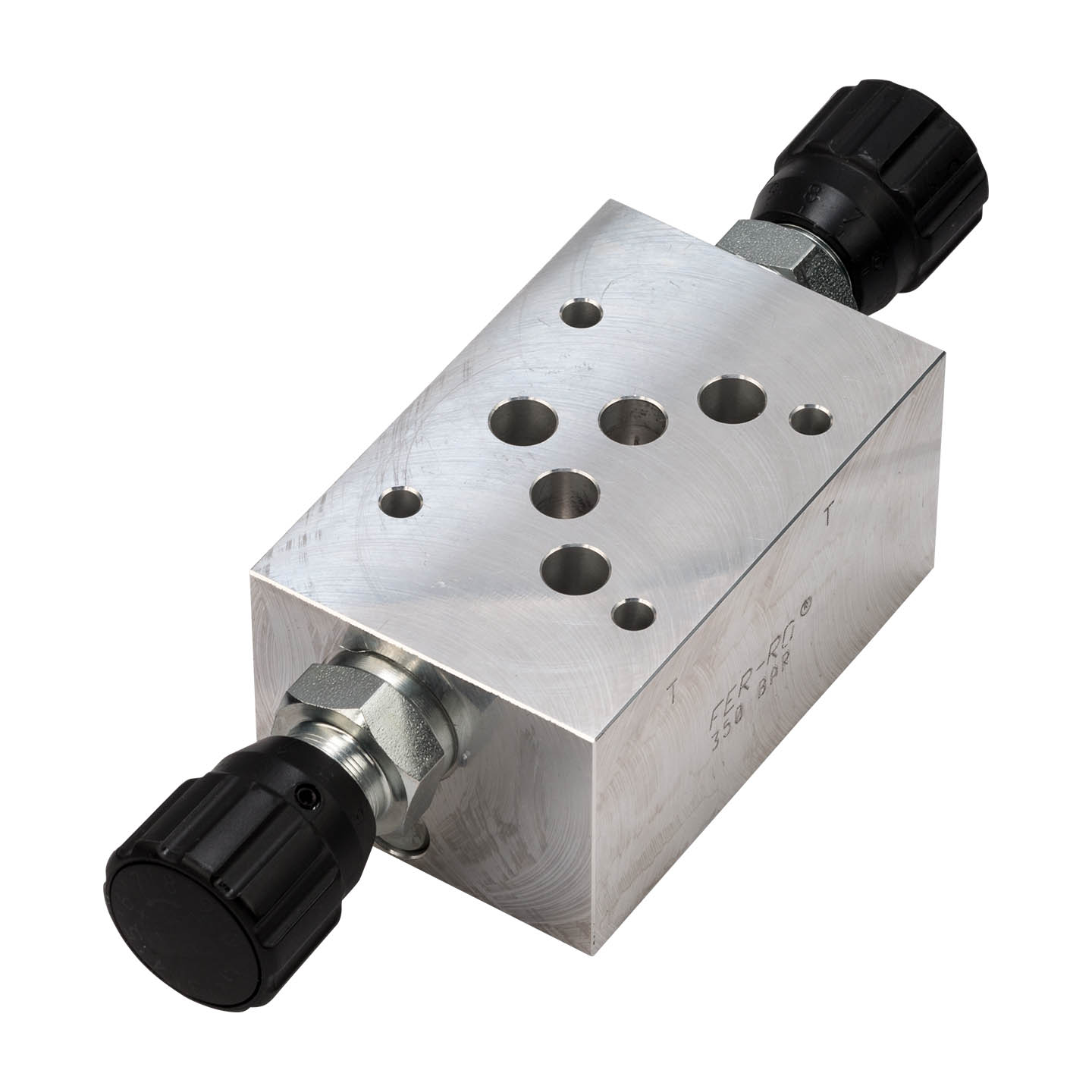

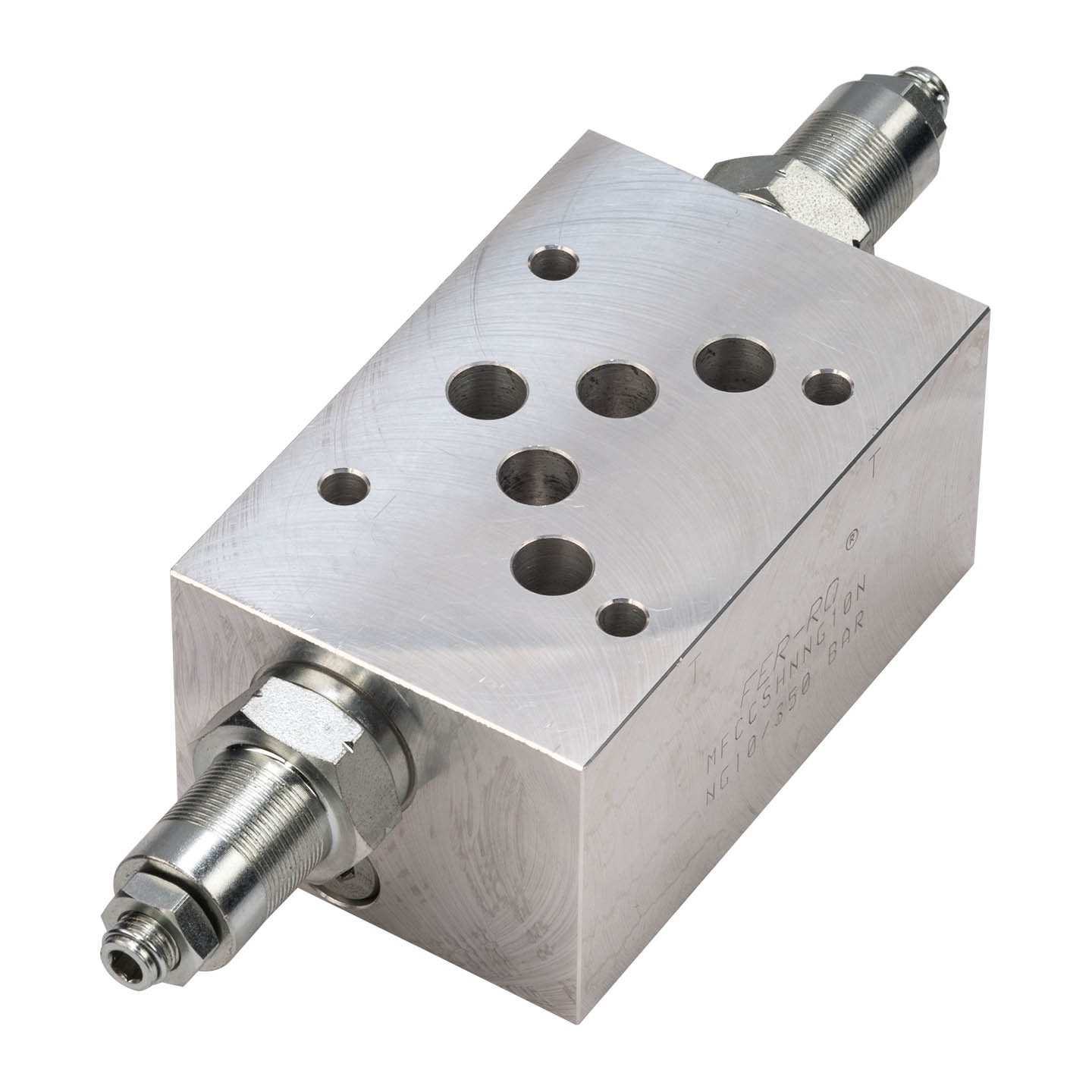

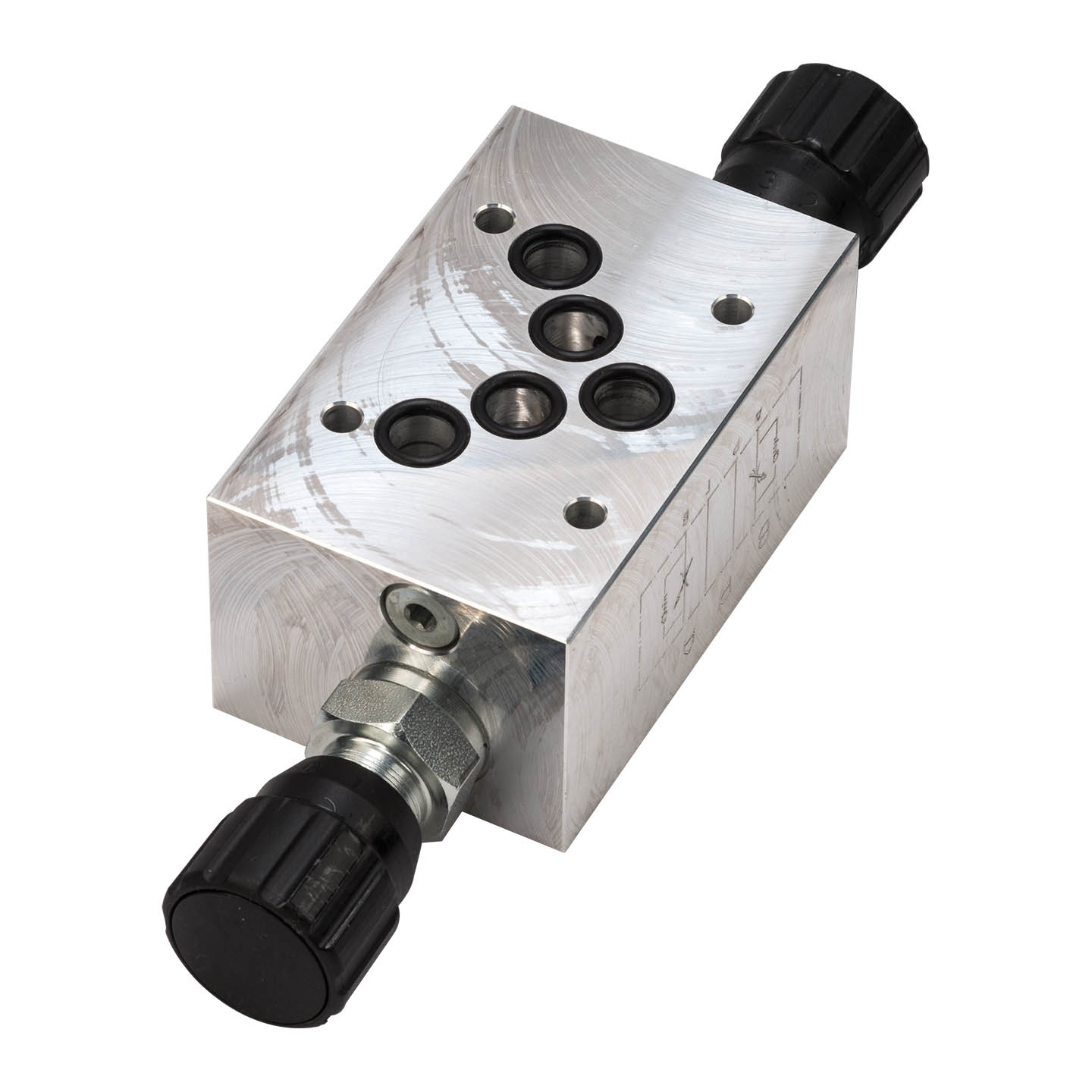

PHOTOS
