MOCV SERIES NG06 MODULAR OVER CENTER VALVES (SINGLE)

It is used to lock the forward and backward movement of the cylinder to prevent unwanted situations that occur during rupture of hoses or pipes. It has a wide use in high pressure cylinders and engineering applications. NG06 Modular Over Center Valves are internally pilot stimulated and no external pilot signal is required. NG06 Modular Over Center Valves are connected to the subplates and work compatible with other valves.  Mounting surface is NG06. NG06 Modular Over Center Valves are widely used in mobile and other industrial areas.

Material  Aluminium
Connection Type  NG06 Connection
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

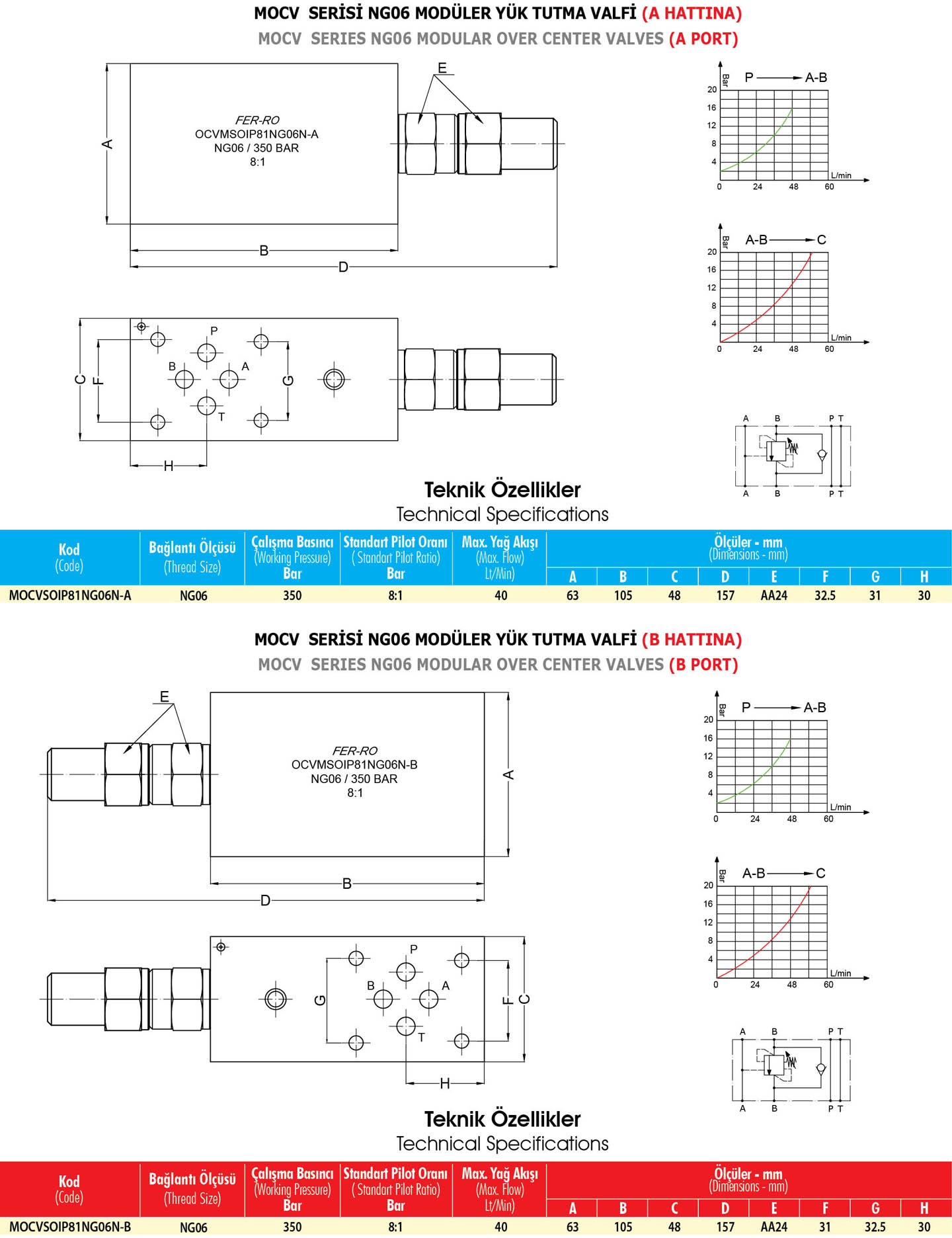

TECHNICAL DATA

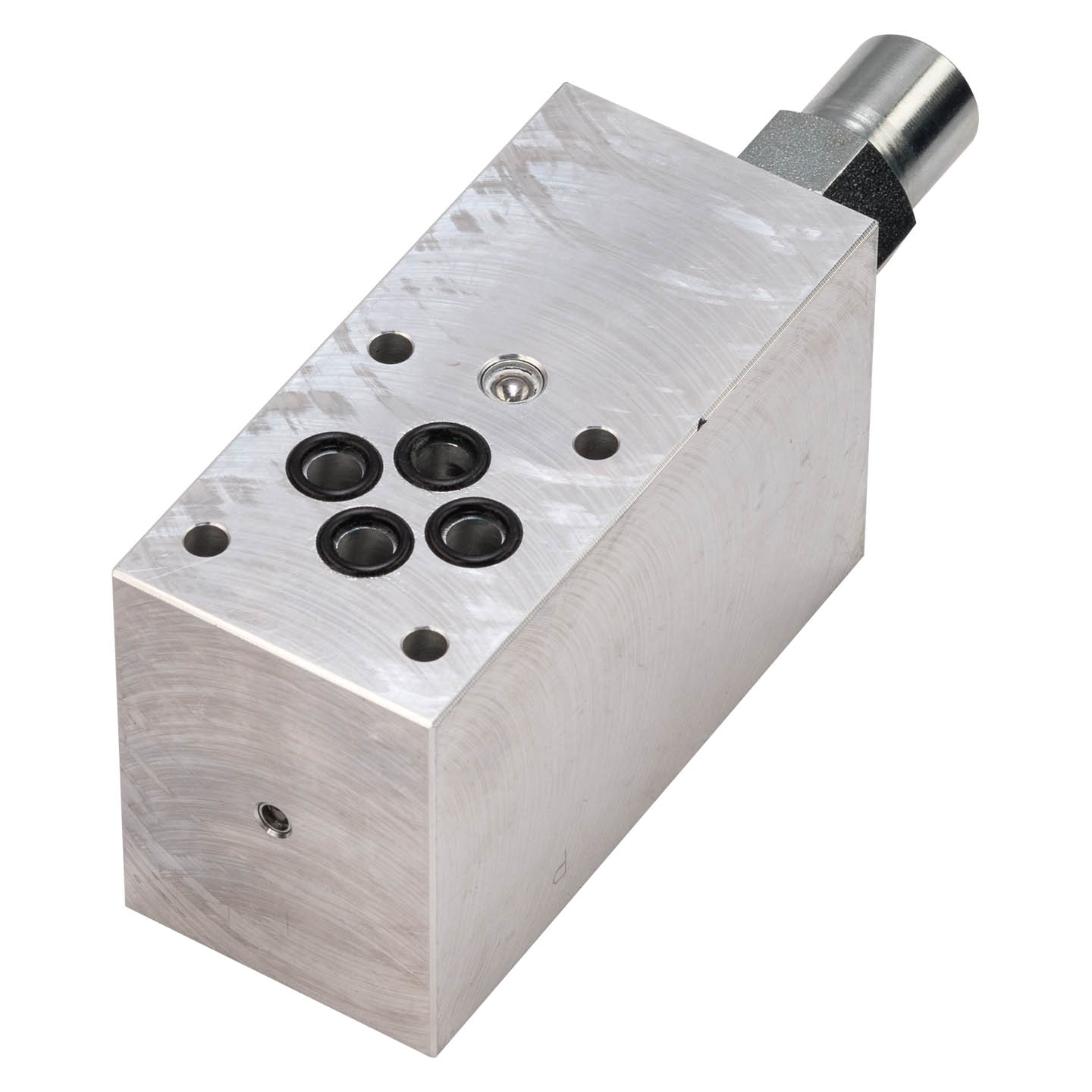

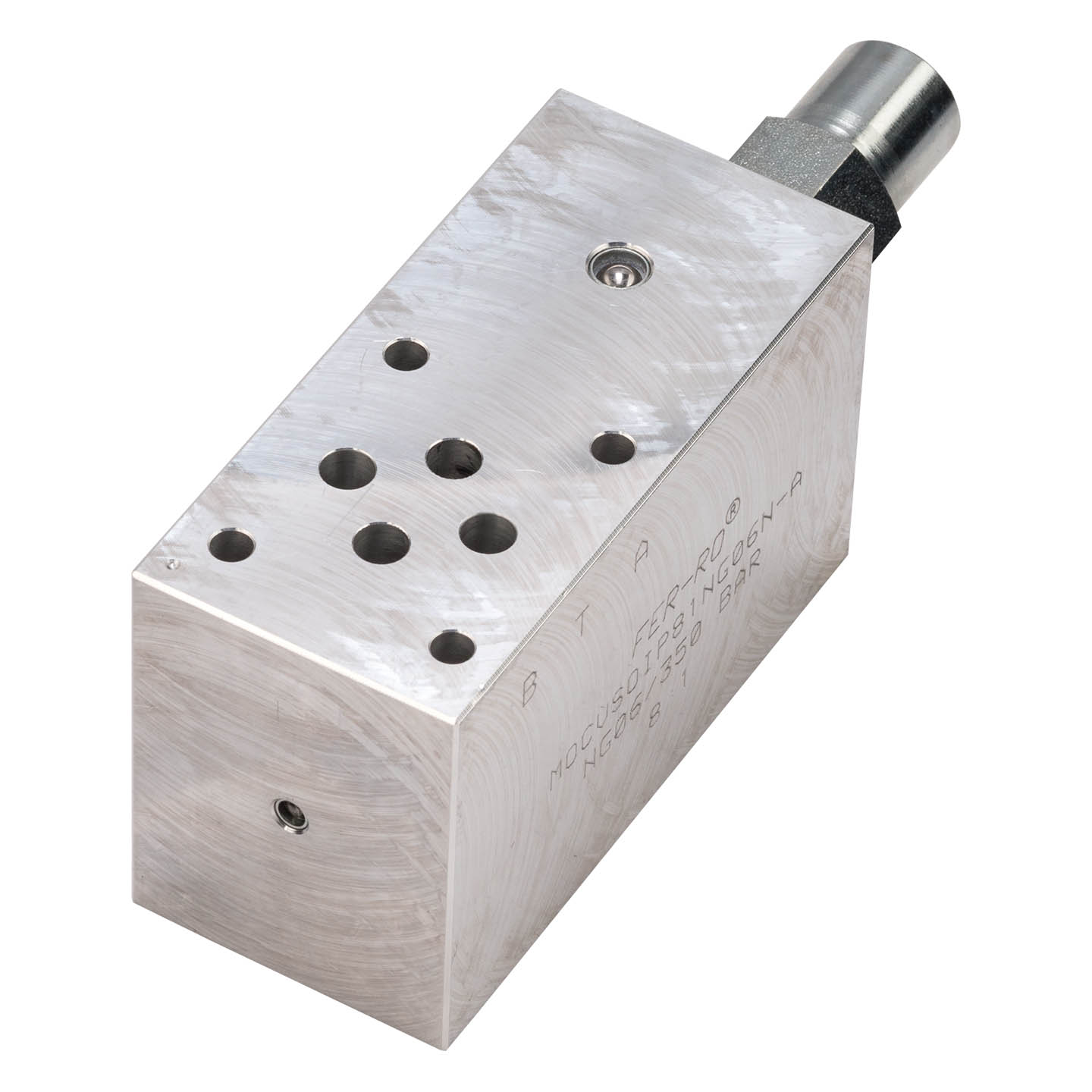

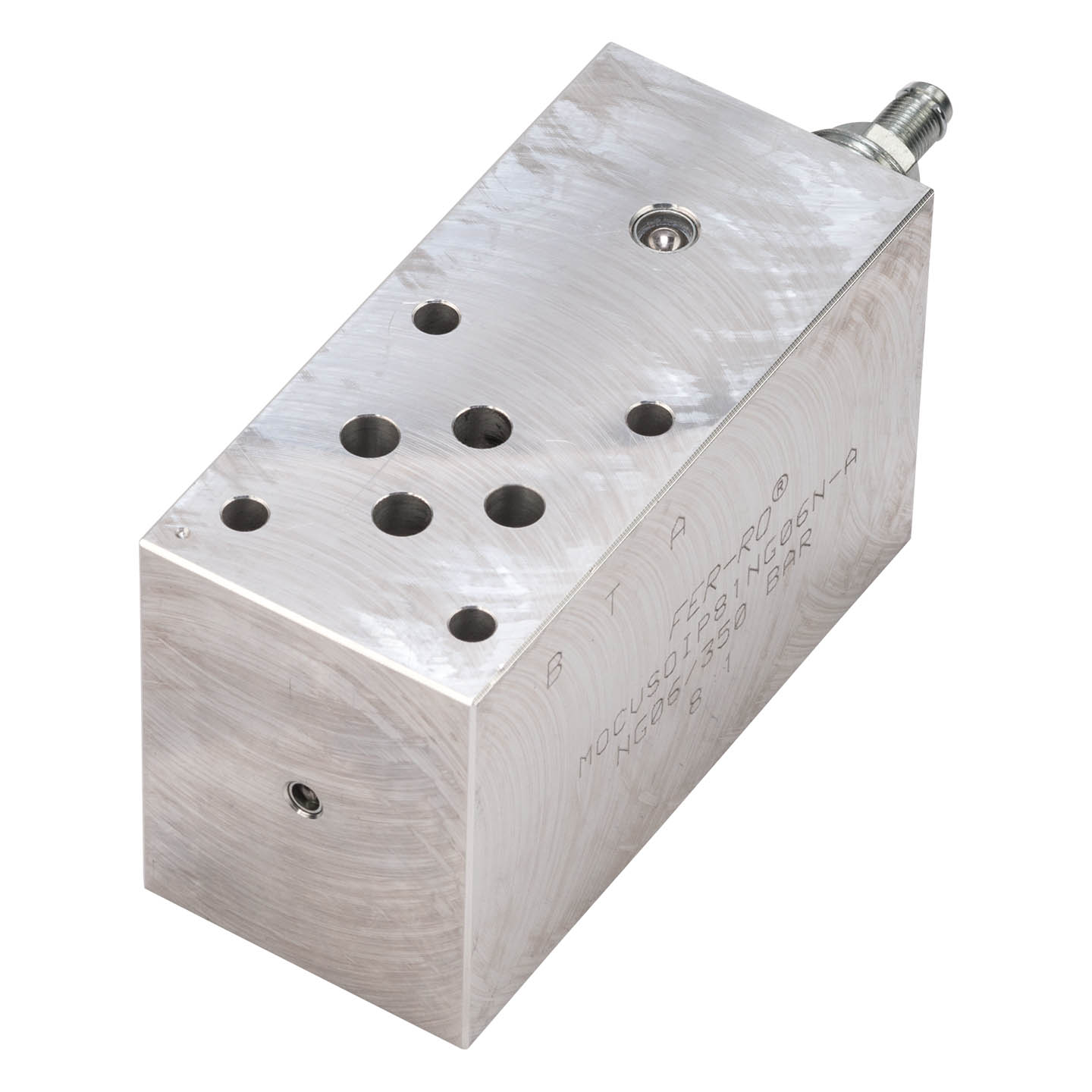

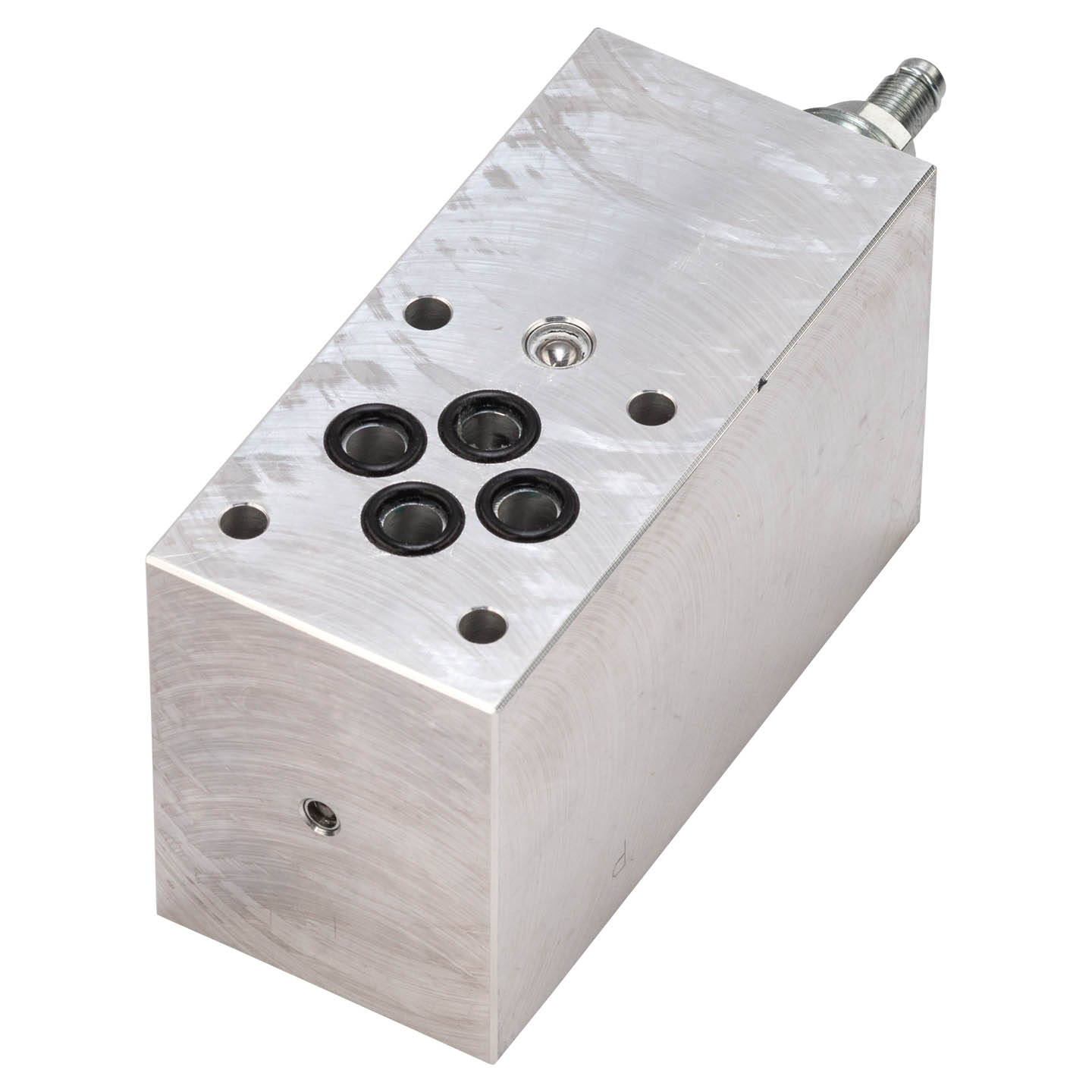

PHOTOS
