QC SERIES HYDRAULIC QUICK COUPLINGS

QC Series Hydraulic Quick Couplings are used in many agricultural and industrial fields.
Male nipples of QC Series Hydraulic Quick Couplings are hardened by heat treatment.



Interchangeability ISO 7241-A
Shut-off System Poppet Valve
Material  Carbon Steel
Thread Size  BSP (Upon Request: Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Heat Treatment  Male nipple
Connection System  Pulling back the sleeve
Disconnection System  Pulling back the sleeve
Connection Under Pressure  Not Allowed
Disconnection Under Pressure  Not Allowed
Upon Request VITON & High temperature resistant
  special spring (-30 °C & +225 °C), Polyurethane (PU)
Applications  Agriculture, aviation, construction, production,
  national defense, mobile hydraulic, trailer trucks

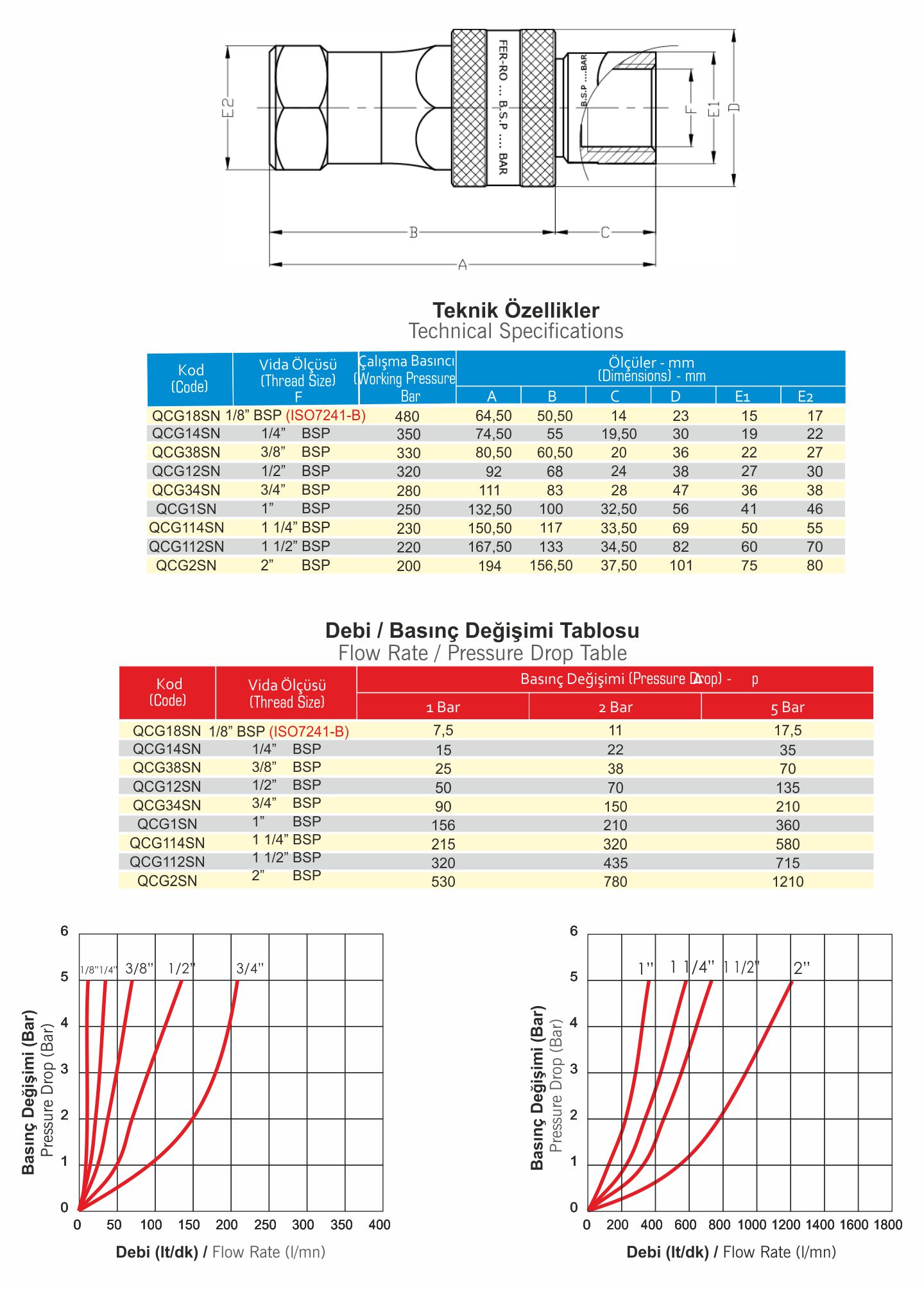

TECHNICAL DATA
PHOTOS

Video
