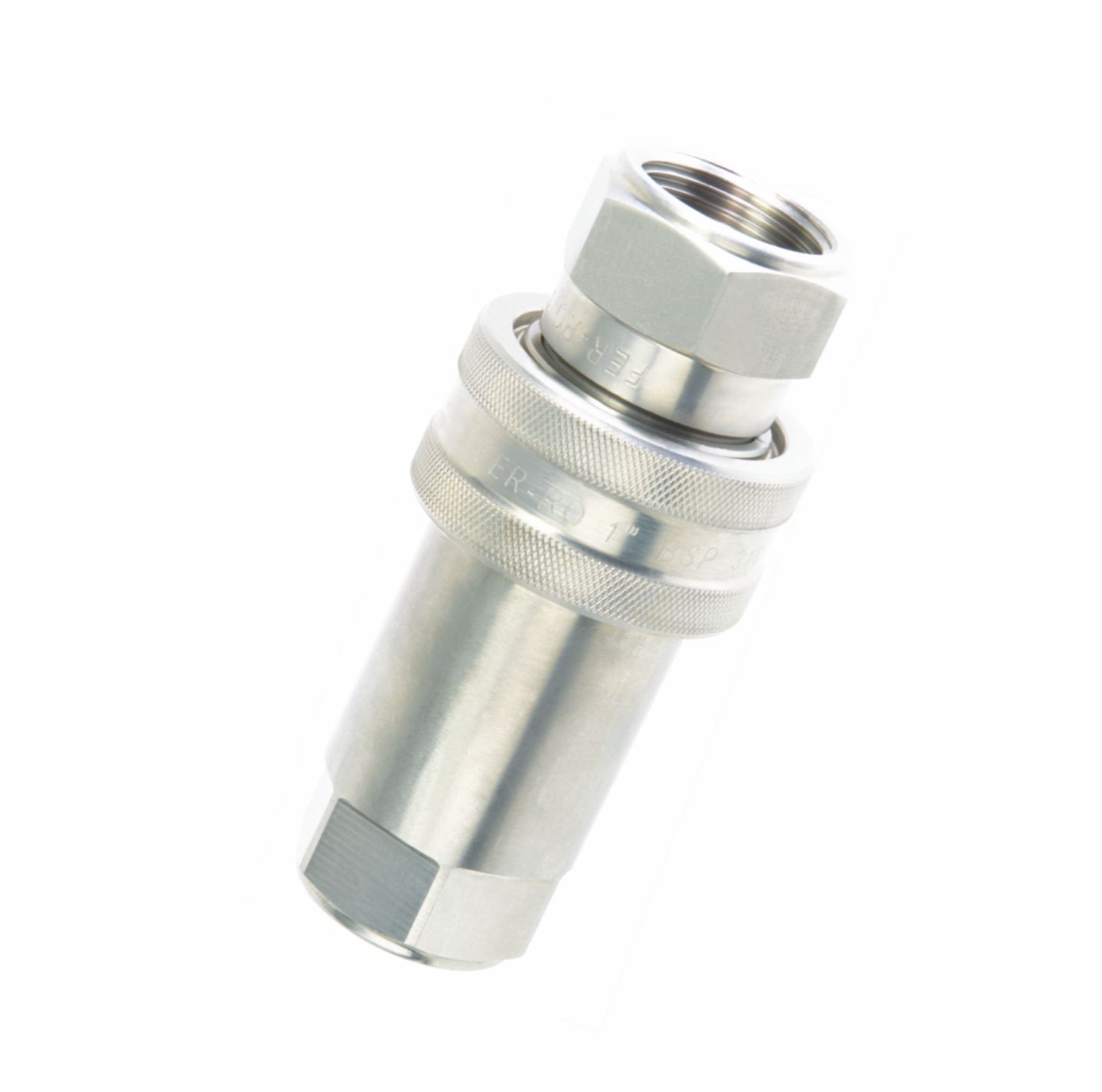

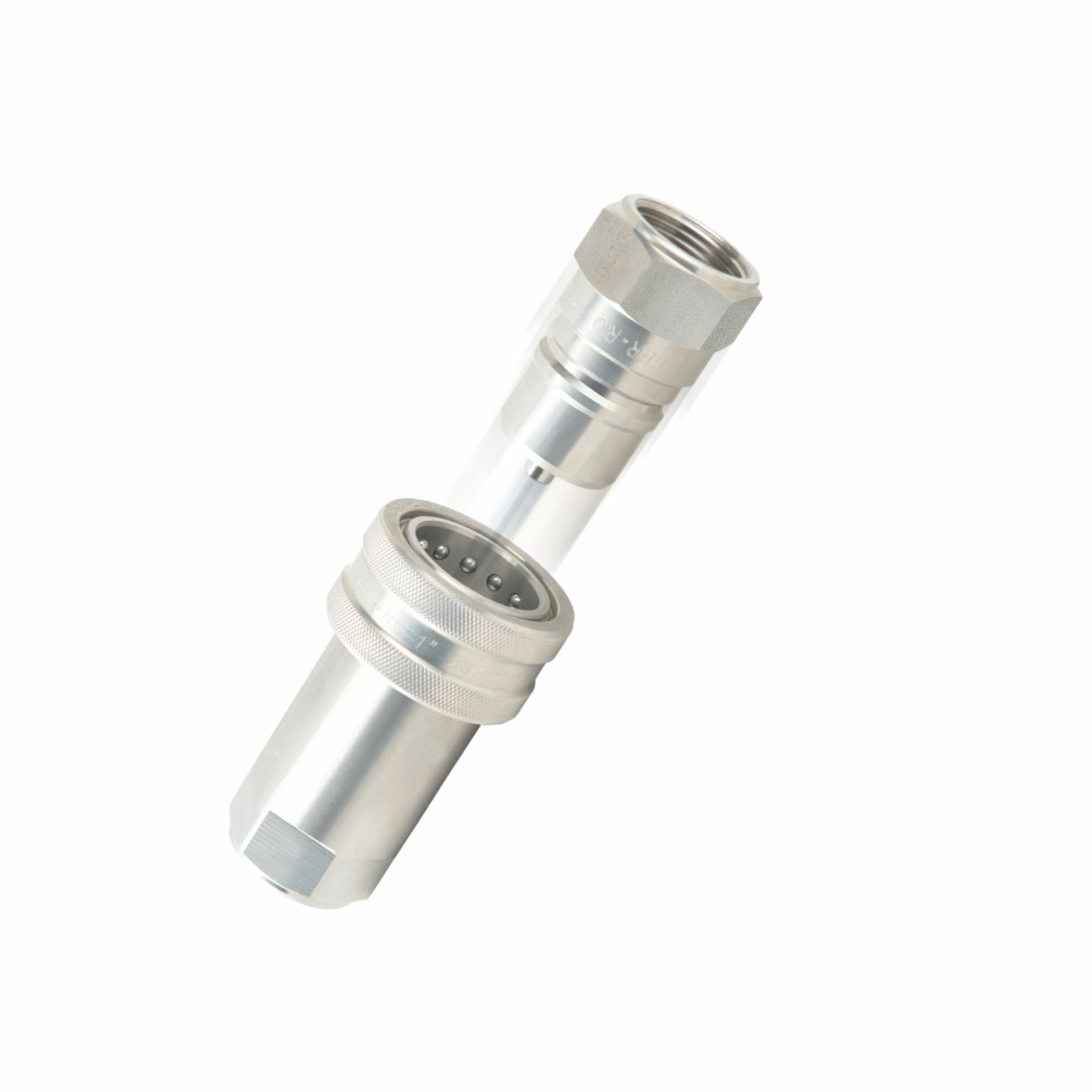

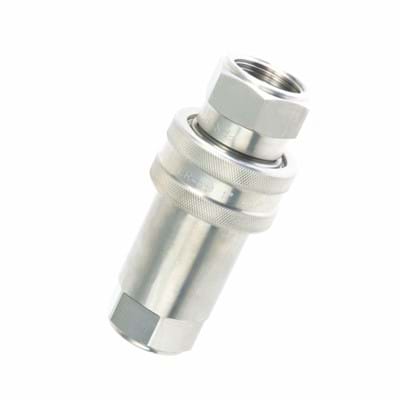

QCSS Series Quick Couplings are made of AISI 316-L stainless steel raw material have an excellent resistance to all kind of chemicals and corrosion.
For QCSS provided with VITON sealing material, high temperature special springs are used.
| Interchangeability | ISO 7241-A |
| Shut-off System | Poppet Valve |
| Material | AISI 316-L stainless steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |

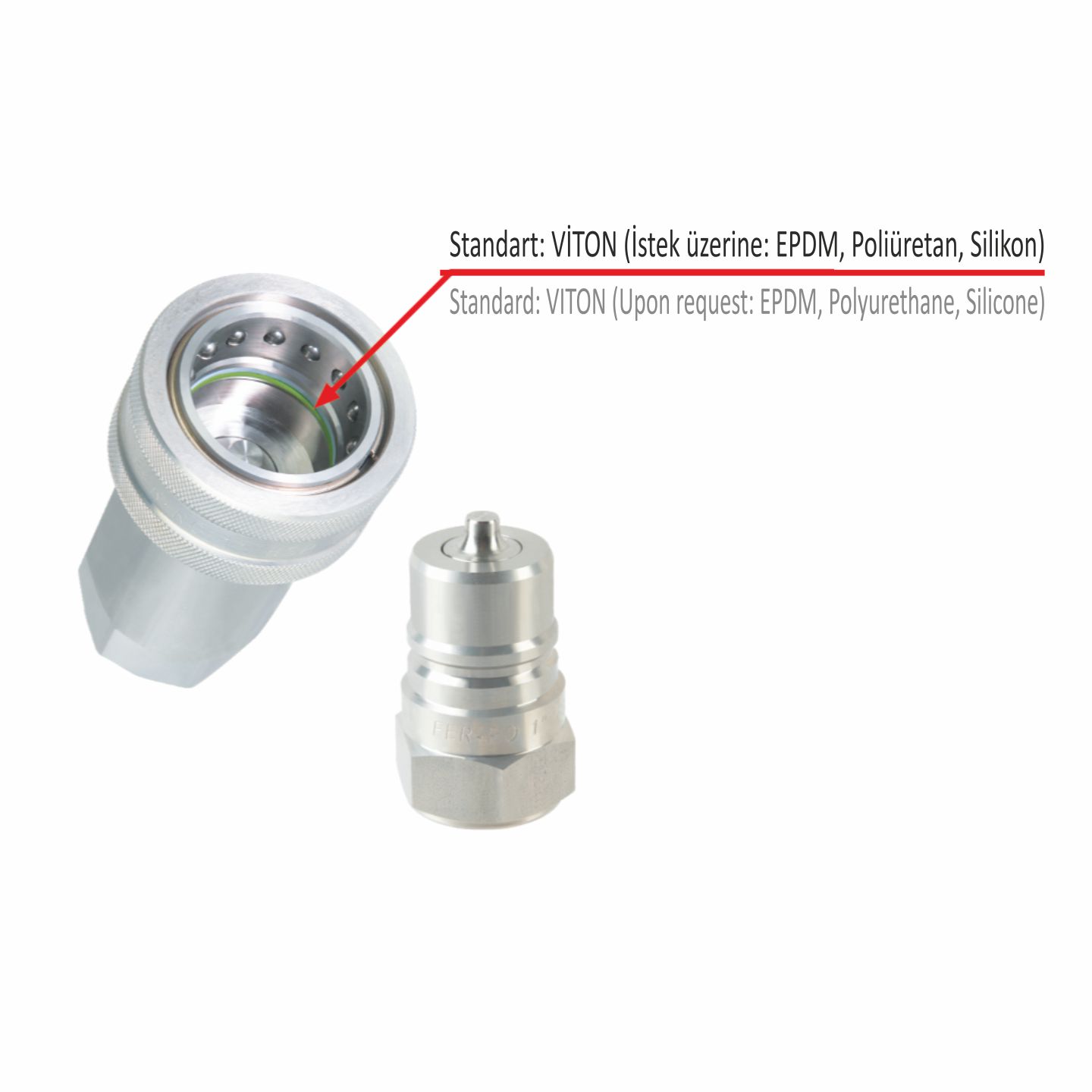

| Sealing | VITON |
| Working Temperature | -30 °C and +225 °C |
| Connection System | Pulling back the sleeve |
| Disconnection System | Pulling back the sleeve |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Upon Request | EPDM ( For steam applications), Polyurethane (PU), Silicone (MVQ) |
| Applications | Marine, food, pharmacy, medical, chemical, irrigation, paper, paint, textile, gas and aviation |

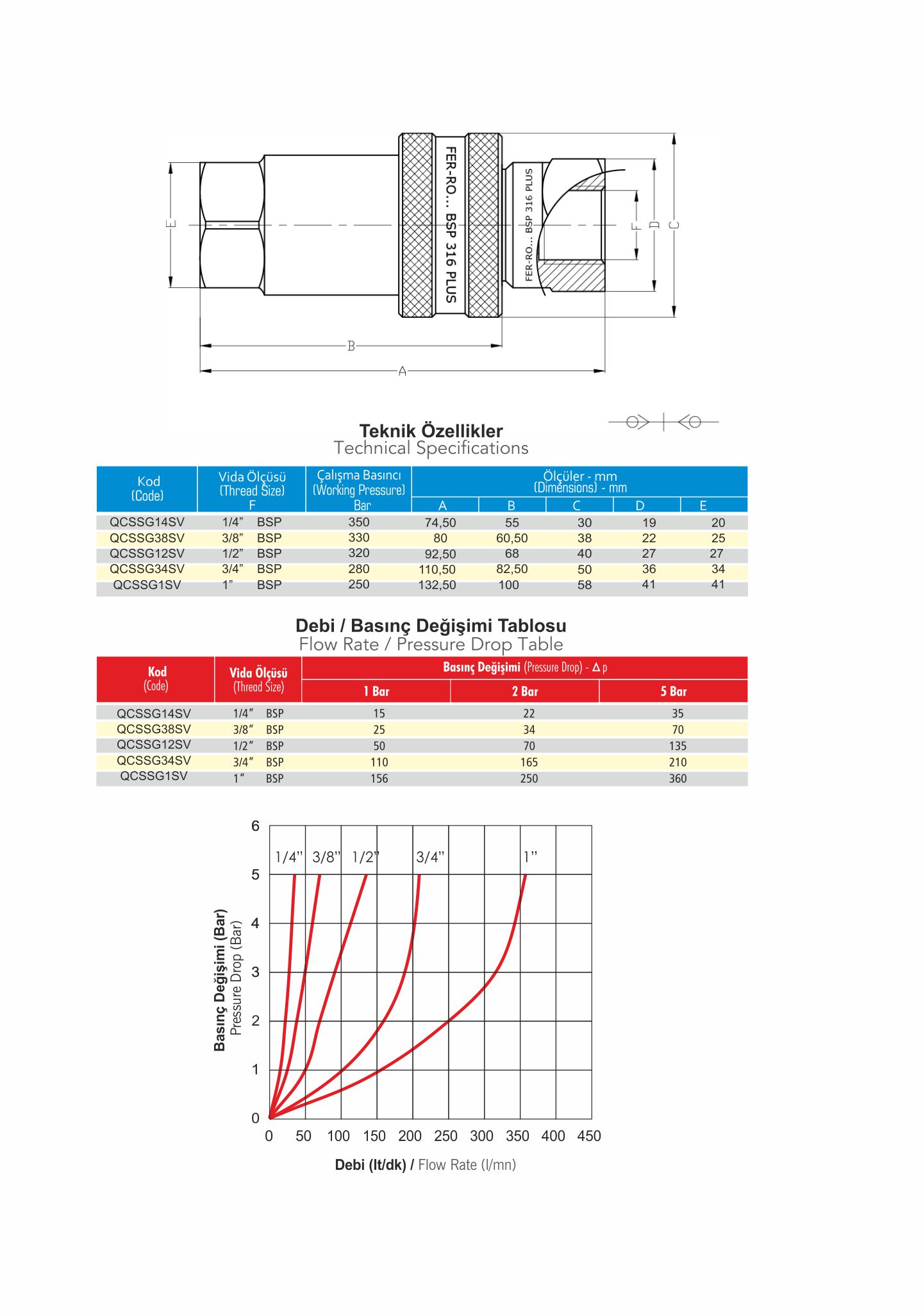

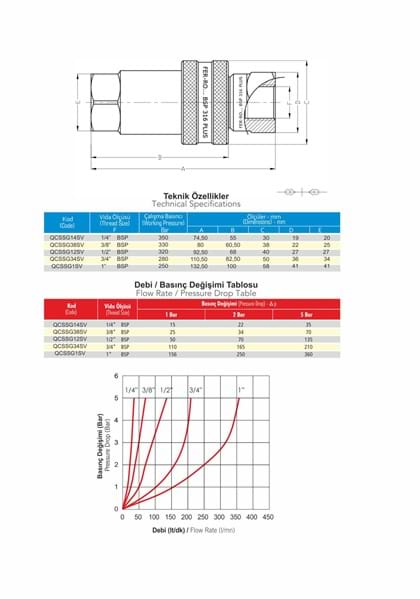

TECHNICAL DATA
