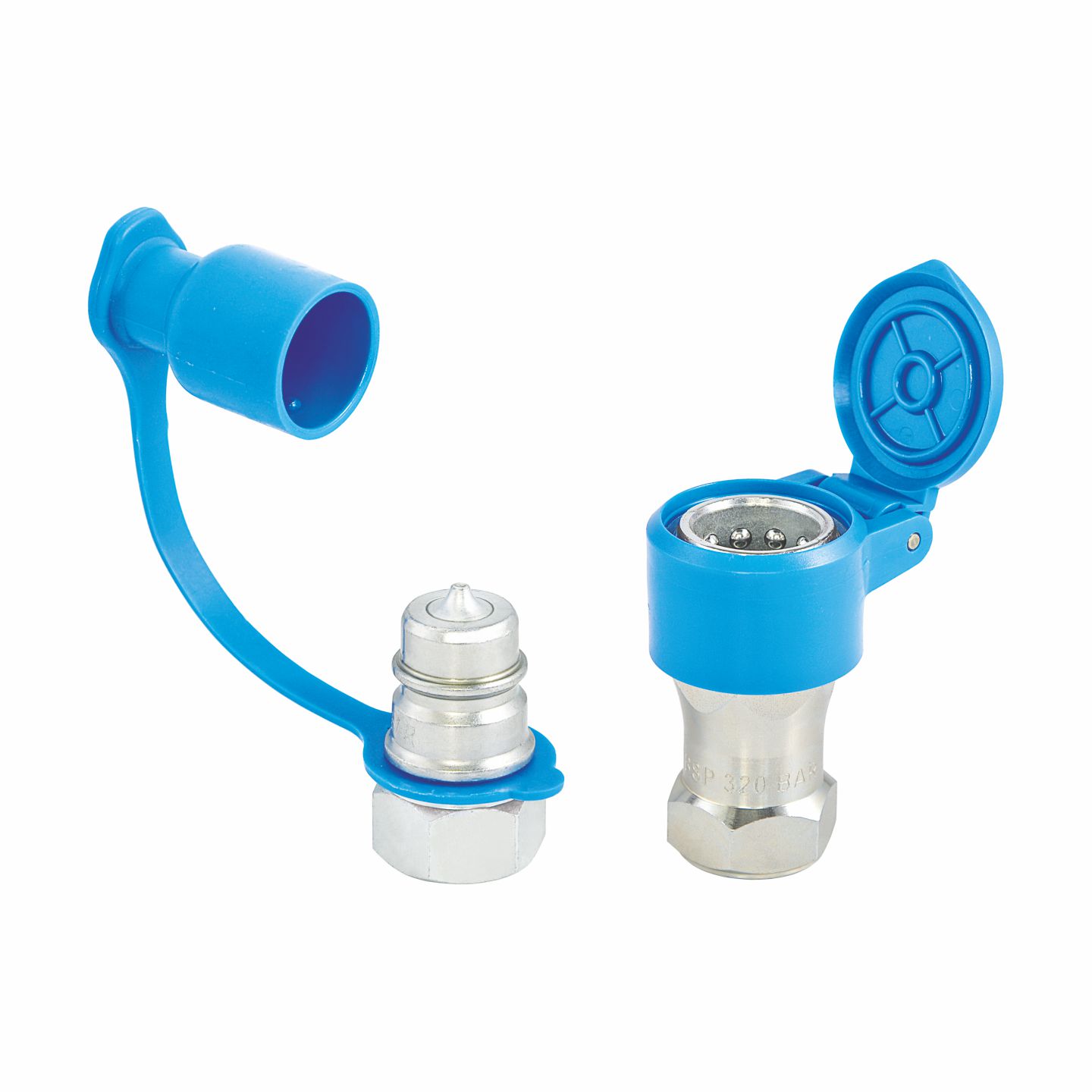

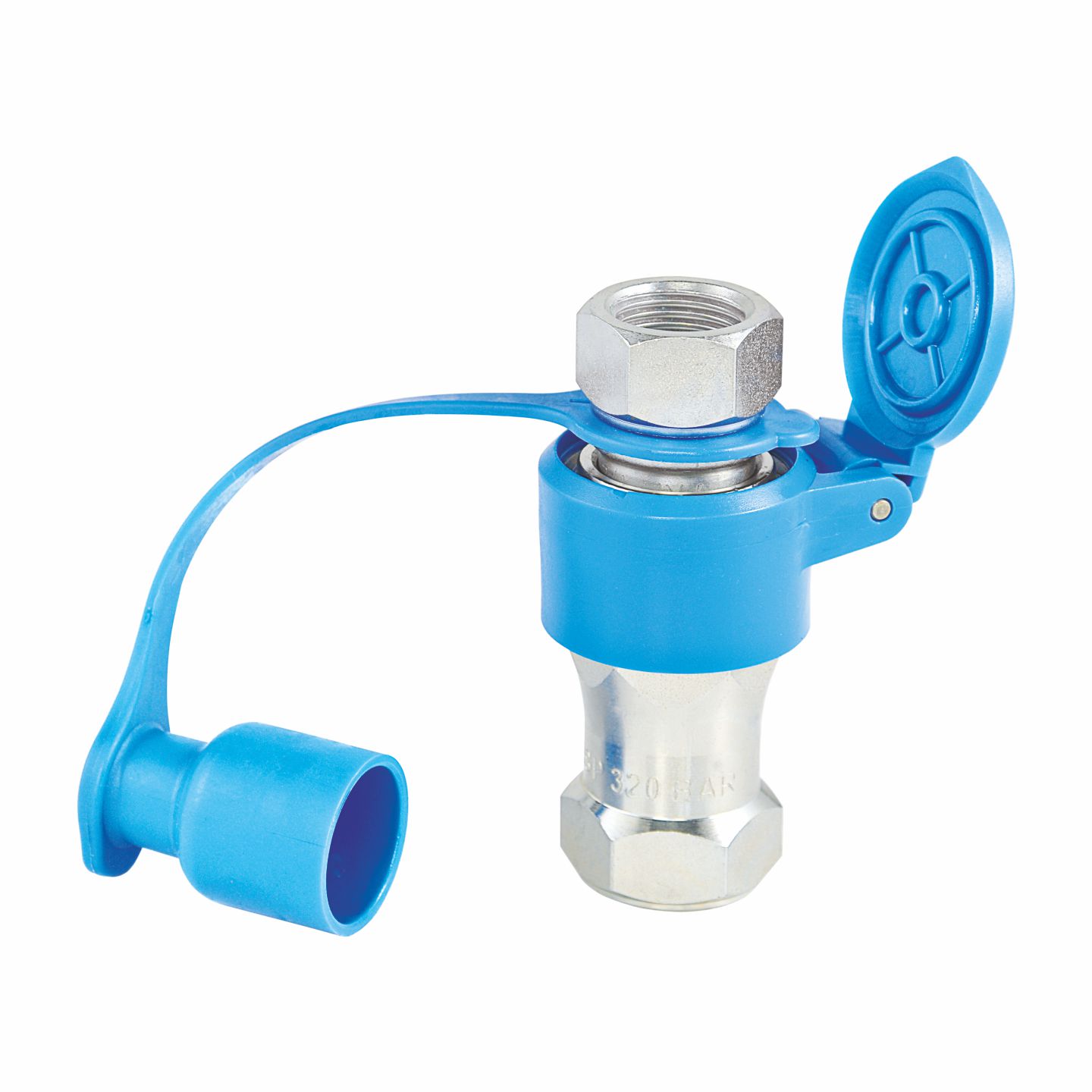

Main future of QCAC Series Hydraulic 1/2" BSP threaded Quick Couplings With Automatic Spring Cover is an impact-resistant built-in automatic spring cover on ring of female body.
Male nipples of QCAC Series Hydraulic Quick Couplings are hardened by heat treatment.
Blue, yellow, red, green and black colurs are available.
Automatic spring cover system prolongs couplers lifetime by protecting it from dust and dirt, especially for tractors and agricultural machines.
| Interchangeability | ISO 7241-A |
| Shut-off System | Poppet Valve |
| Material | Carbon steel |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Heat Treatment | Male nipple |
| Connection System | Pulling back the sleeve |
| Disconnection System | Pulling back the sleeve |
| Connection Under Pressure | Not Allowed |
| Disconnection Under Pressure | Not Allowed |
| Upon Request | VITON & High temperature resistant special spring (-30 °C & +225 °C) |
| Applications | Agriculture, construction, production, national defense, |
| mobile hydraulic |

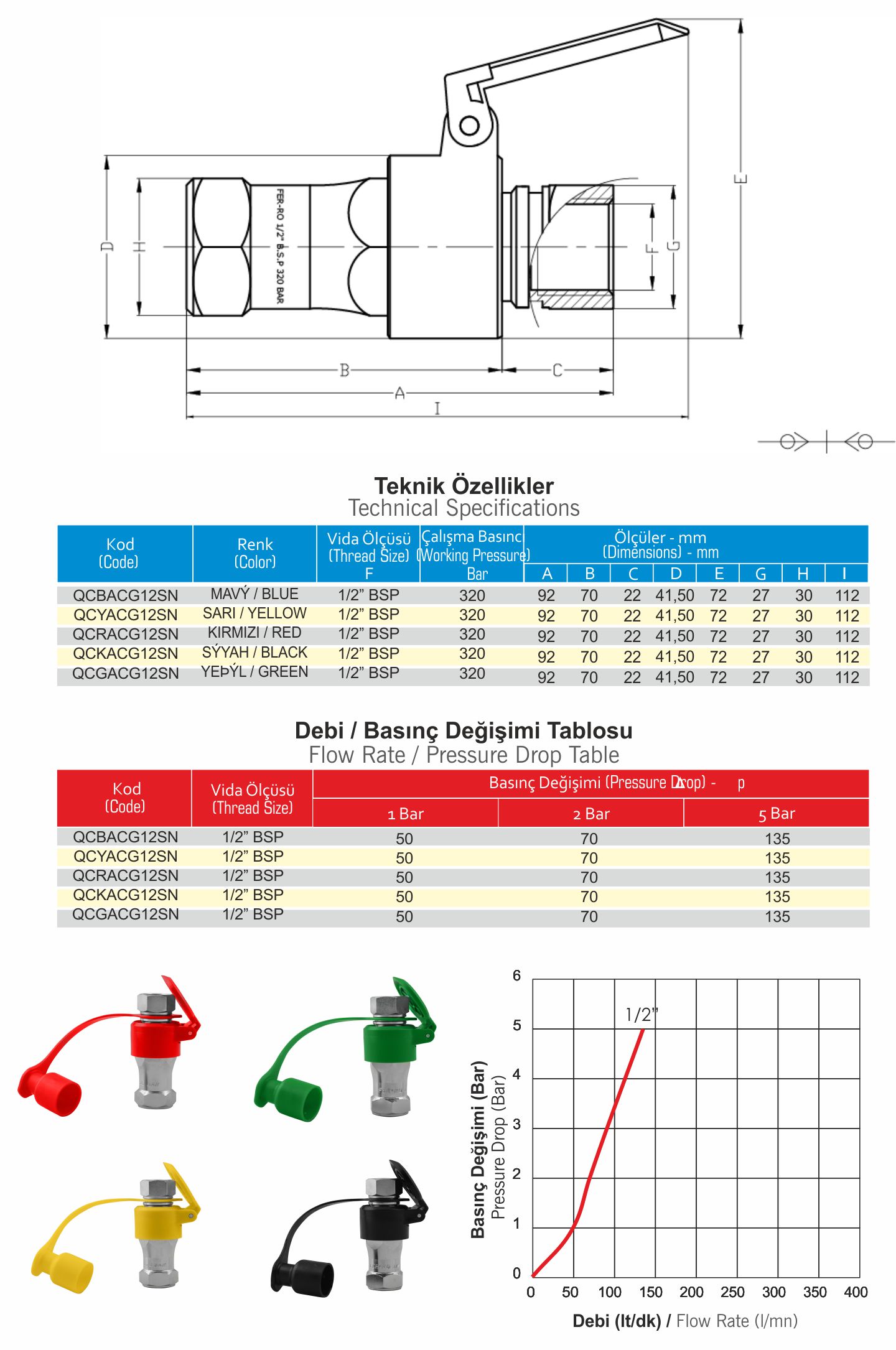

TECHNICAL DATA
PHOTOS
