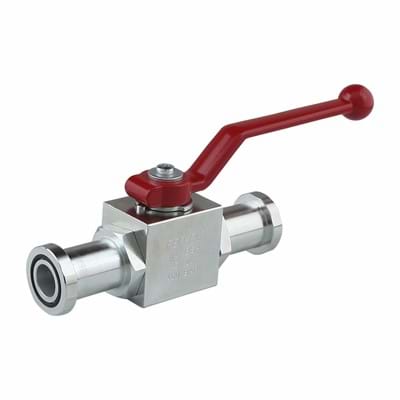

BV2 SERIES HYDRAULIC 2-WAY BALL VALVES (WITH SAE FLANGE)

BV2 Series Hydraulic 2-Way Ball Valves with SAE Flange are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV2 Series Ball Valves with SAE Flange can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated.
Ball Valves with SAE Flange are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids.



Body Material Carbon steel
Ball Material  Hard chrome coated carbon steel.
Thread Size BSP, NPT
Ball Seats Delrin (POM)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Upon Request VITON
Applications Excavators, plastic injection mould machines,
  chemical processing plants, cranes, tankers,
  dump trucks and general hydraulic applications

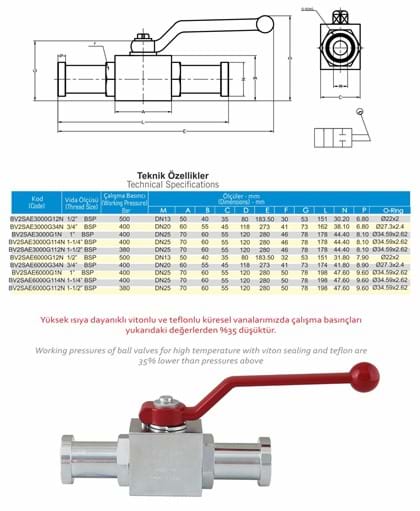

TECHNICAL DATA
PHOTOS
