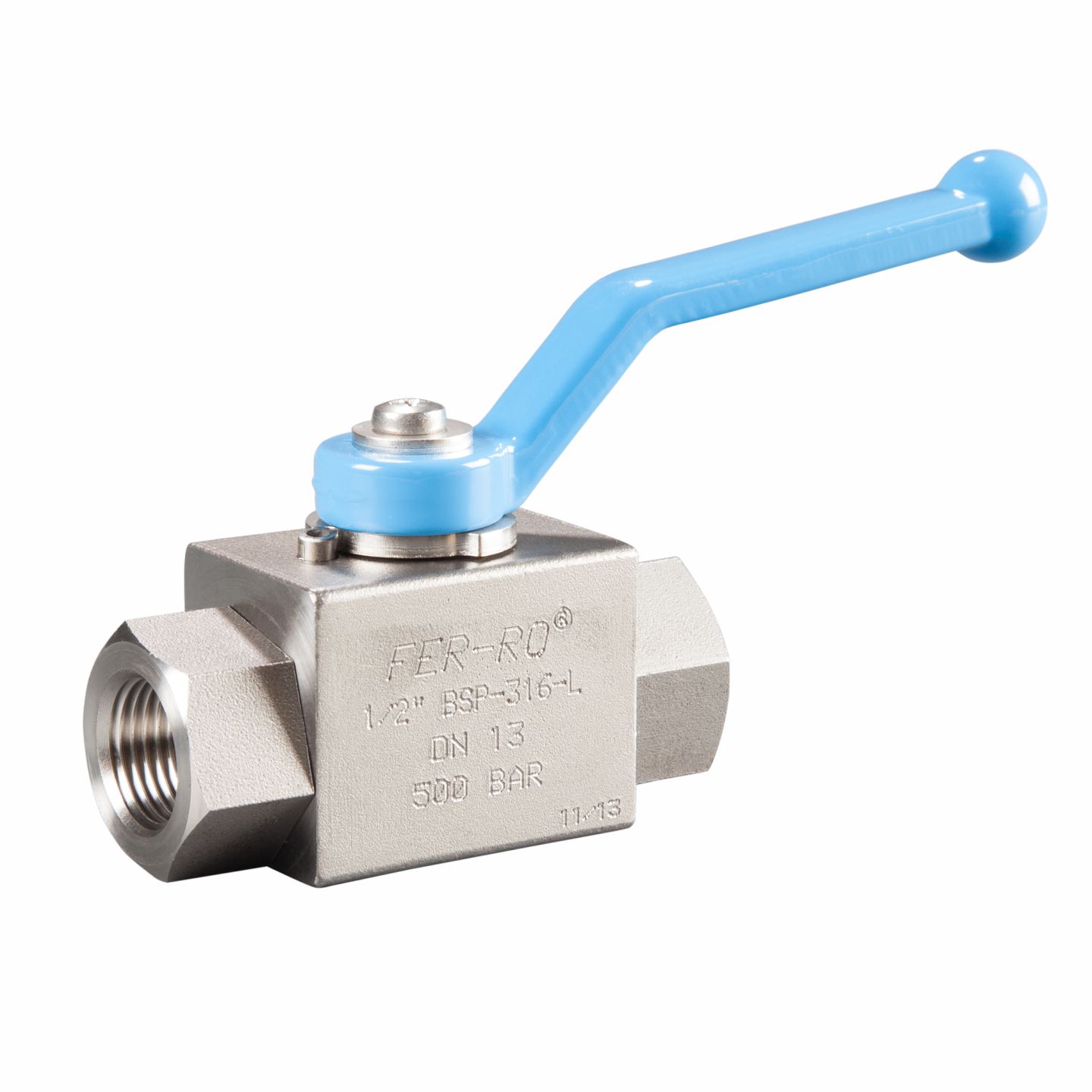

BV2SS SERIES HYDRAULIC 2-WAY AISI 316-L STAINLESS STEEL BALL VALVES

BV2SS Series 2-Way AISI 316-L Stainless Steel Ball Valves are completely made of AISI 316-L stainless steel row material have an excellent resistance to all kind of chemical and corrosion.
BV2SS Series Ball Valves can be locked in the open or closed position through locking washer on the circle pin.



Body Material  AISI 316-L stainless steel
Ball Material AISI 316-L stainless steel
Thread Size  BSP (Upon Request: NPT, Metric)
Ball Seats  Delrin (POM)
Sealing Nitrile O-ring (NBR)
Working Temperature -30 °C and +225 °C
Upon Request  VITON (With teflon seating)
  EPDM ( For steam application)
 Applications  Marine, food, pharmacy, medical, chemical, irrigation,
  paper, paint, textile, gas and aviation

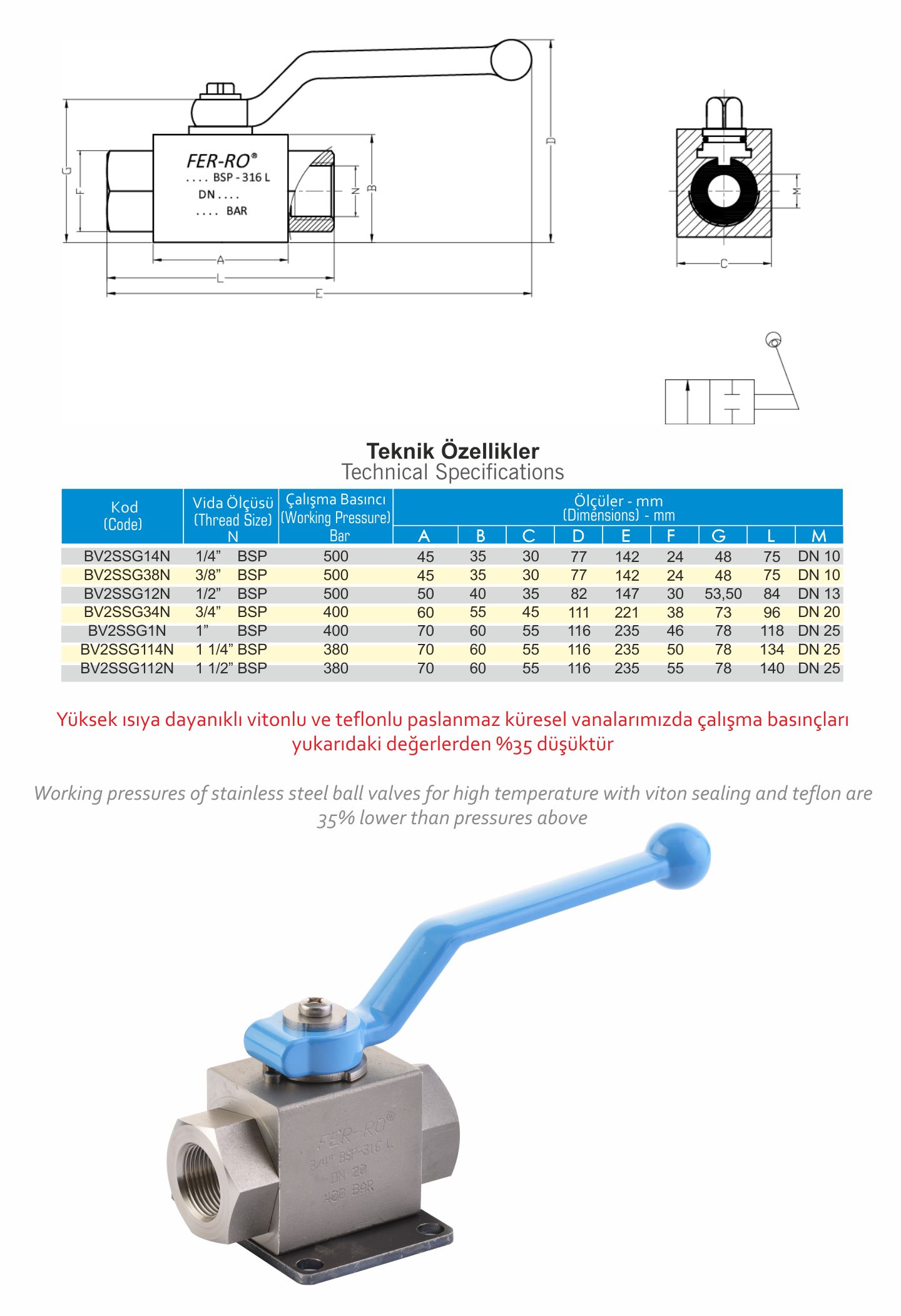

TECHNICAL DATA
PHOTOS
