BV2FB Series Hydraulic 2-Way Full Bore Ball Valves with SAE Flange are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV2FB Series ball valves with SAE Flange can be locked in the open or closed position through locking washer on the circle pin.
Internal ball is hard chrome coated steel and delrin (POM) seated.
BV2FB Series ball valves with SAE Flange are suitable for LPG, CNG and other gas applications, as well as hydraulic and other industrial fluids.
| Body Material | High Grade Forged Steel |
| Ball Material | Hard chrome coated carbon steel. |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Request | VITON |
| Applications | Excavators, plastic injection mould machines, |
| chemical processing plants, cranes, tankers, | |
| dump trucks and general hydraulic applications |

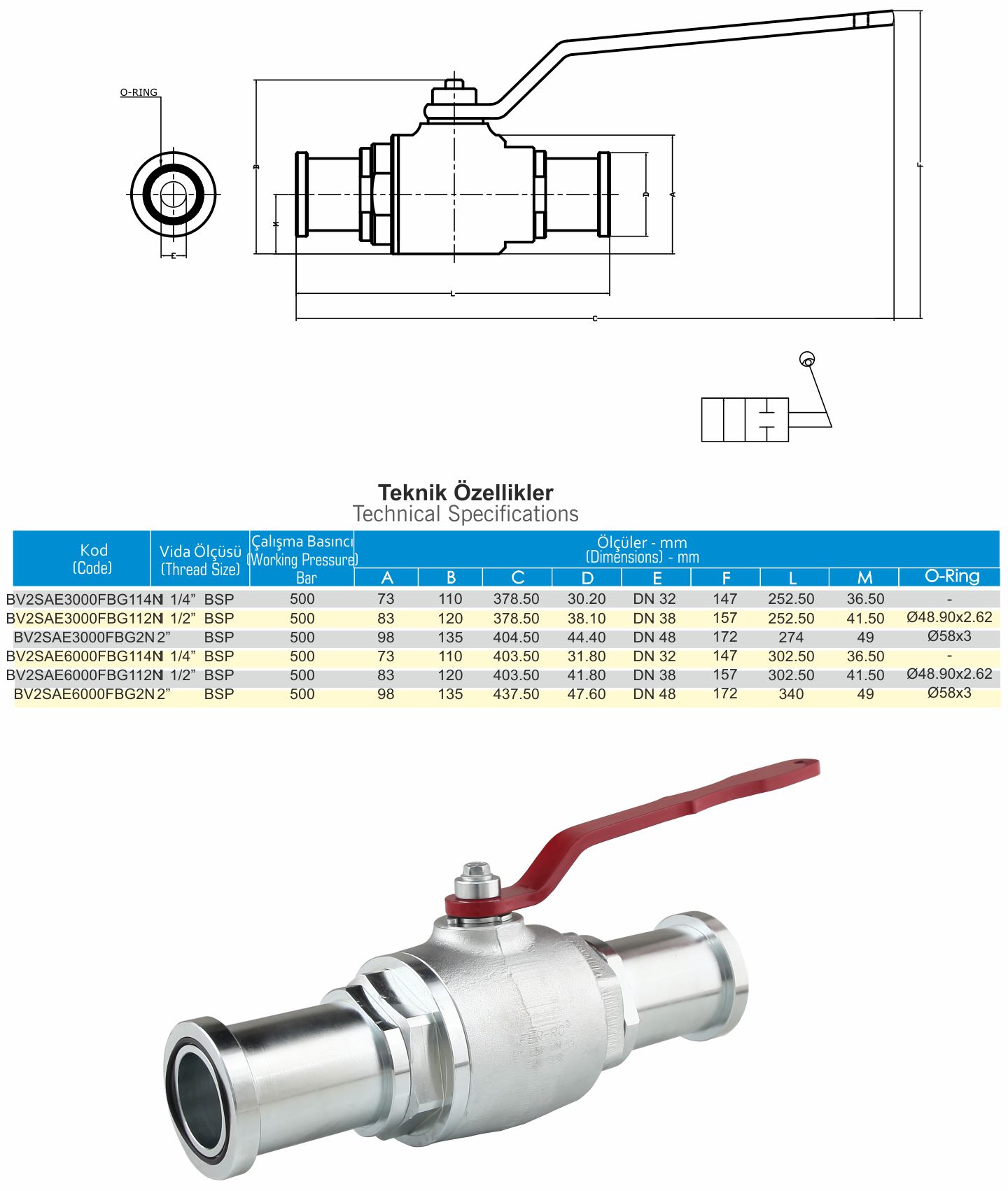

TECHNICAL DATA

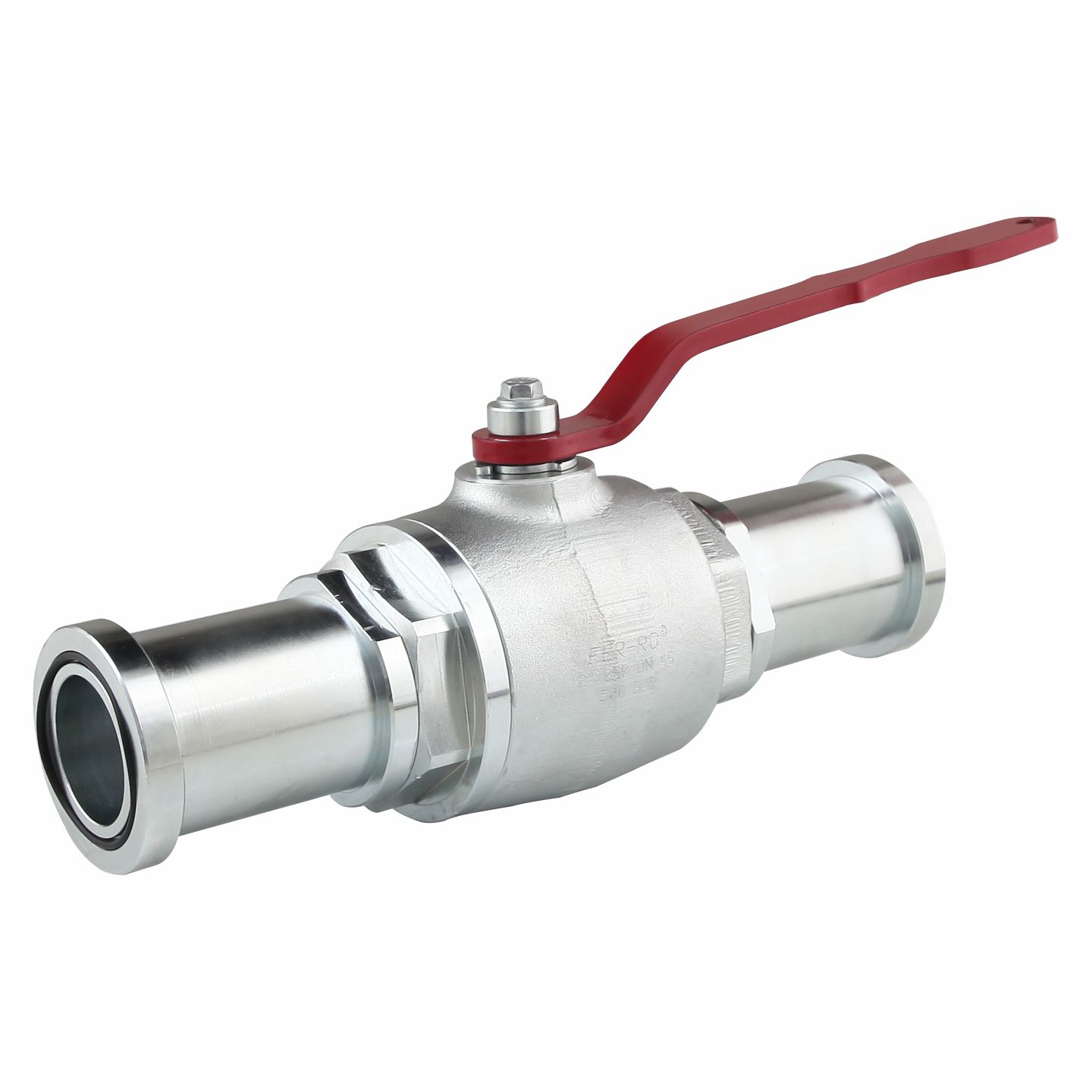

PHOTOS
