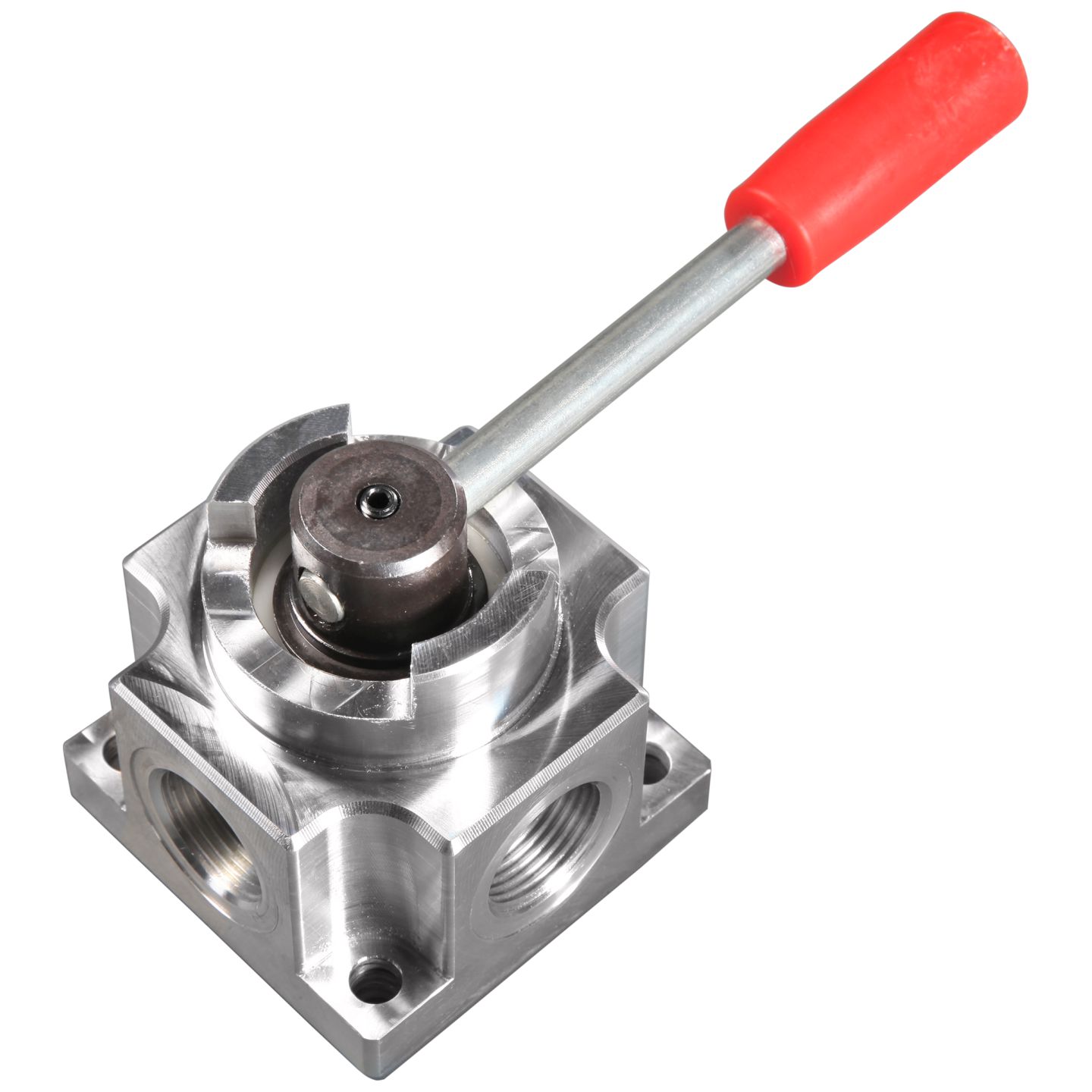

For BV3A Series Hydraulic 3-Way Aluminium Ball Valves, 2 different types, Open Center and Closed Center, are available.
3-way ball valves are used for applications where one input is directed to two other outputs, and their easy operation provides unrestricted flow.
Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV3A Series 3-way ball valves are widely used for mobile and on-vehicle hydraulic applictions.
| Body Material | Aluminium |
| Thread Size | BSP (Upon Request: NPT, Metric) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Upon Request | VITON |
| Applications | Excavators, cranes and on-vehicle hydraulic applications |

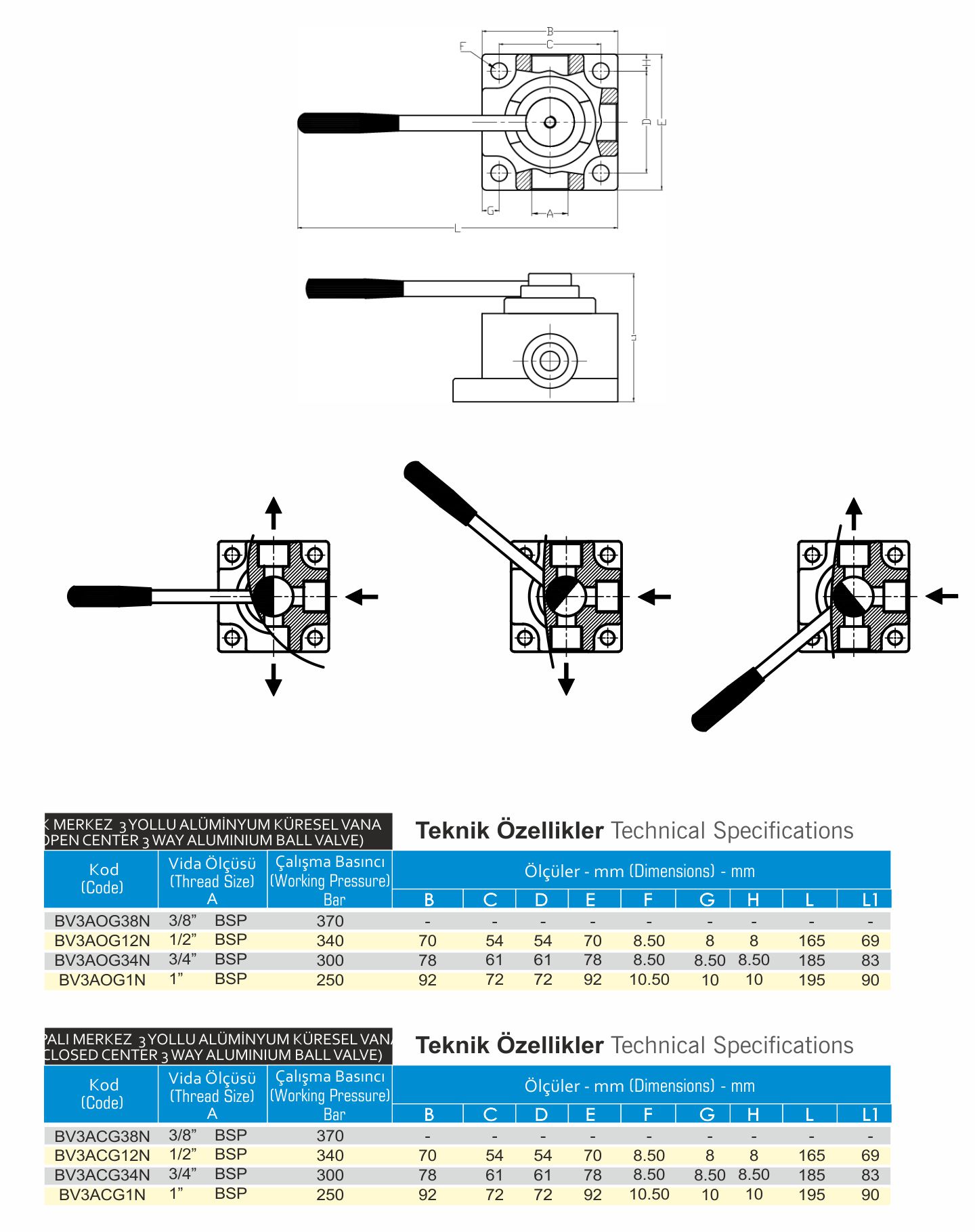

TECHNICAL DATA
PHOTOS
