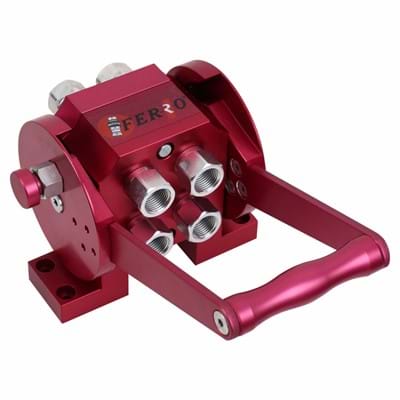

MCFF SERIES HYDRAULIC FLAT FACE MULTI COUPLINGS

MCFF series Hydraulic Flat Face Multi Couplings allow for easy and fast connection of multiple couplings at once. The lock mechanism prevents unintentional opening as it ensures that the circuits do not interfere.



Interchangeability ISO 16028
Shut-off System Flat Valve
Material  Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Heat Treatment  Male nipple
Connection System  Pulling back the sleeve
Disconnection System  Pulling back the sleeve
Connection Under Pressure  Not Allowed
Disconnection Under Pressure Not Allowed
Upon Request VITON & High temperature resistant special spring (-30 °C & +225 °C),
  Polyurethane (PU)
Applications  Construction, production, national defense, aviation, mobile
  hydraulic, chemical, mining

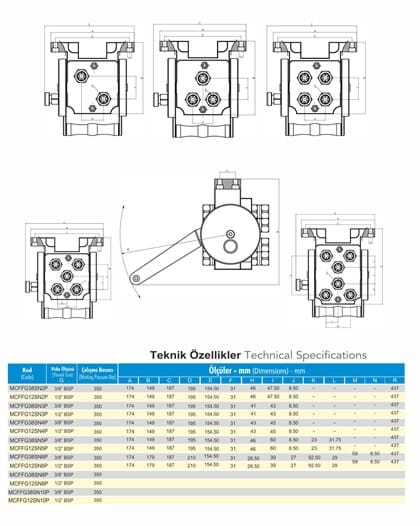

TECHNICAL DATA
