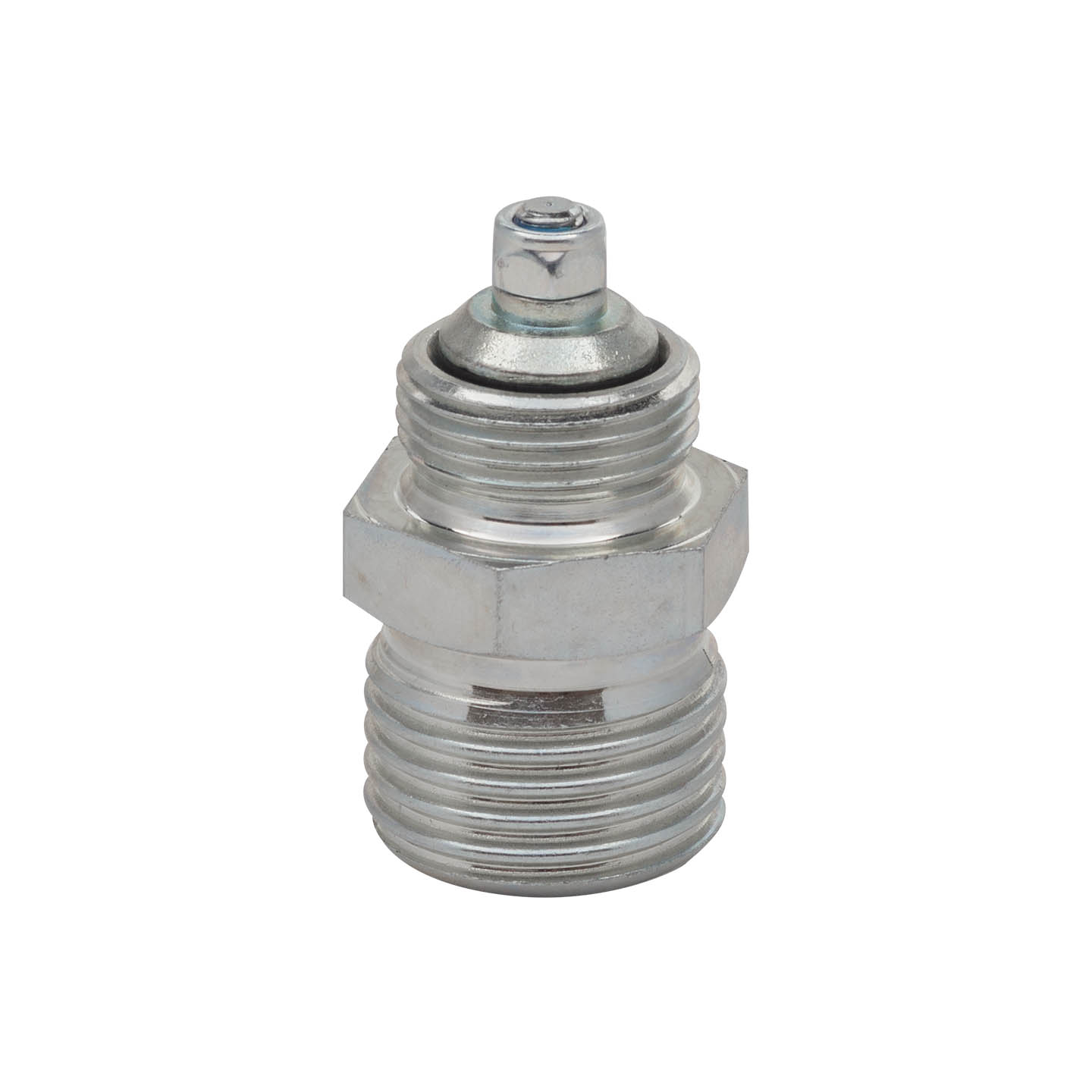

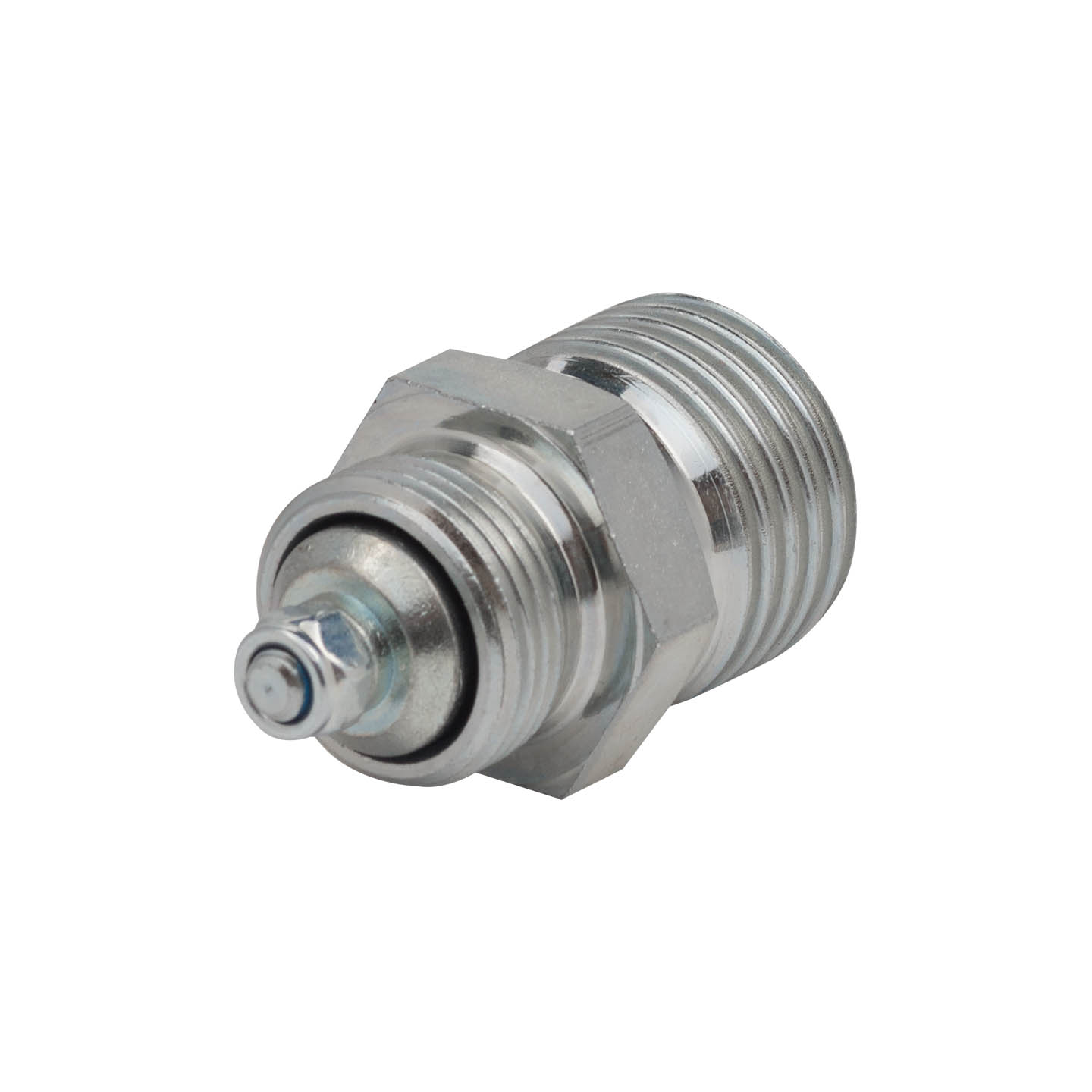

CVMN SERIES MINING CHECK VALVE NIPPEL

CVMN Series Hydraulic Mining Check Valves are two-way valves that allow
hydraulic fluid to flow only one way along the line. It is used in the by-pass
operation of the throttle points, in preventing the fluid while traveling, as a relief valve to the tank and as a pre-tension (holding) valve to generate a certain
counter pressure in the circuits.
CVMN Series Hydraulic Mining Check Valves are used in mining industry
applications.

Body Material Carbon Steel
Connection Type BSP - Rd
Sealing Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Applications General Mining Sector Applications

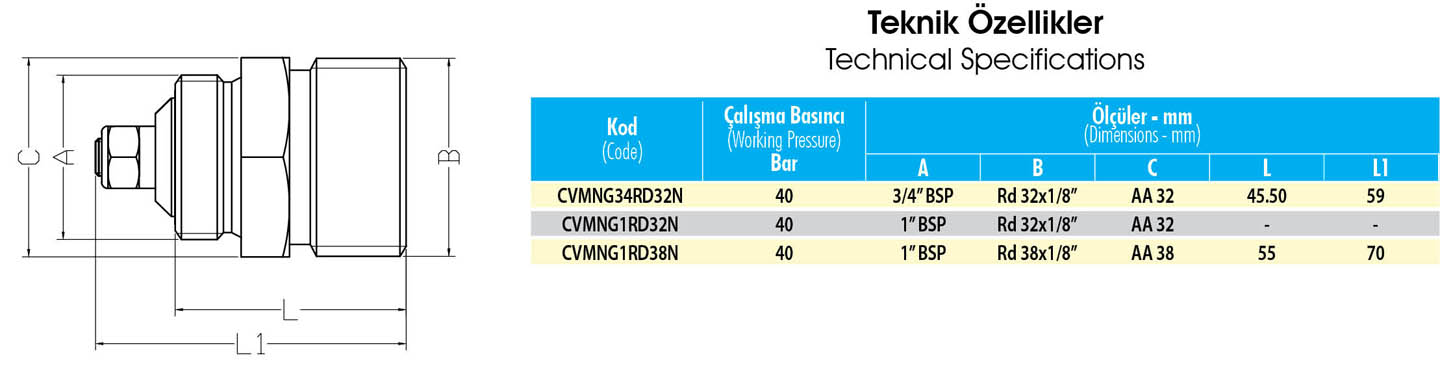

TECHNICAL DATA
PHOTOS
