BV3MH Series Hydraulic 3-Way Ball Valves (with Mounting Holes), 2 different types,
L-Bore and T-Bore, are available. 3-way ball valves are used for applications where one input is directed to two other outputs, and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent
cavitation. BV3MH Series Hydraulic 3-Way Ball Valves (with Mounting Holes) can be
locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated steel and delrin (POM) seated. BV3MH Series Hydraulic
3-Way Ball Valves (with Mounting Holes) are suitable for LPG, CNG and other gas
applications, as well as hydraulic and other industrial fluids. BV3MH Series Hydraulic 3-Way Ball Valves (with Mounting Holes) provide fixation at the application place and easy connection with the help of 2 mounting holes on the body.
| Body Material | Carbon steel |
| Ball Material | Hard chrome coated carbon steel. |
| Thread Size | BSP, NPT |
| Ball Seats | Delrin (POM) |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Request | VITON (-30 °C - +225 °C) |
| Applications | Excavators, plastic injection mould machines, chemical processing plants, cranes, tankers, dump trucks and general hydraulic applications |

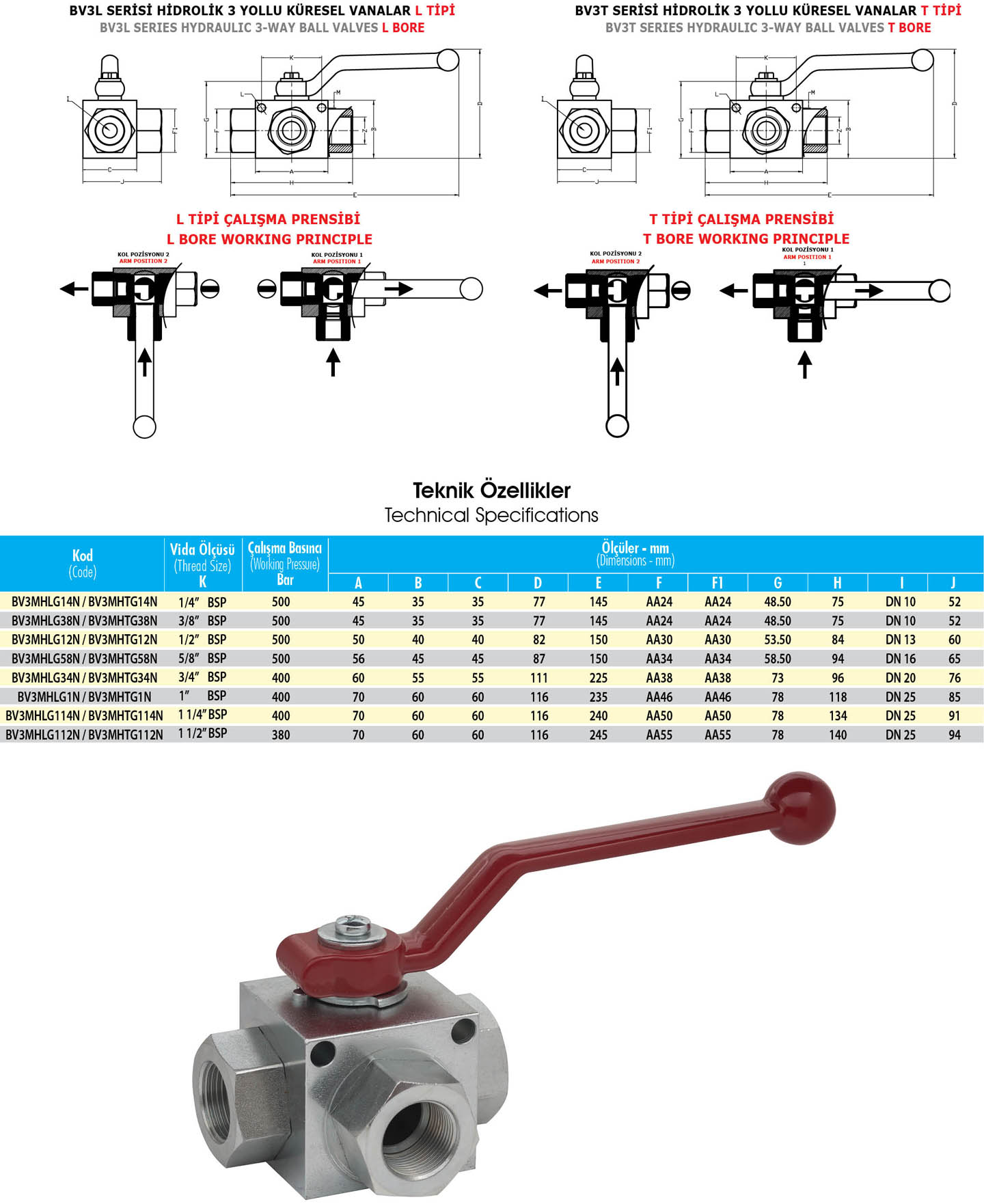

TECHNICAL DATA

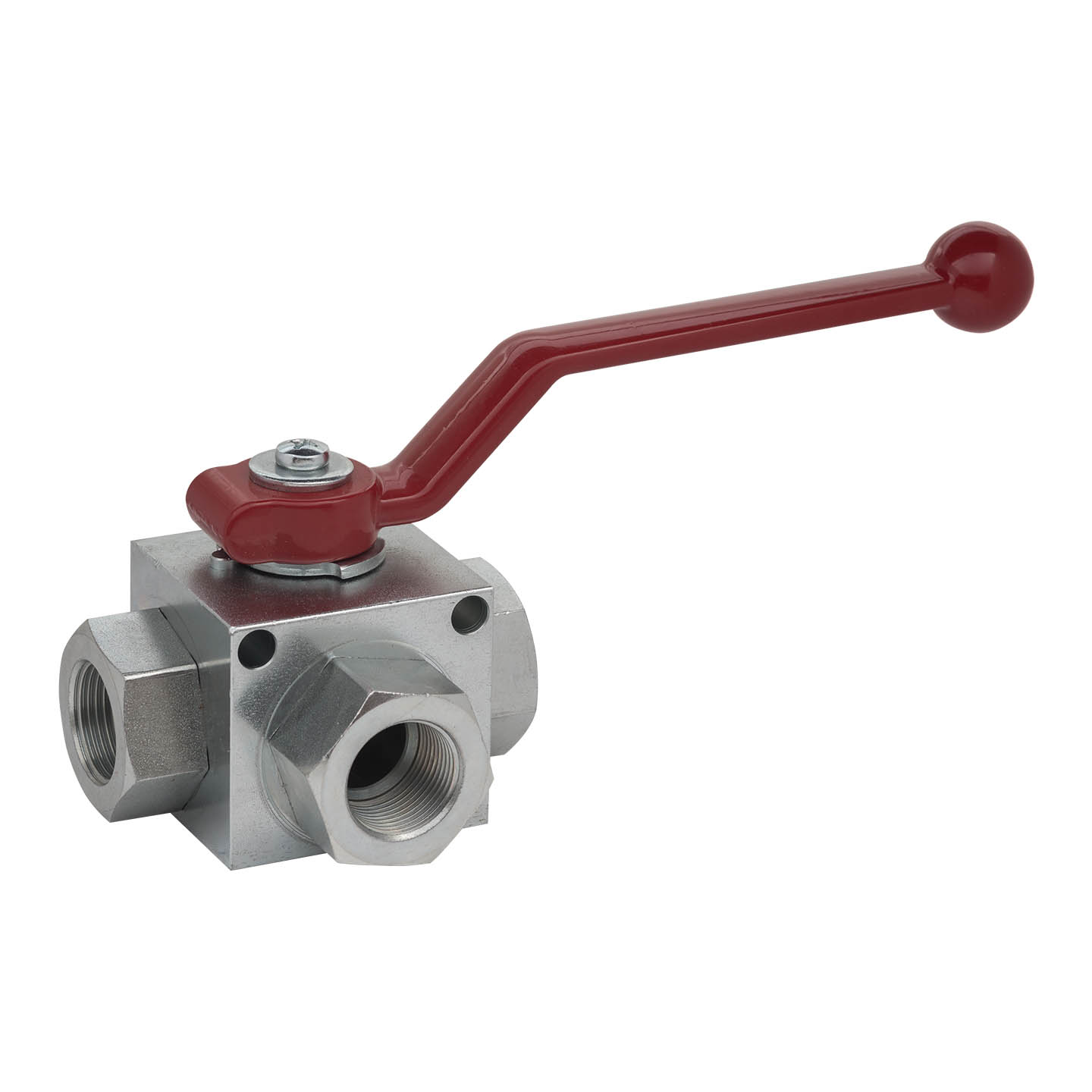

PHOTOS
