BV2MN Series Hydraulic Mining 2 Way Ball Valves are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their
volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV2MN Series Hydraulic Mining 2 Way Ball Valves can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated carbon steel. These ball valves are suitable for mining sector applications
| Body Material | Carbon steel |
| Ball Material | Hard chrome coated carbon steel. |
| Connection Type | DIN 20043 |
| Ball Seats | Special sealing equipments |
| Sealing | Nitrile O-ring (NBR) |
| Working Temperature | -30 °C and +110 °C |
| Plating | Zinc Plating (Cr III Passivation) |
| Upon Request | VITON (-30 °C - +225 °C) |
| Applications | For mining sector applications |

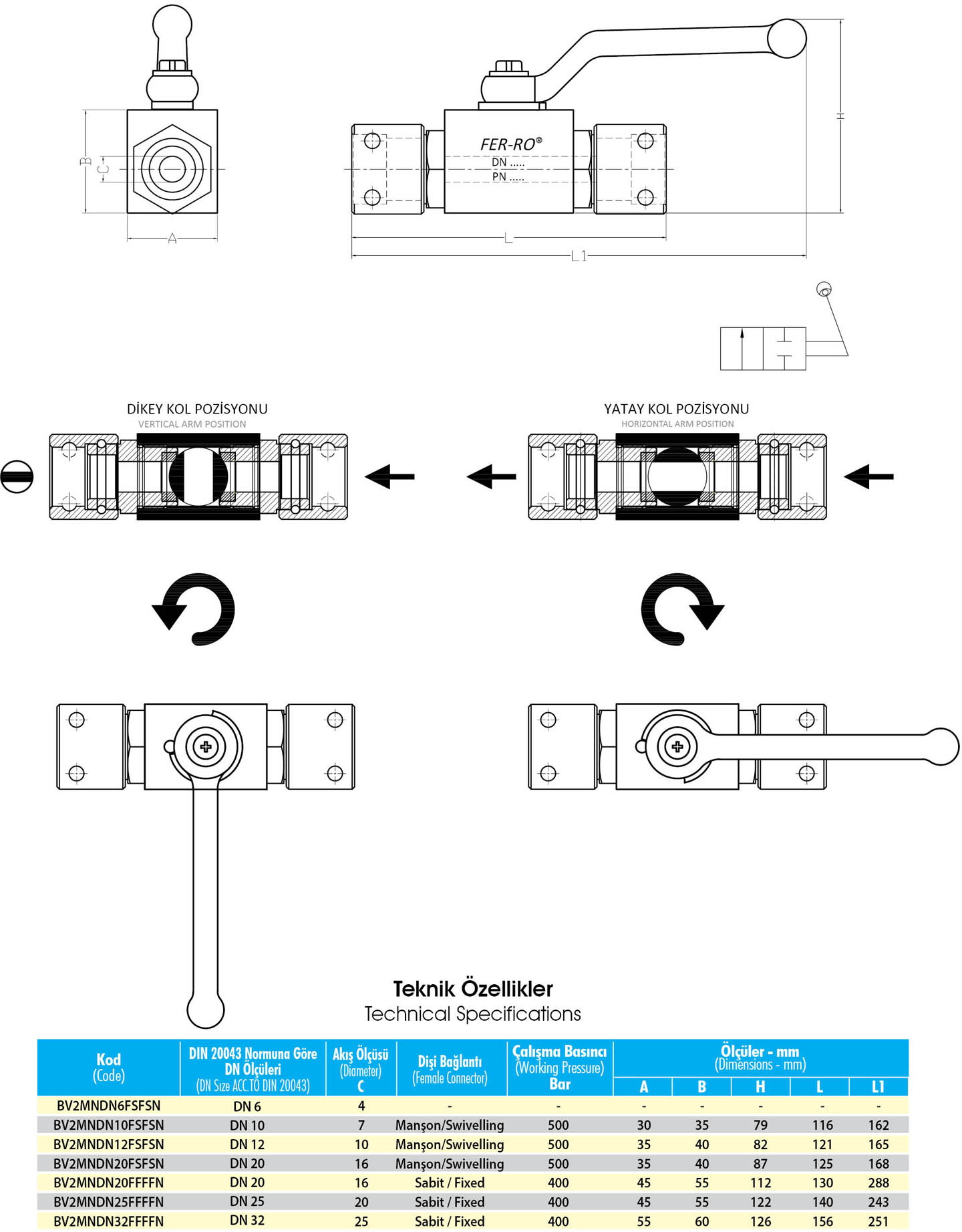

TECHNICAL DATA
PHOTOS
