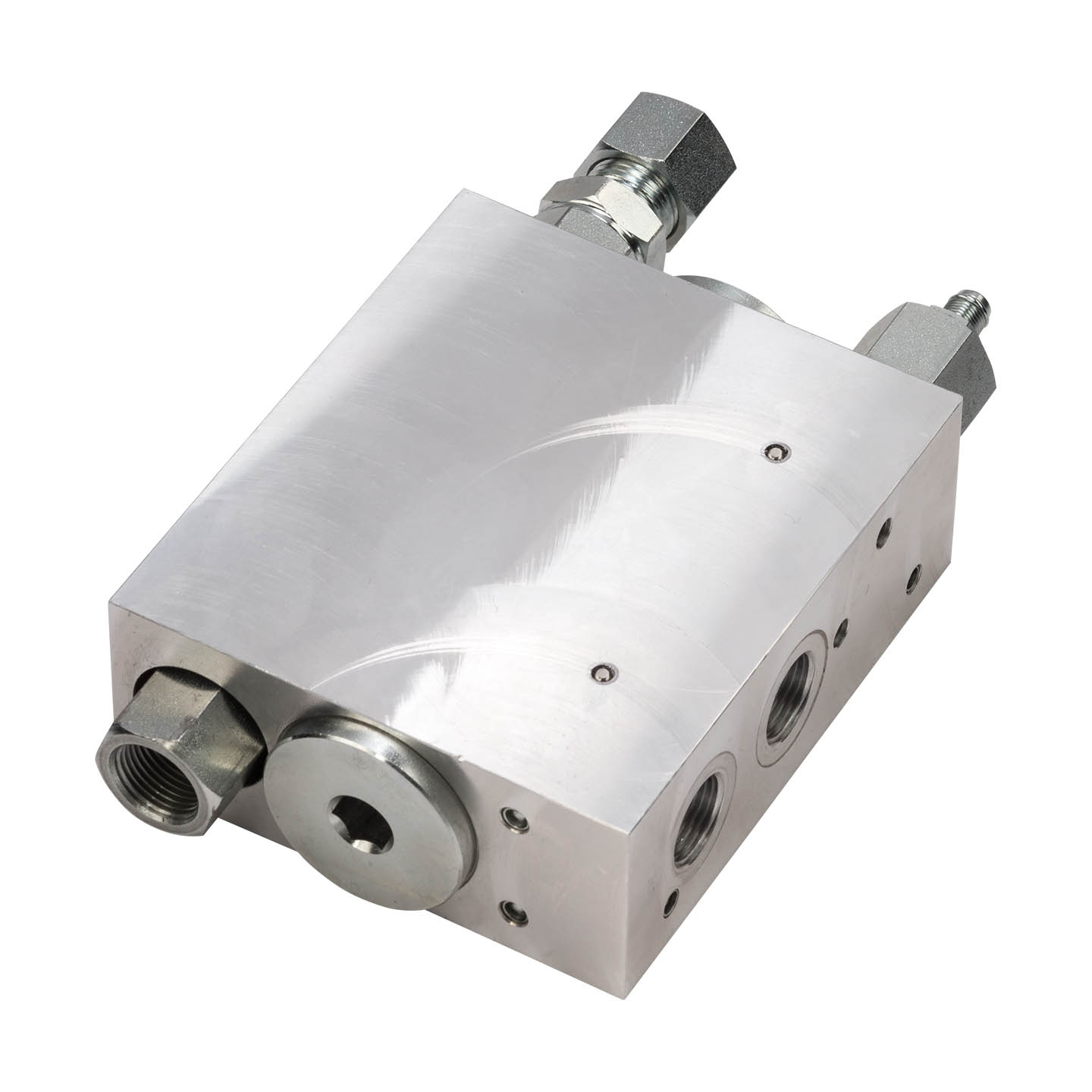

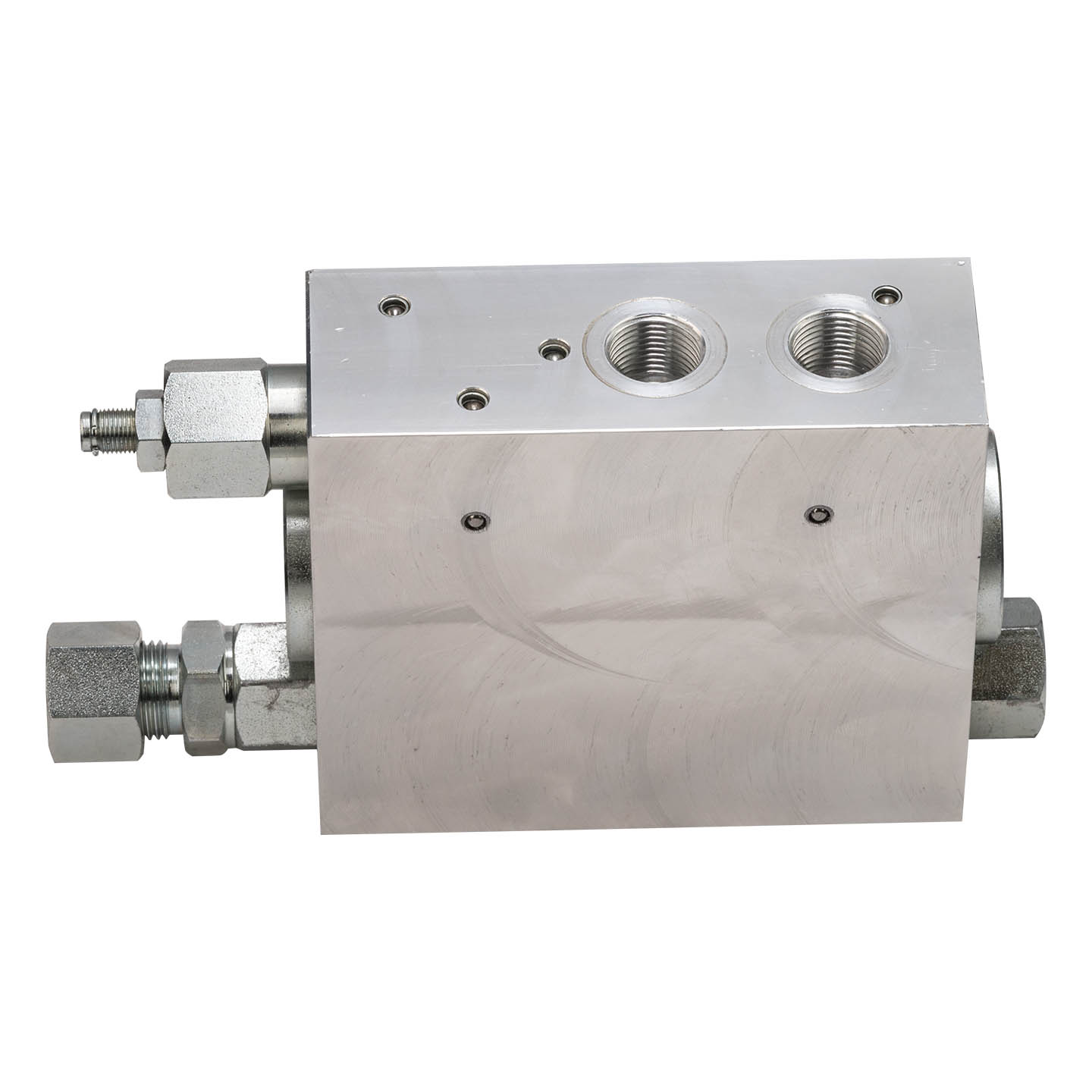

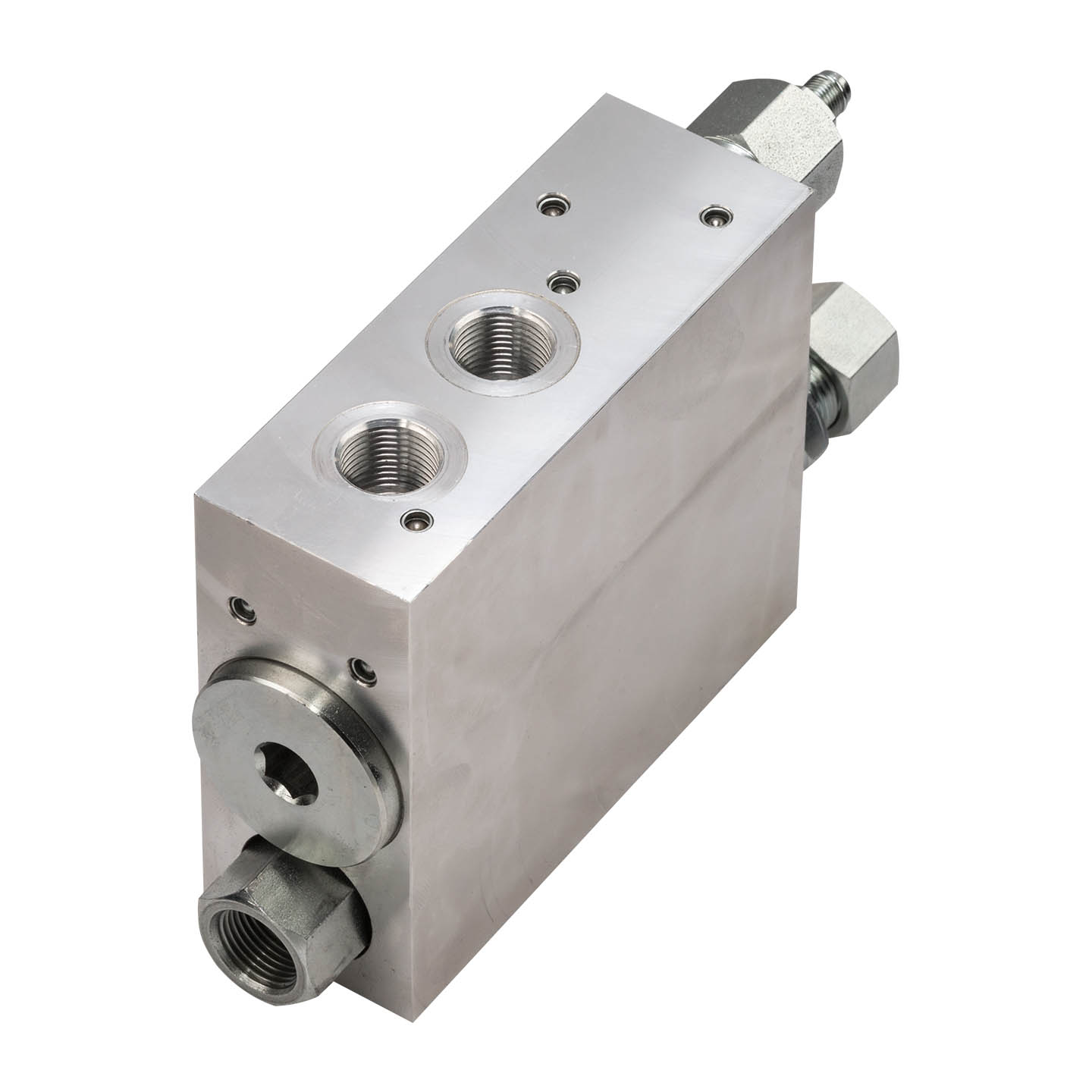

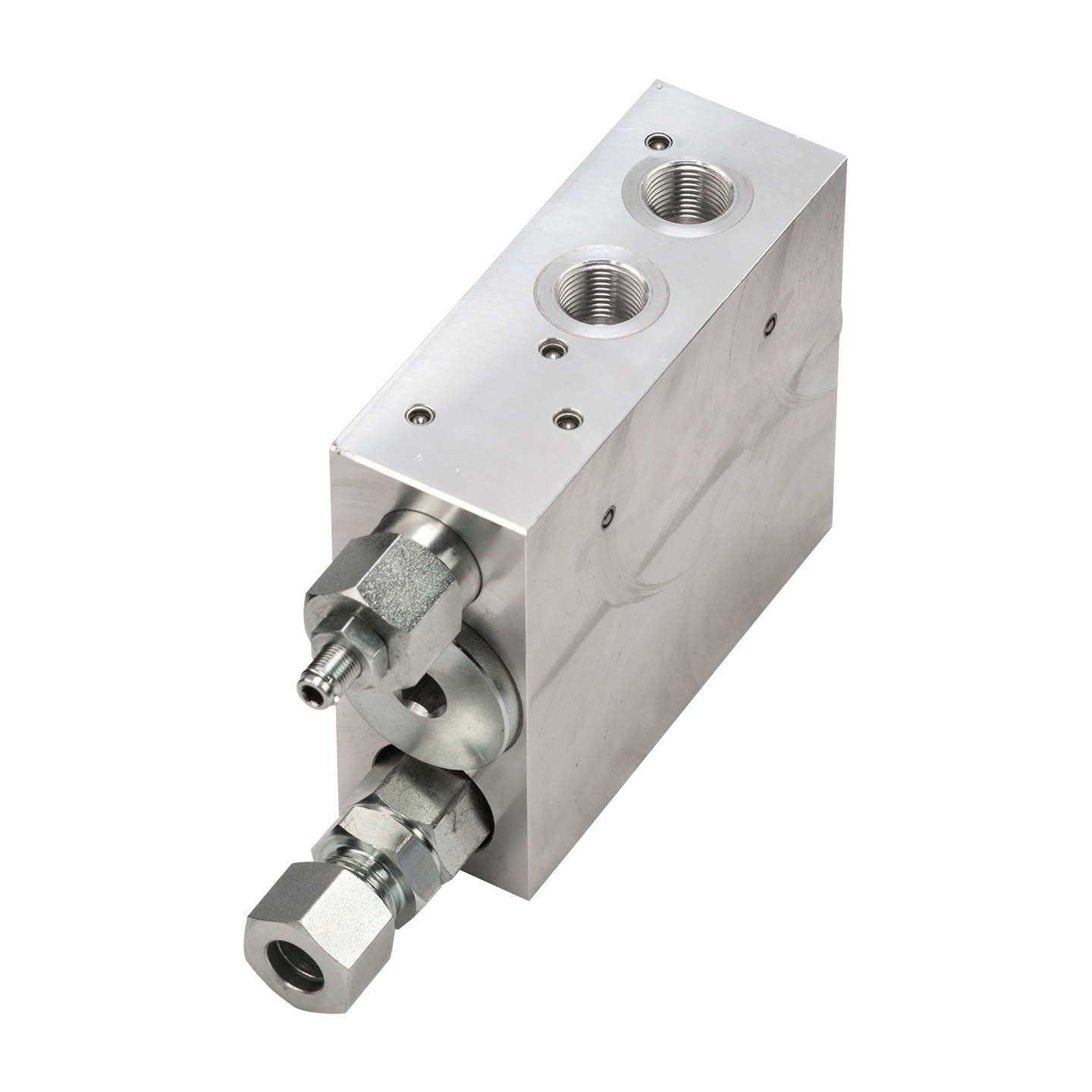

POV SERIES PLOUGH OVERTURNING VALVES

POV Series Plough Overturning Valves, a valve designed for use in cylinders to automatically reverse the motion of the hydraulic cylinder that can rotate the plow. There is a double pilot operated check valve that provides more security and allows positioning and locking the cylinder at any point. The valves are fed with a change pressure of approximately 150 Bar. It uses it extensively in the field of agriculture.

Material  Aluminium
Thread Size  BSP
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Agricultural Applications

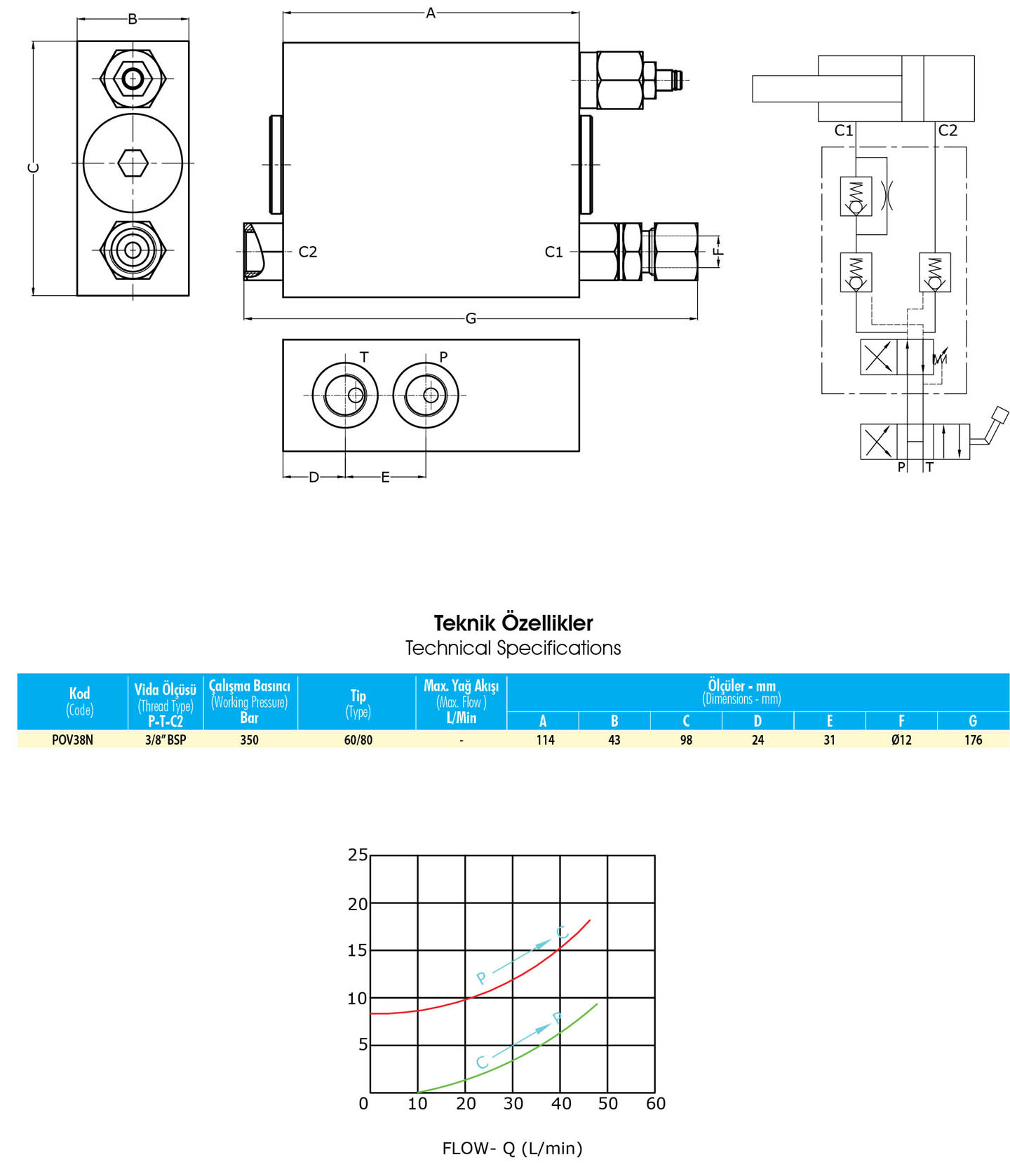

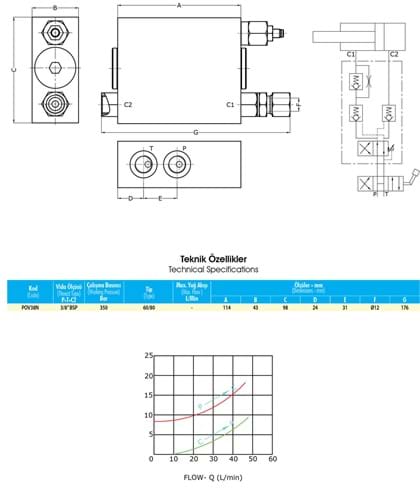

TECHNICAL DATA
PHOTOS
