MPR SERIES NG06 MODULAR PRESSURE RELIEF VALVES (DOUBLE)

NG06 Modular Pressure Relıef Valves play a role in hydraulic systems as part of the control system.
When the system is overloaded, the modular pressure relief valve opens and allow to discharge of excess hydraulic oil from the pump to the tank.
The pressure in the system remains at the specified level with the support of the NG06 modular pressure relief valve.
NG06 Modular Pressure Relief Valves are used to limit pressure in hydraulic circuits.

Material  Aluminium
Connection Type  NG06 Connection
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

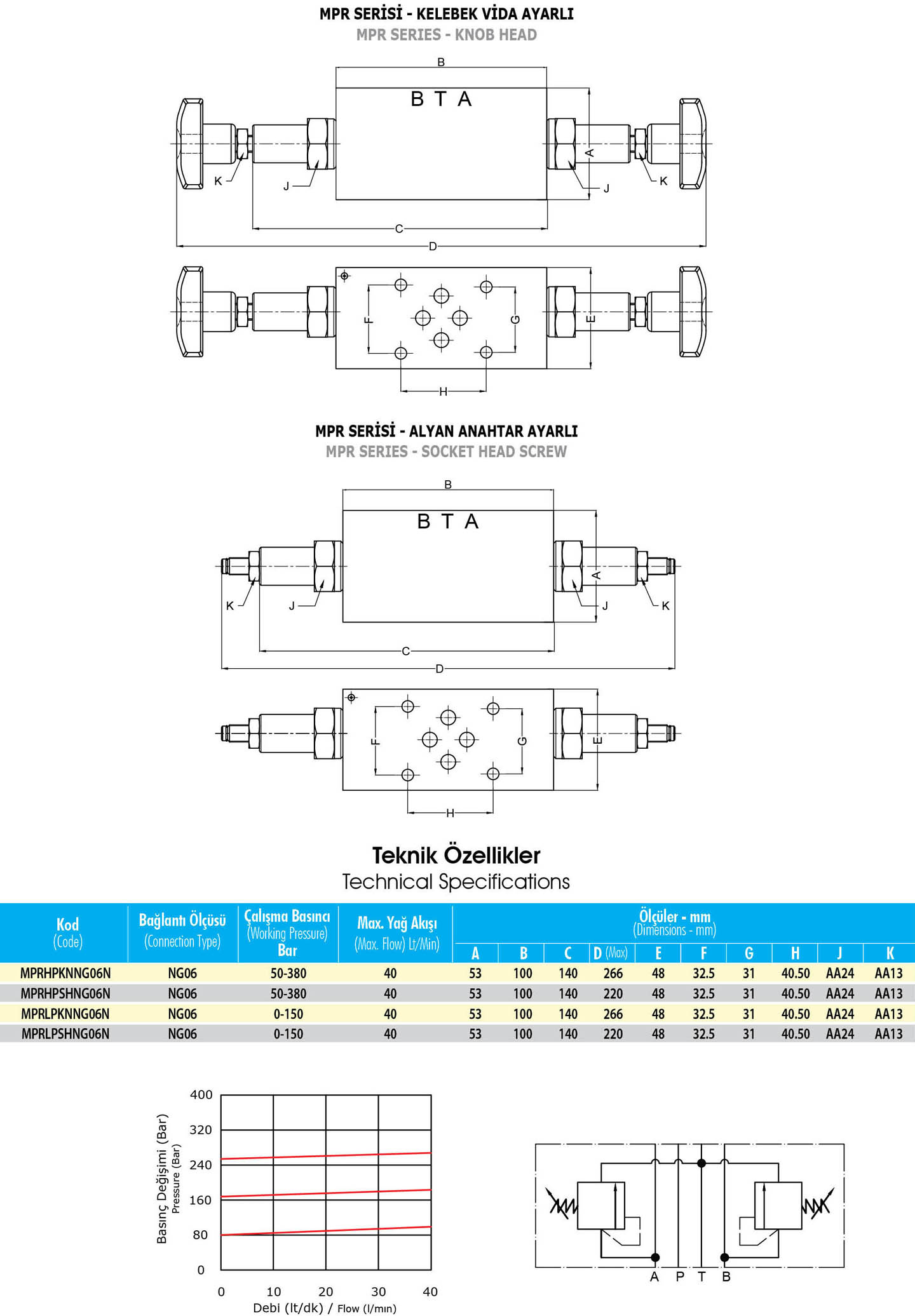

TECHNICAL DATA

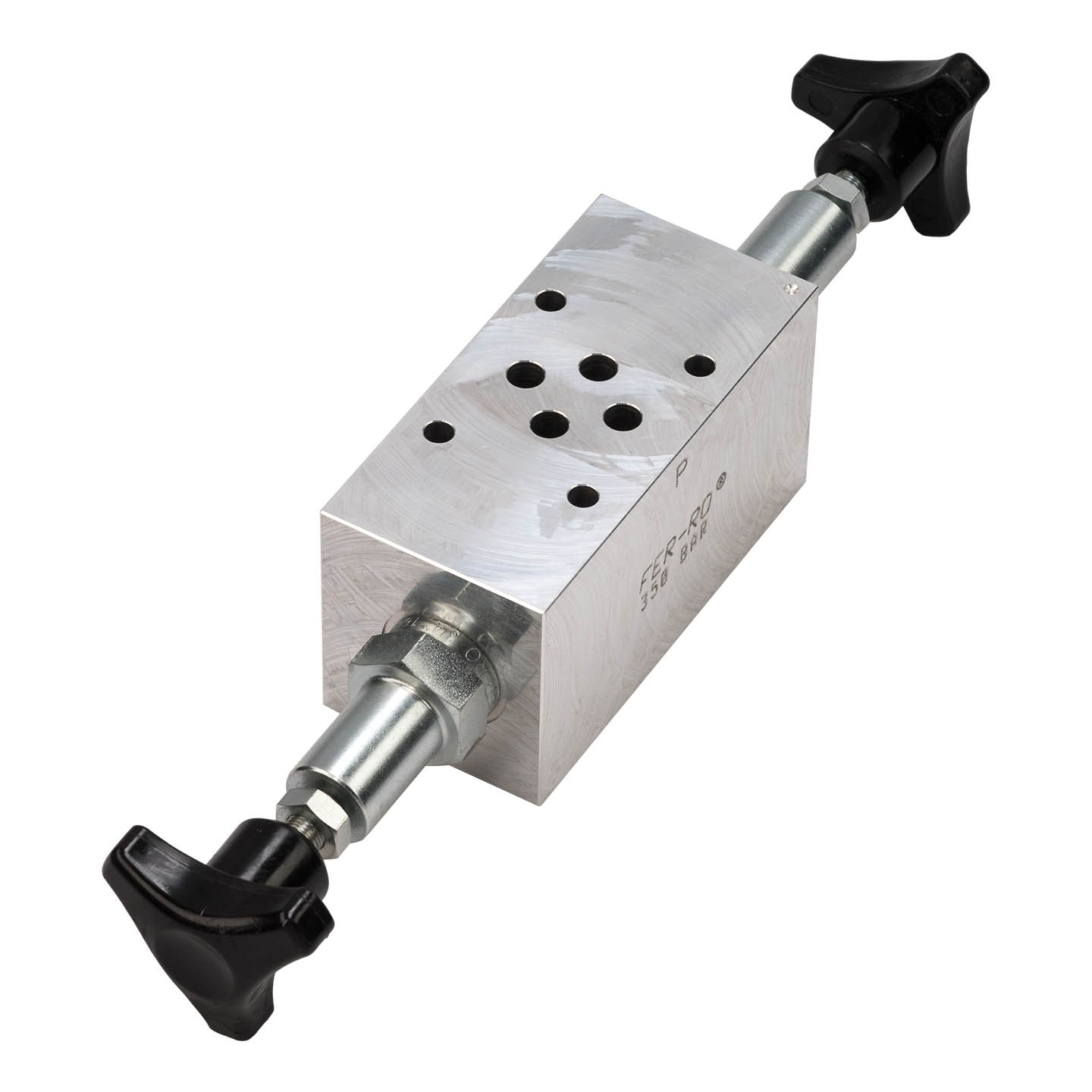

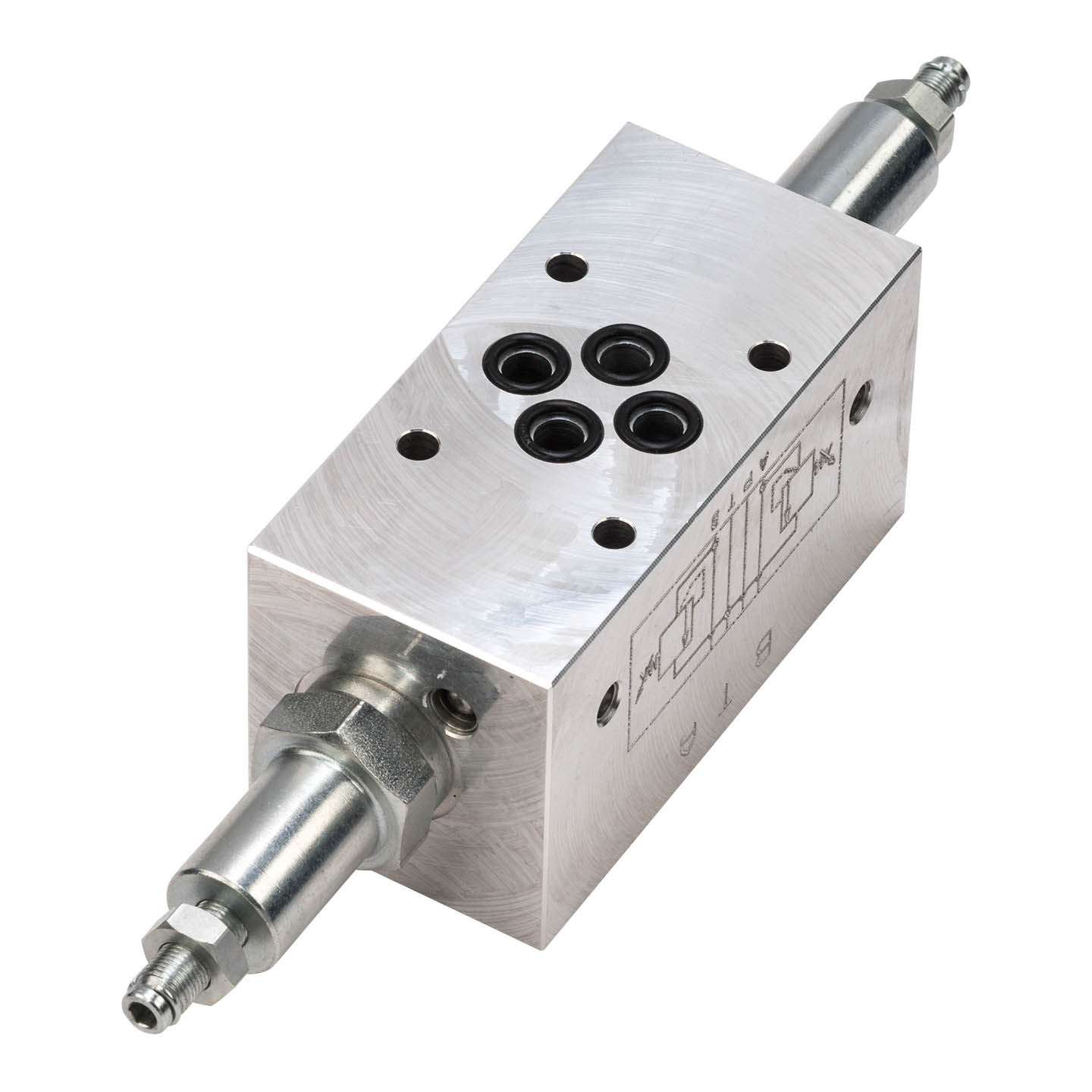

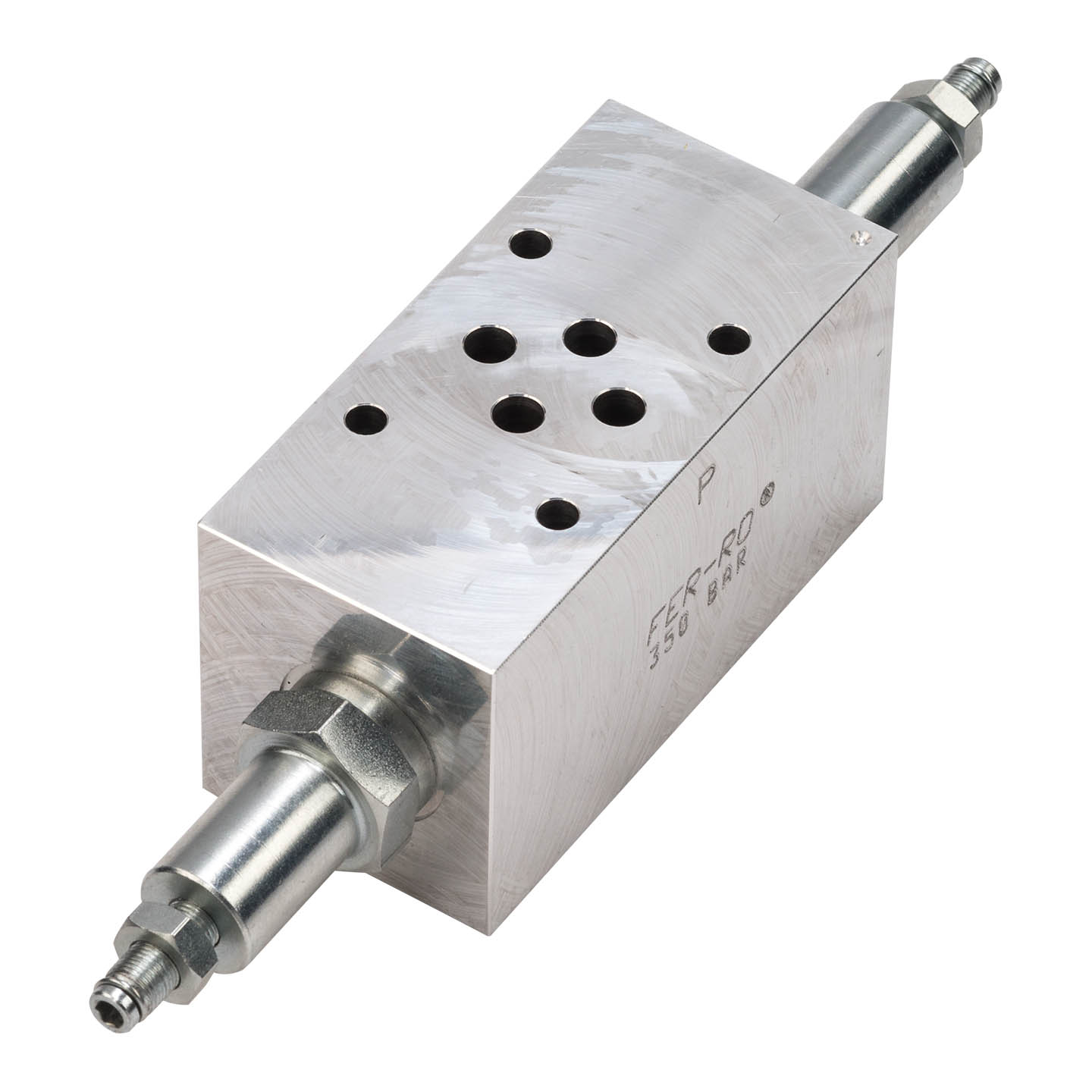

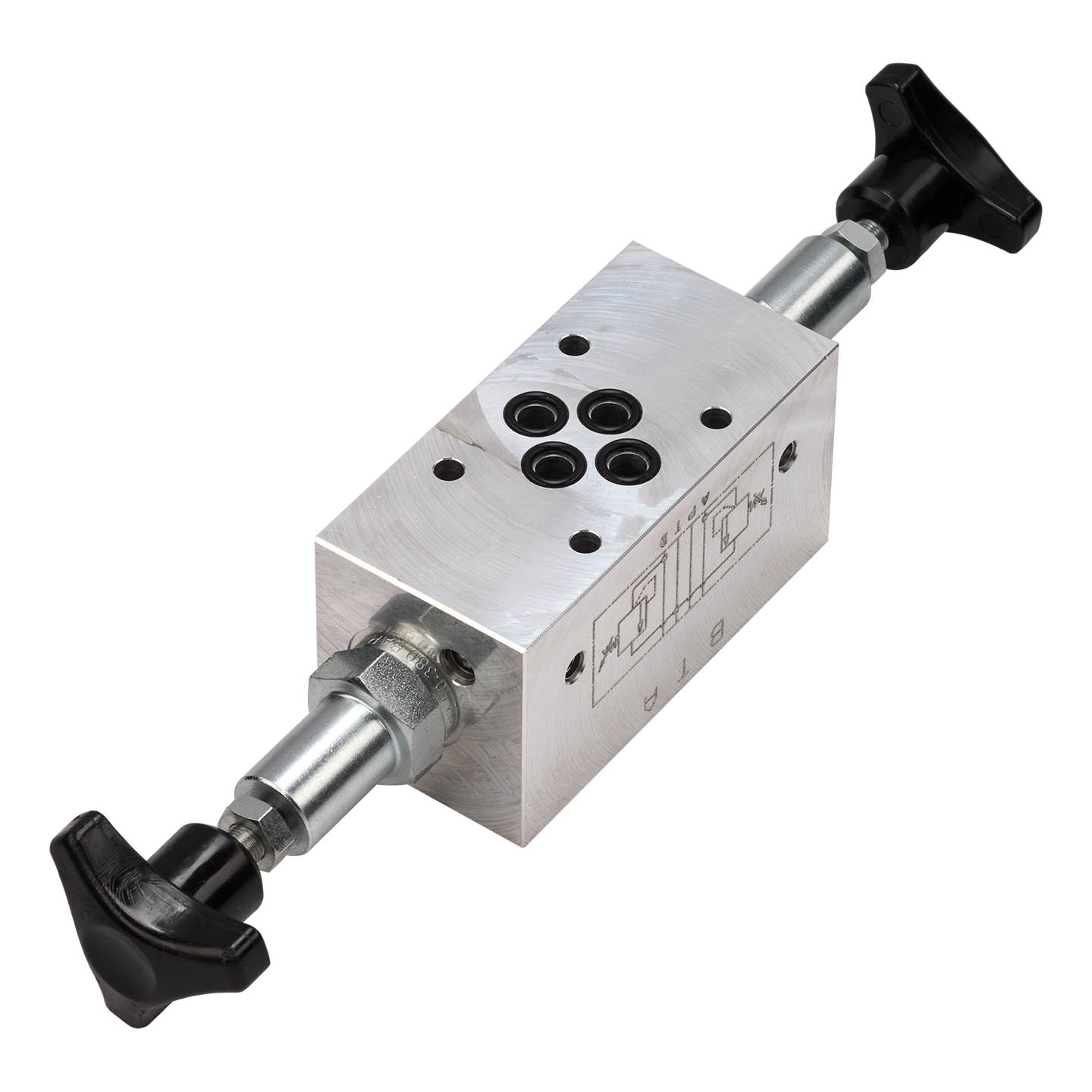

PHOTOS
