MPRD SERIES NG06 MODULAR TYPE PRESSURE REDUCER VALVE

NG06 Modular Type Pressure Reducer Valve (Cartridge Type) helps to achieve lower pressures in different parts of hydraulic systems. It allows you to reduce the
pressure on the line while keeping the pressure on the pump constant.
NG06 Modular Type Pressure Reducer Valve (Cartridge Type) allows the lower line connected to the main pump line to operate at lower pressure. These valves have pilot-operated working principle.

Material  Aluminium
Connection Type  NG06 Connection
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Heat Treatment Internal parts
Applications General Hydraulic Applications

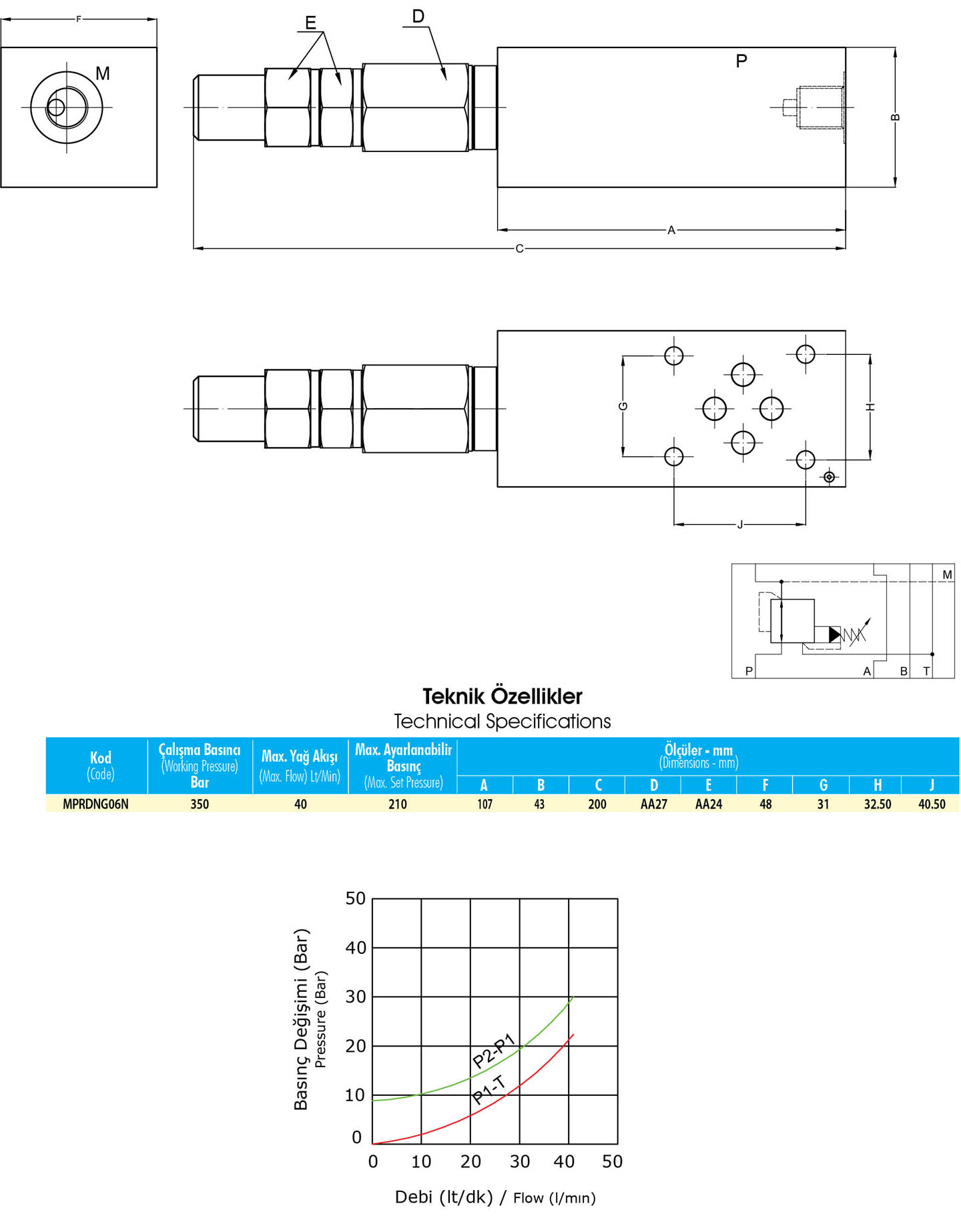

TECHNICAL DATA

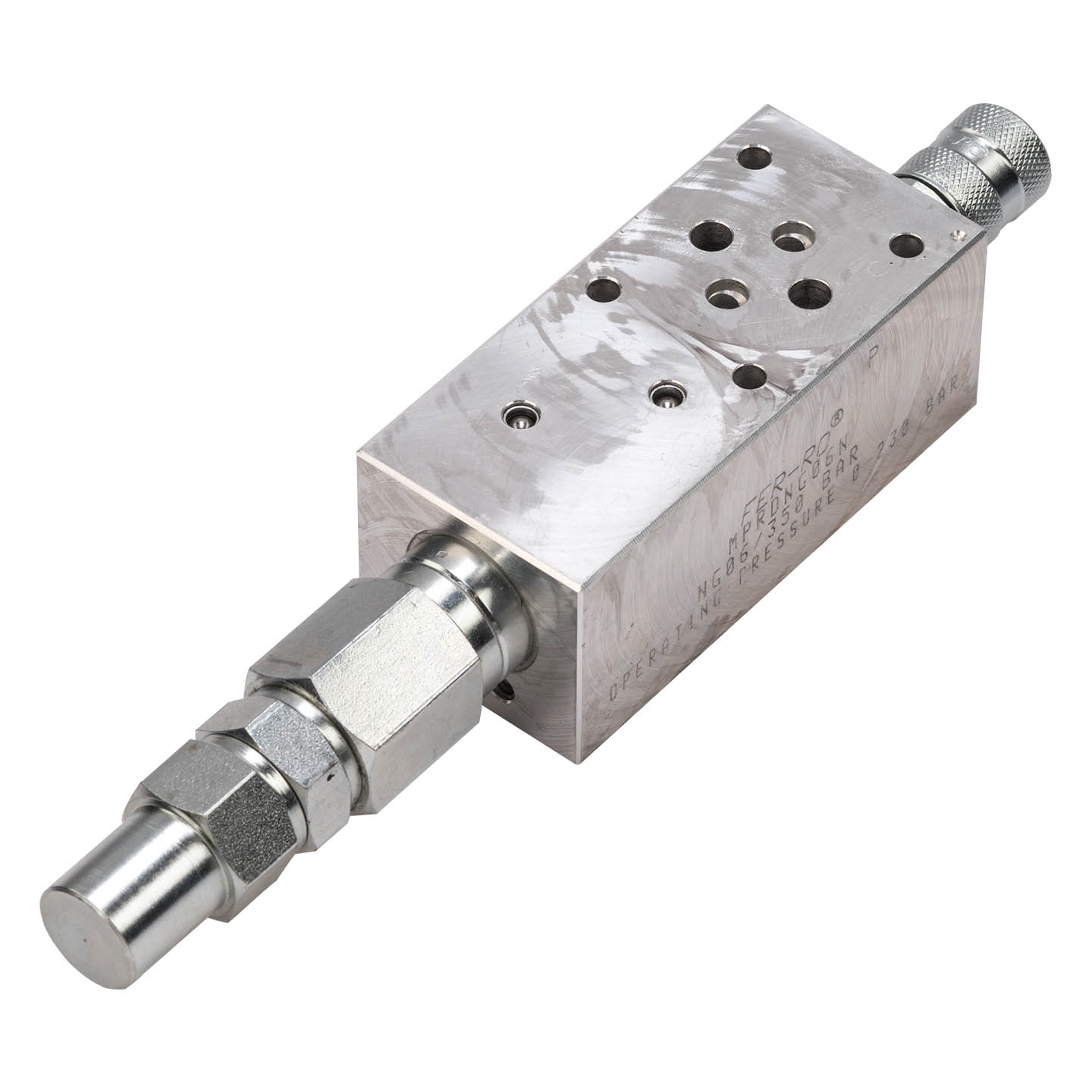

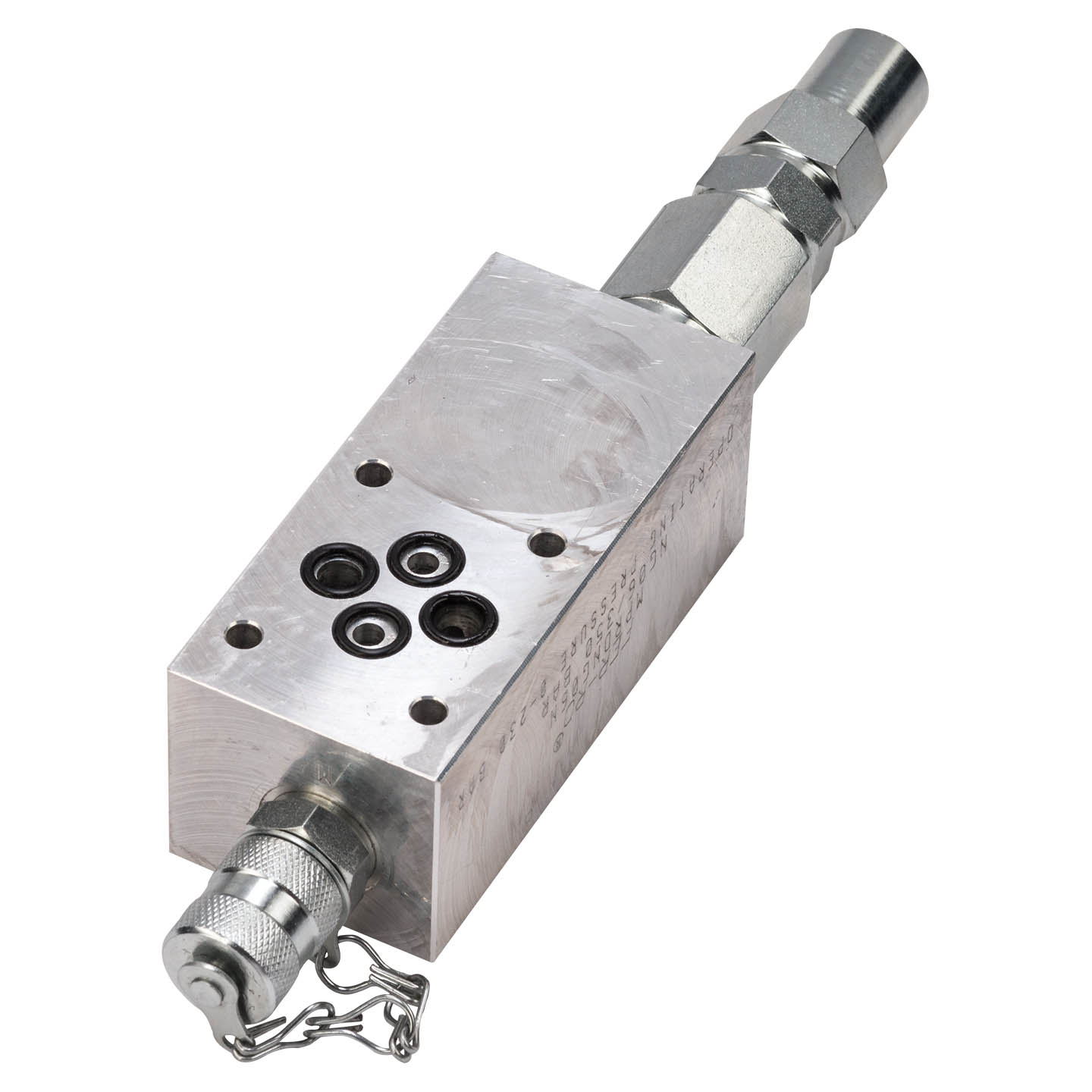

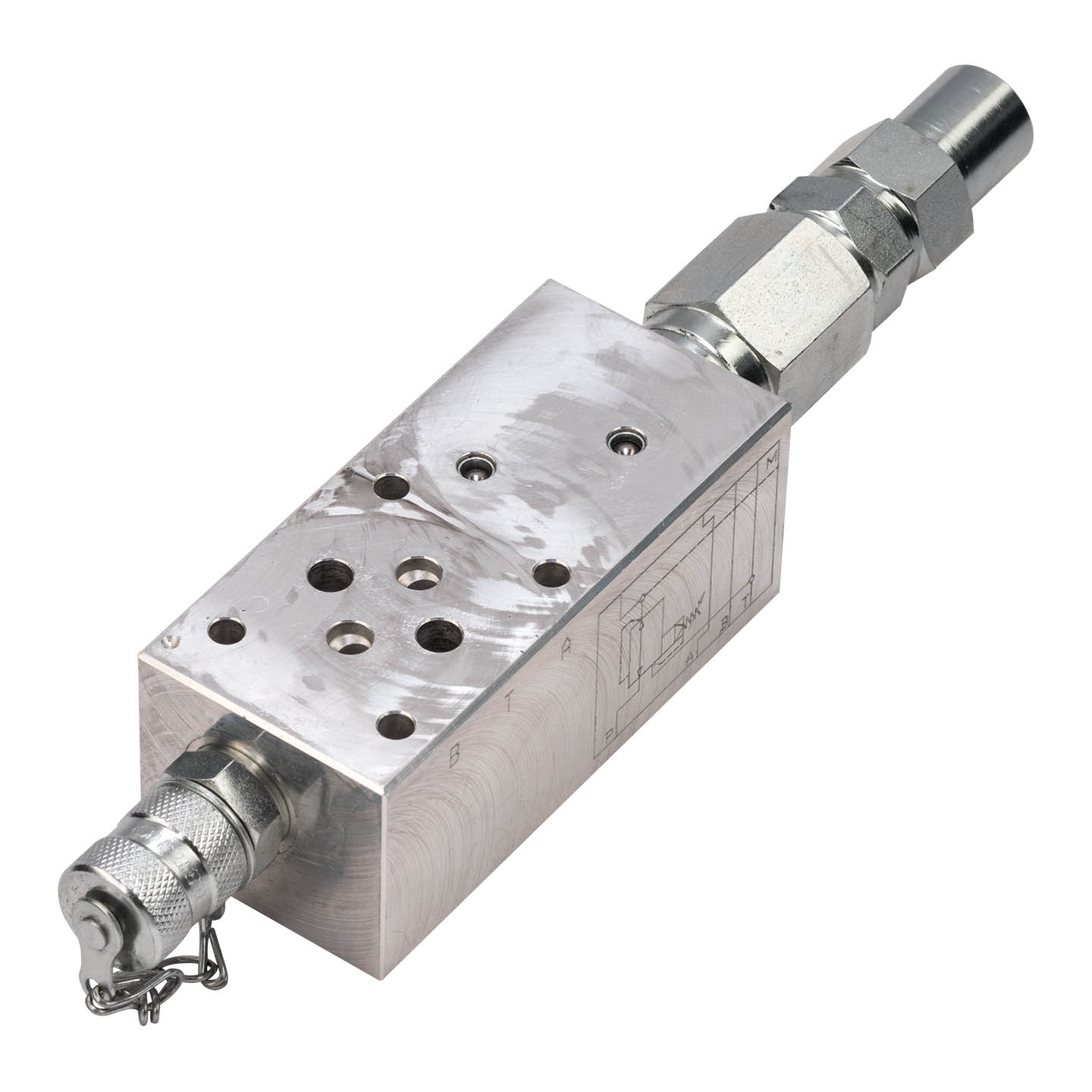

PHOTOS
