BV2FBAWMN SERIES 2-WAY FULL BORE MINING BALL VALVES (WATER & AIR APPLICATIONS) (BSP-Rd)

BV2FBAWMN Series 2-Way Full Bore Mining Ball Valves (Water & Air Applications) are used to either shut-off or open of flow passage and their easy operation provides unrestricted flow. Due to their volumetric structure they work rapidly and efficiently, and prevent cavitation.
BV2FBAWMN Series 2-Way Full Bore Mining Ball Valves (Water & Air Applications) can be locked in the open or closed position through locking washer on the circle pin. Internal ball is hard chrome coated brass.
BV2FBAWMN Series 2-Way Full Bore Mining Ball Valves (Water & Air Applications) are suitable for water and air applications in mining sector.

Body Material Carbon steel
Ball Material  Hard chrome coated brass
Thread Size BSP – Rd (Round Thread)
Ball Seats Special sealing equipments
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Applications Mining sector applications including water and air lines references

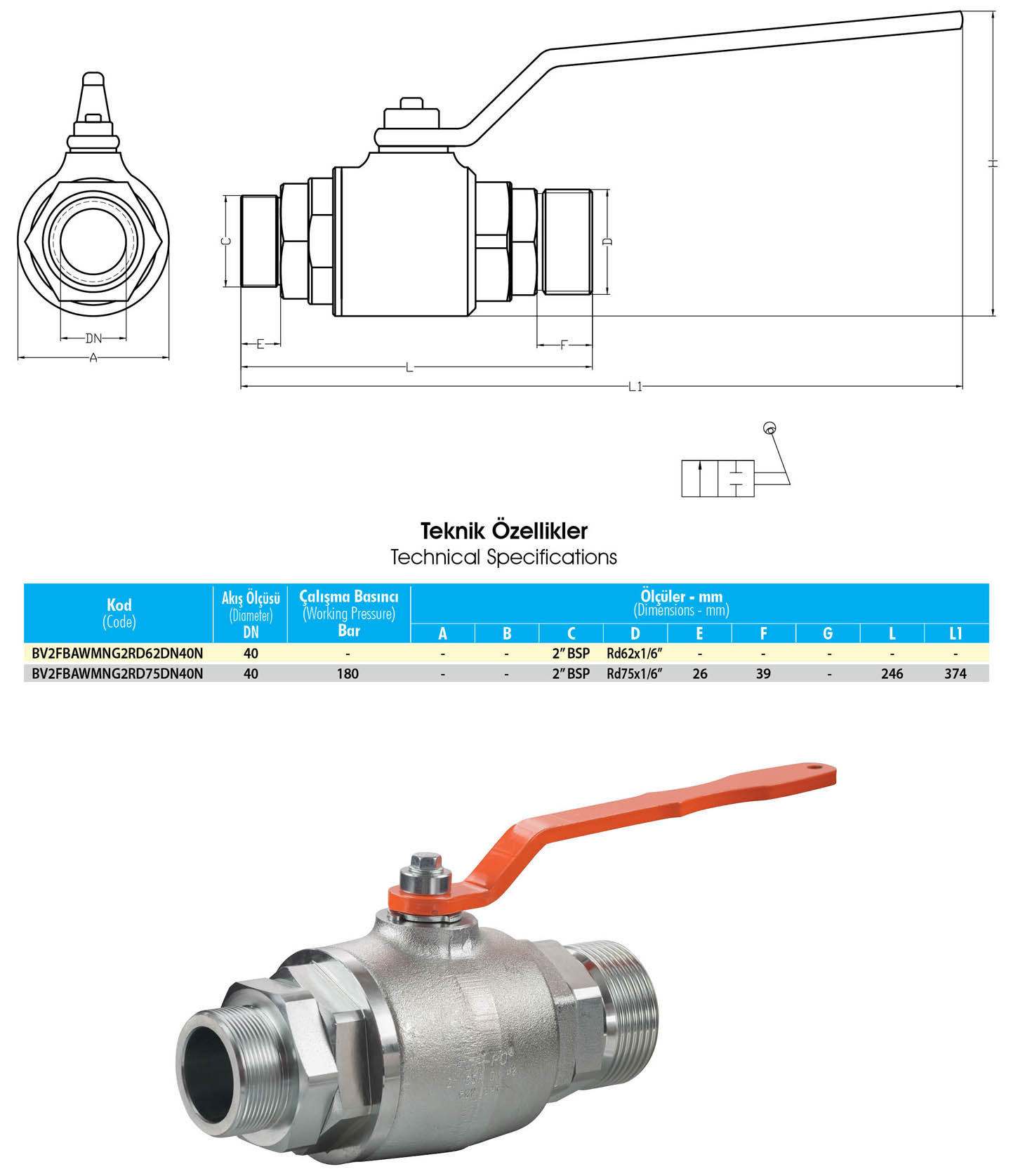

TECHNICAL DATA

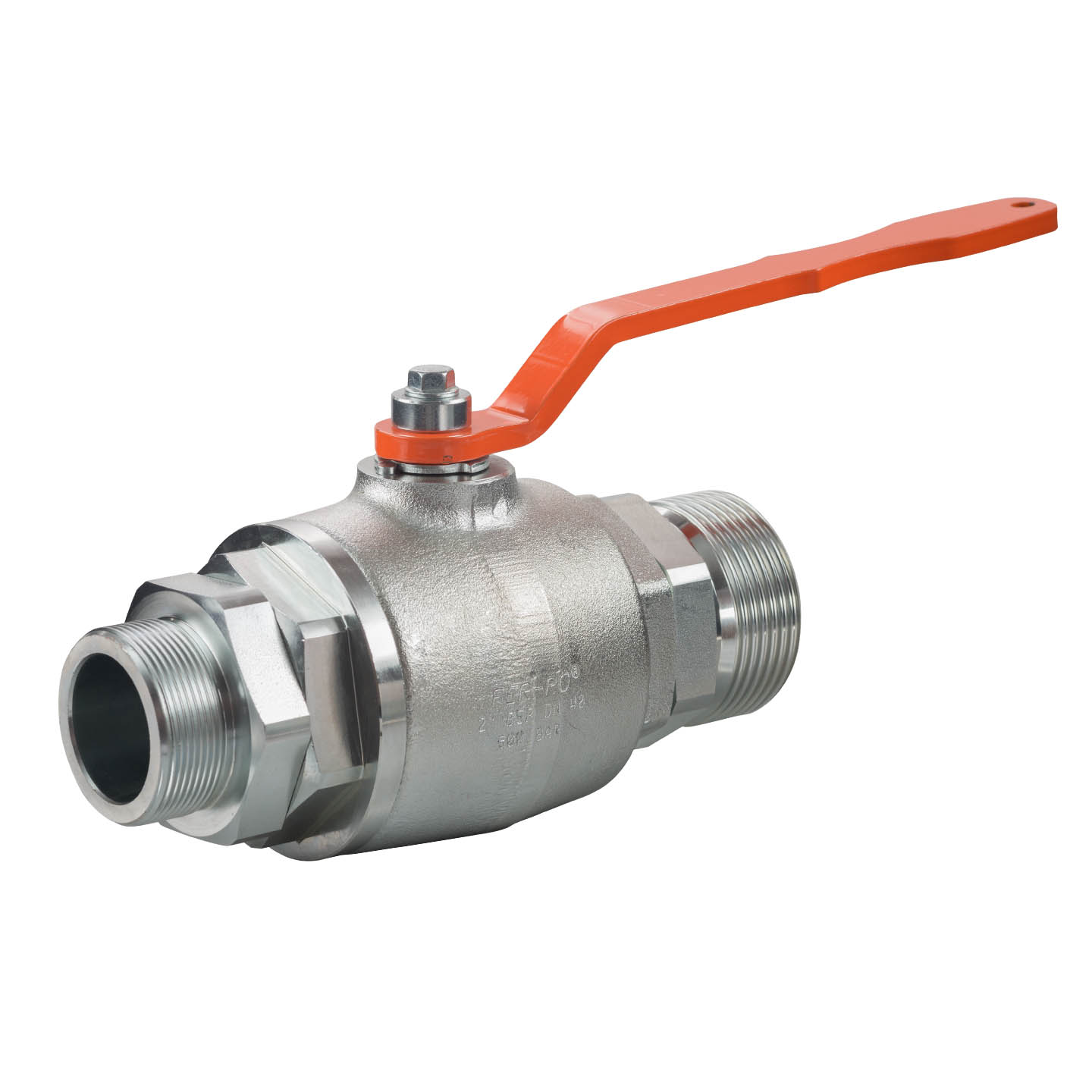

PHOTOS
