MCFFDPH SERIES HYDRAULIC DISCONNECT UNDER PRESSURE FLAT FACE HORIZANTAL MULTI COUPLINGS

MCFFDPH Series Hydraulic Disconnect Under Pressure Flat Face Horizantal Multi Couplings allow for easy and fast connection of multiple couplings at once. The lock mechanism prevents unintentional open ing as it ensures that the circuits do not interfere. MCFFDPH Series Hydraulic Disconnect Under Pressure Flat Face Horizantal Multi Couplings allow prevent the entry of harmful particles into the system and with easy cleaning property, as well as providing the opportunity to work without hydraulic loss. MCFFDPH Series Hydraulic Disconnect Under Pressure Flat Face Horizantal Multi Couplings allow, which are mounted under hydraulic pressure, provide the opportunity to be fitted back to the female adapter by overcoming the pressure remaining in the system when the male end is removed while under pressure.

Interchangeability ISO 16028
Shut-off System Flat Valve
Material (Body) Aluminium
Material (Quick Couplings) Carbon Steel
Thread Size  BSP (Upon Request: NPT, Metric)
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Plating  Zinc Plating (Cr III Passivation)
Heat Treatment  Male nipple
Connection System  Lever
Disconnection System  Lever
Locking System PIN, CAM
Connection Under Pressure  Allowed Residual
Disconnection Under Pressure Allowed Residual
Upon Request VITON & High temperature resistant special spring
Applications  (-30 °C & +225 °C), Polyurethane (PU)
  Construction, production, national defense, aviation, mobile, hydraulic, chemical, mining

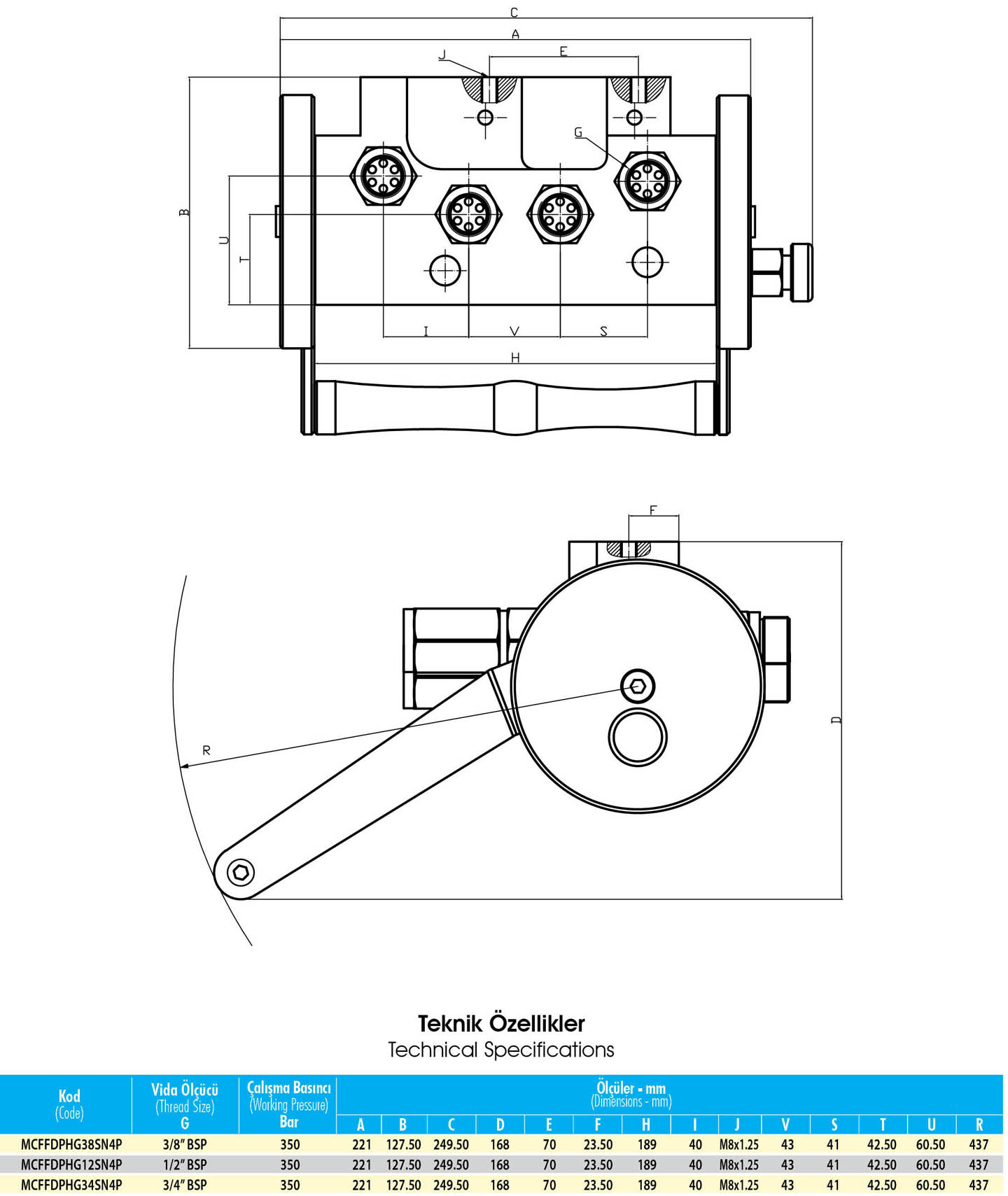

TECHNICAL DATA

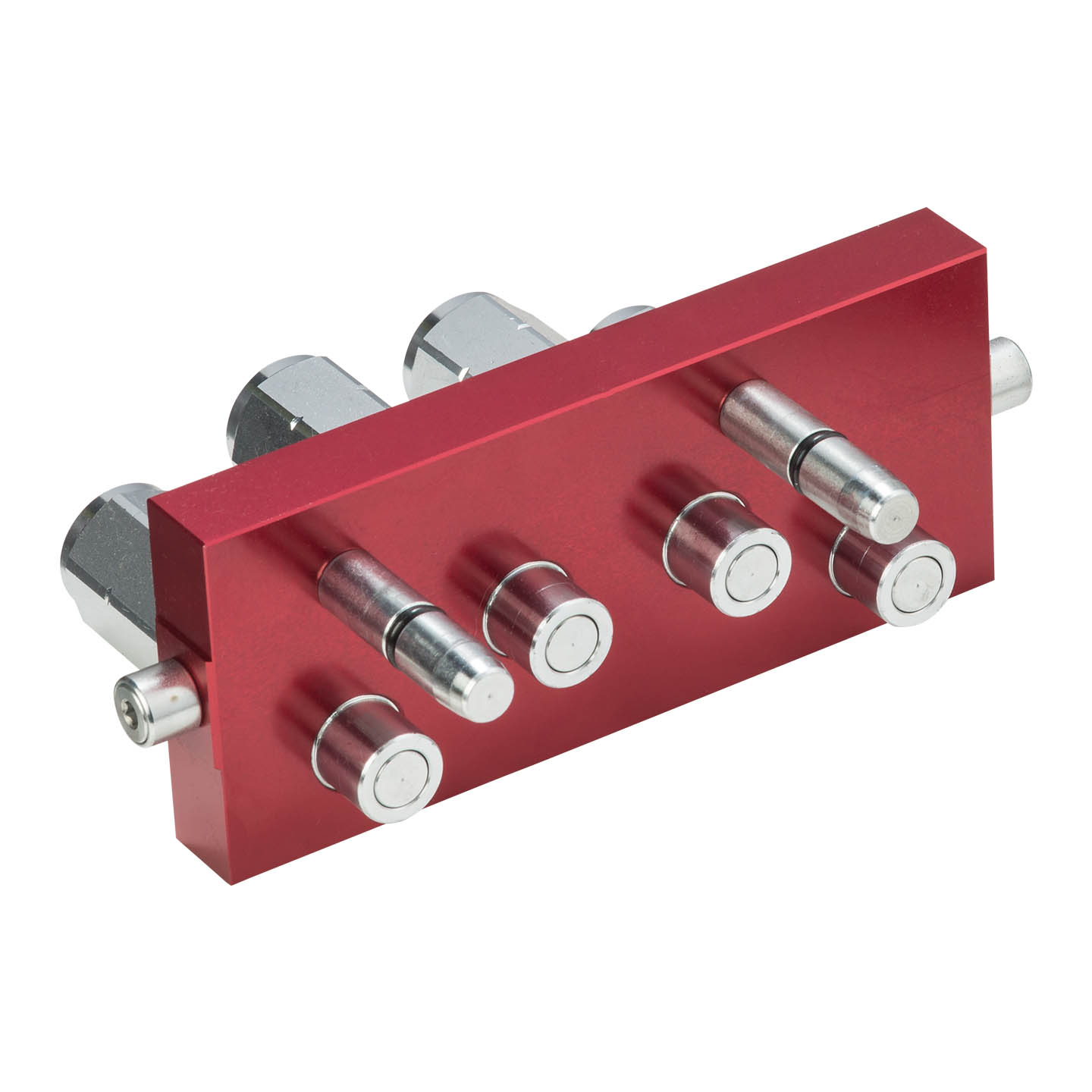

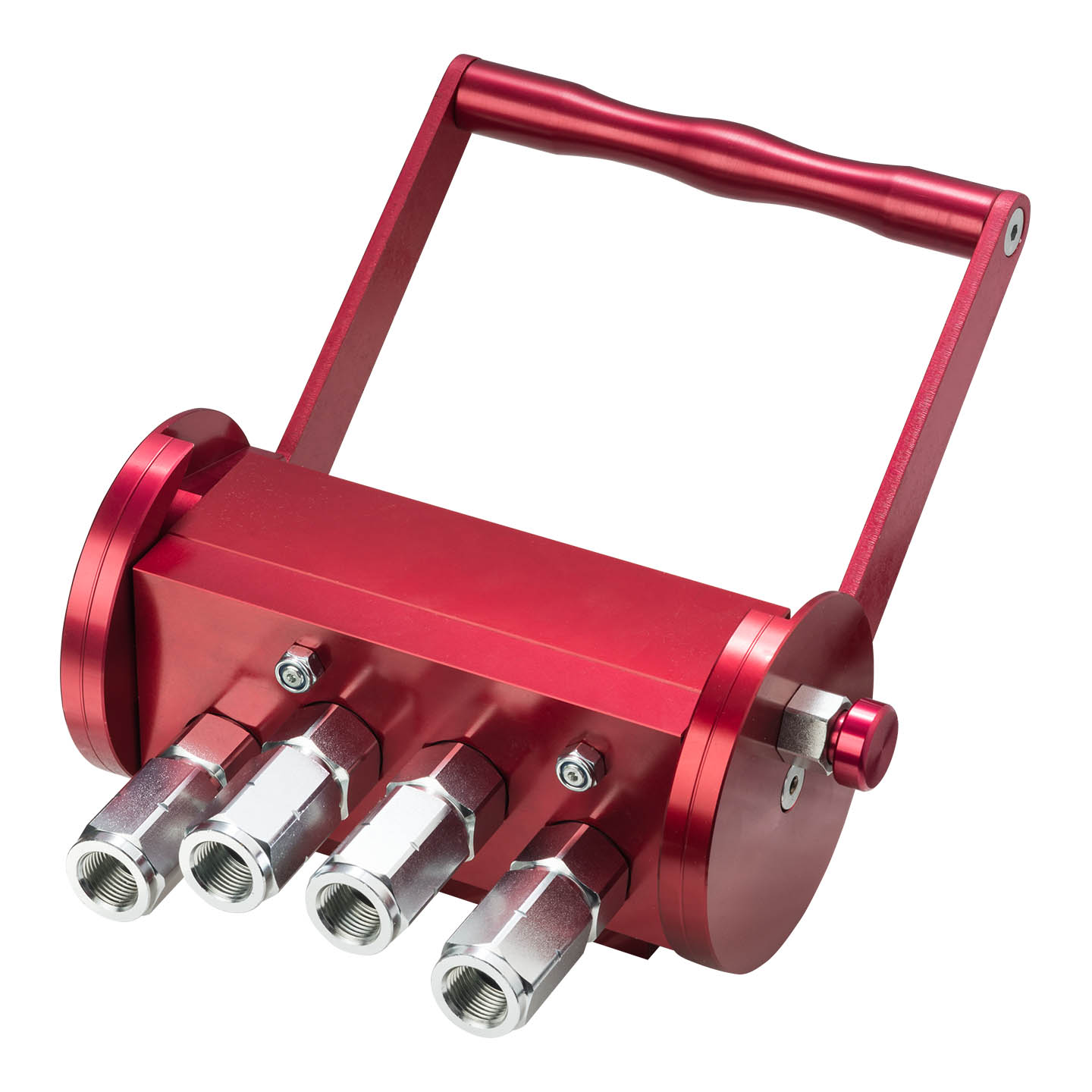

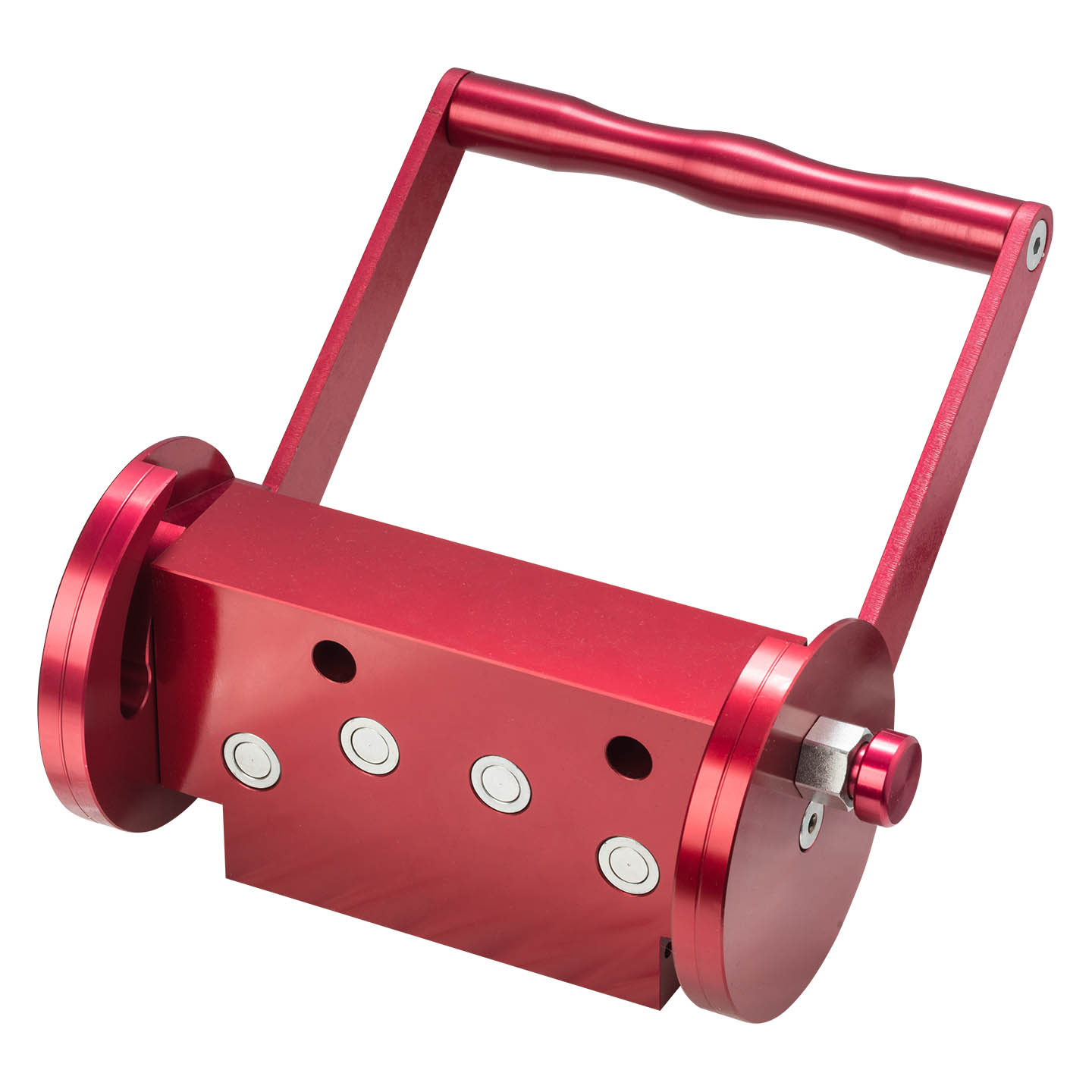

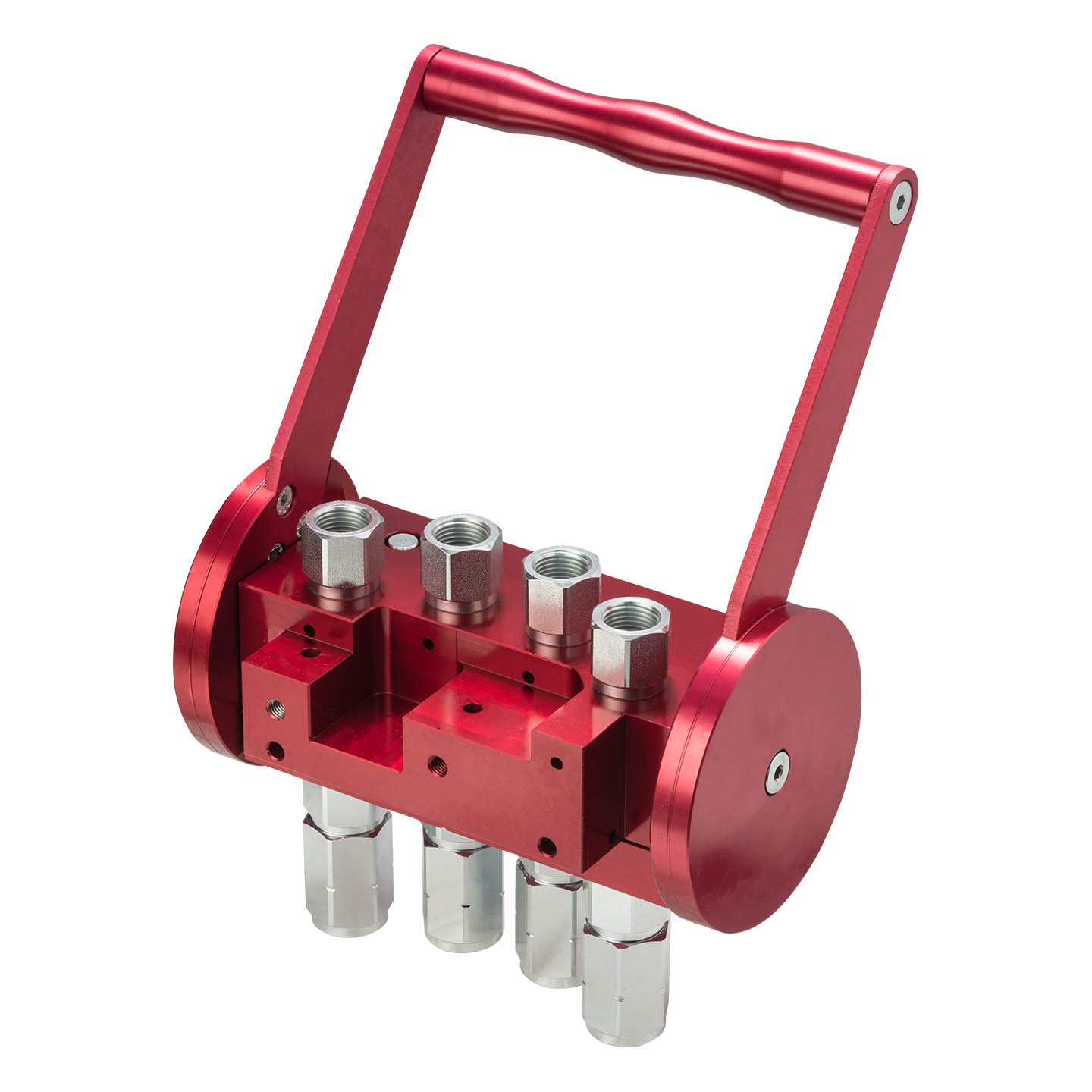

PHOTOS
