FC2WPT SERIES HYDRAULIC PRESSURE SENSITIVE COMPRENSATOR 1 LAP SPEED FLOW CONTROL VALVES (WITHOUT CHECK)

FC2WPSC series Hydraulic pressure sensitive compensator 1 turn speed flow control valves are designed for NG06 connections. It adjusts the speed of the fluid entering port A with the help of the lever and compensates for the steady flow of the fluid to port B tanks to the compensator, allowing the fluid to pass through without being affected by temperature or fluctuations.

Material  Aluminium
Connection Type  NG06
Sealing  Nitrile O-ring (NBR)
Working Temperature -30 °C and +110 °C
Applications General hydraulic applications

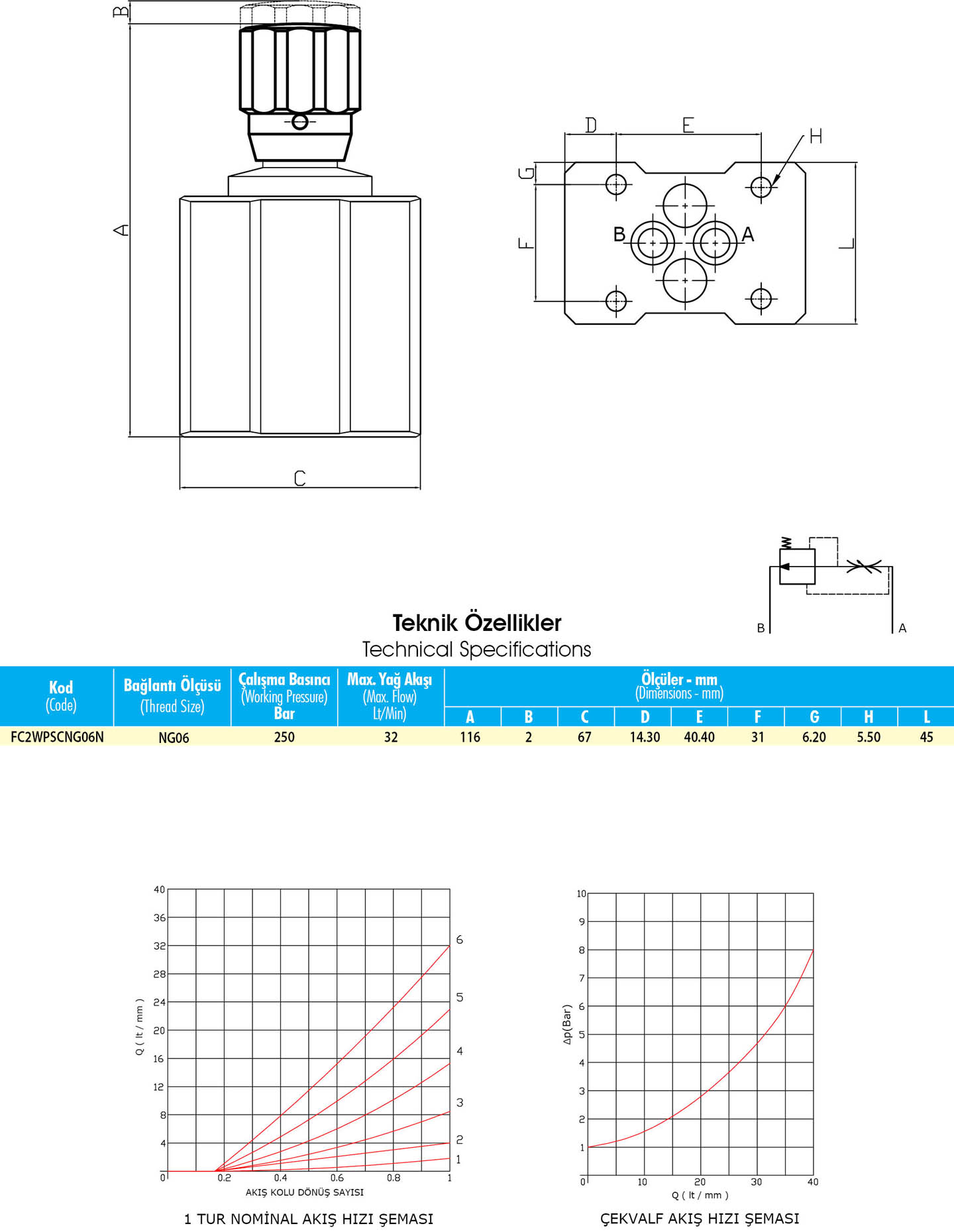

TECHNICAL DATA
PHOTOS
